Makergear M2: Prototype Corner Clips

In the course of normal events around here, the M2 gets tipped to one side or the other. Every time that happens, I rediscover the blindingly obvious fact that there’s nothing holding the glass build plate and the heater to the support spider:

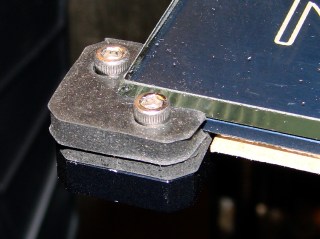

M2 build platform corner
M2 build platform corner

A few minutes with a metric ruler produced some useful dimensions for the ends of the spider’s arms:

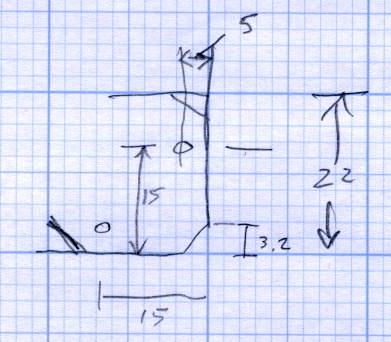

M2 Platform Support Spider Pad Dimensions
M2 Platform Support Spider Pad Dimensions

The Big Box o’ Foamy Things emitted a mouse pad (remember mouse pads?) of exactly the right thickness to bring the corner pads just barely above the level of the glass plate, thus allowing for slight compression:

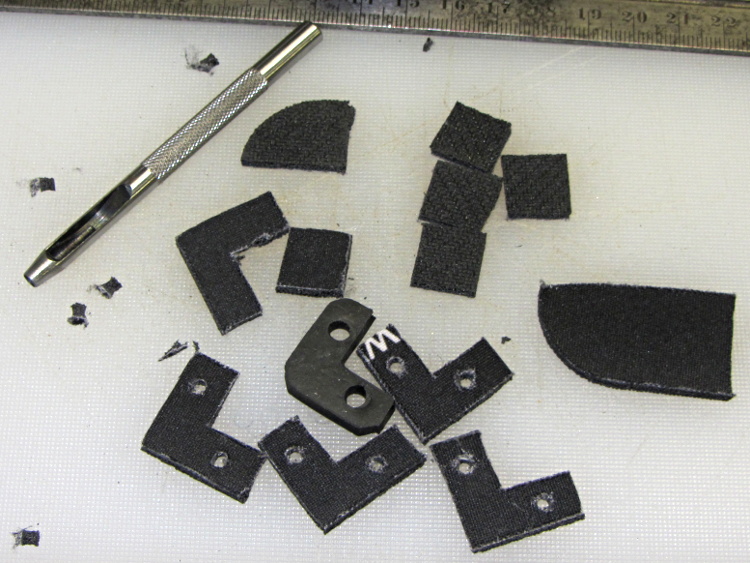

M2 corner bumpers
M2 corner bumpers

That’s a 1/8 inch hole punch, which is close enough to the M3 screw diameter in foam rubber. It worked fine for the balls in the corner support pads, too.

The long-suffering shop scissors produced results about as pretty as one might expect:

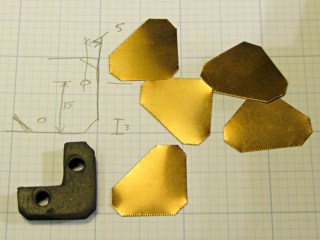

img_3157 - M2 platform retaining clips - raw cut
img_3157 – M2 platform retaining clips – raw cut

Which is to say, not very.

The material is 6 mil (about 0.15 mm) phosphor bronze, nice and springy. Combined with ripply edges and sharp corners, you get perfectly serviceable serrated knife blades suitable for use in traditional shop ceremonies of ritual scarification of the fingertips.

I stacked the slips, clamped them to the Sherline’s table between sacrificial plastic sheets, used manual CNC to poke a pair of #31 holes (0.120 inch, about the right clearance for M3 screws) at the right spots, and then stacked everything up on the M2:

M2 platform retaining clip oops - in place
M2 platform retaining clip oops – in place

The alert reader will notice a third #31 hole at the wrong spot, which was the first one I drilled and partially explains the lack of pictures of the operation.

Sighting across the platform shows that the clip doesn’t lie quite flat on the glass, due to the scissors-cut bending:

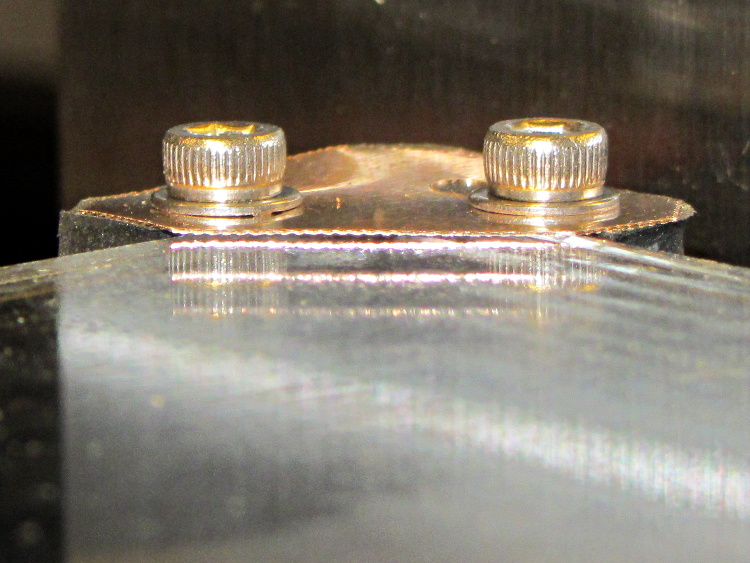

M2 platform retaining clip - edge view
M2 platform retaining clip – edge view

However, four of these clips hold the glass firmly to the heat spreader and eliminate the need for the stock bulldog clips, which is what I wanted to find out.

But they’re ugly and I don’t want to explain that extra hole…

5 thoughts on “Makergear M2: Prototype Corner Clips

  1. remember mouse pads?

    Still use them. My oldest optical desk rodent (circa 2001) doesn’t like shiny surfaces, and the pads stay put. My wrists like the little bit of padding, so I still keep a pad.

    I don’t want to explain that extra hole…

    Yep. I have a mirror grinder with a hole filled by a broken tap on a support arm. I used a tapping head and misaligned the tap to the hole. Not worth removing the tap piece, but not a source of pride…

  2. Manual CNC? You mean fingers as actuators and eyeballs as positional feedback mechanisms?

    1. fingers as actuators

      That’s just so 19th Century.

      Manual CNC, as in typing the G-Code commands & coordinates into LinuxCNC’s Axis UI, then letting it do the crank turning. If one types the correct coordinates, one gets holes at exactly the right positions…
