Layered Paper 8×10 inch Gluing Fixture

An embiggened version of the 8×8 inch fixture, built with MDF for improved durability & flatness:

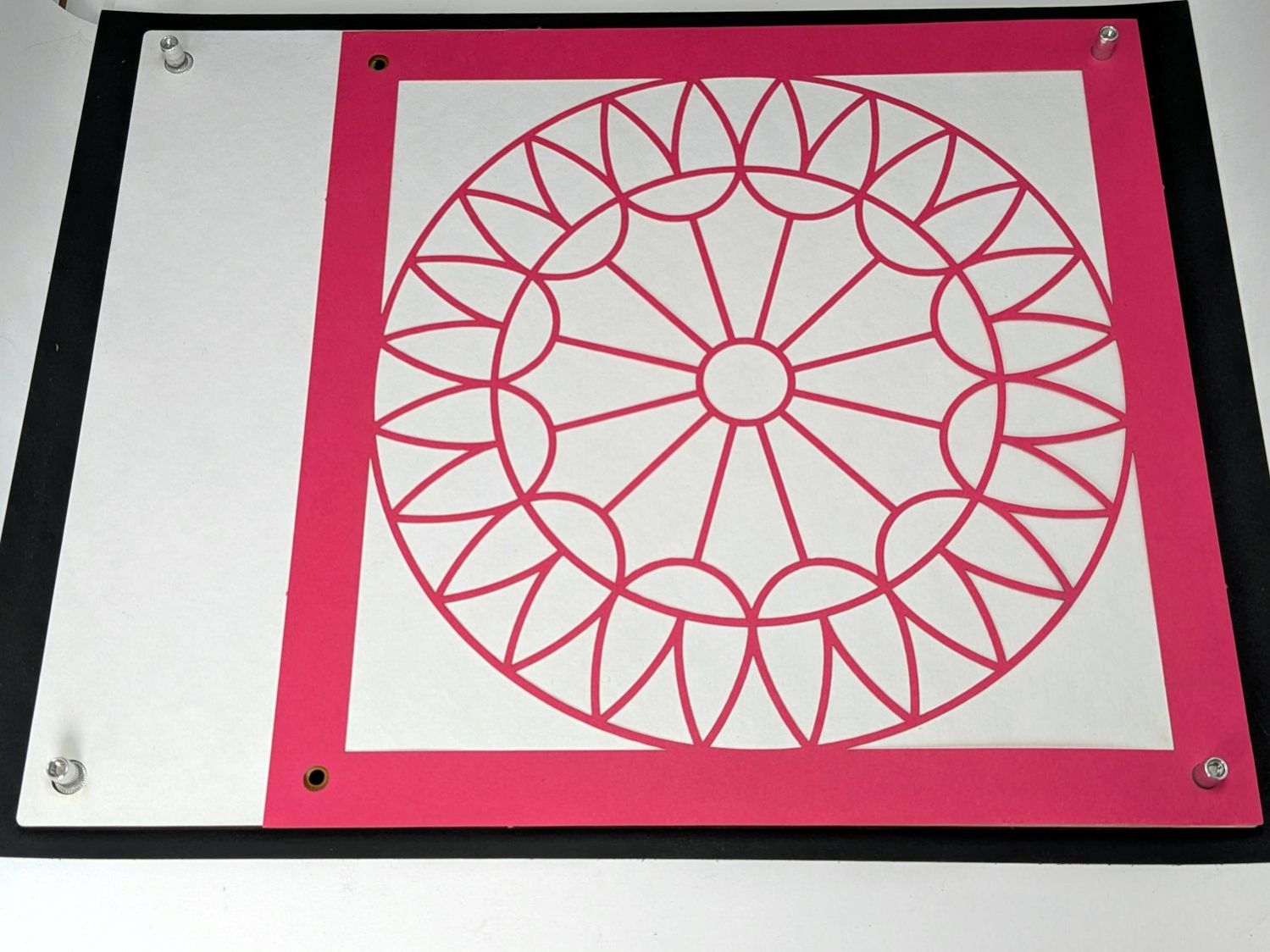

That’s an 8×8 quilt pattern as a quick fit check. Should I cut more of those, I’d install rivnuts in the obvious locations:

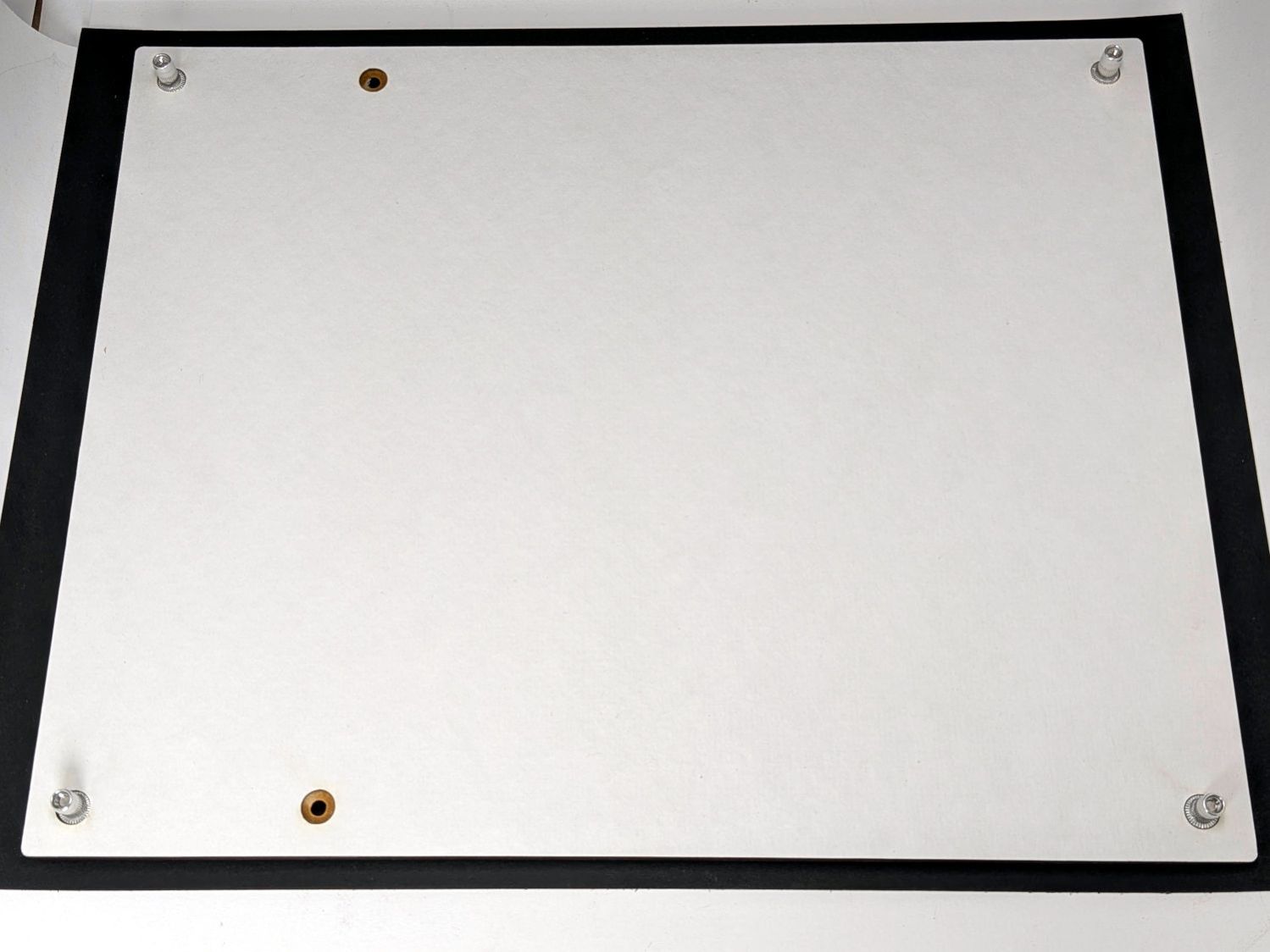

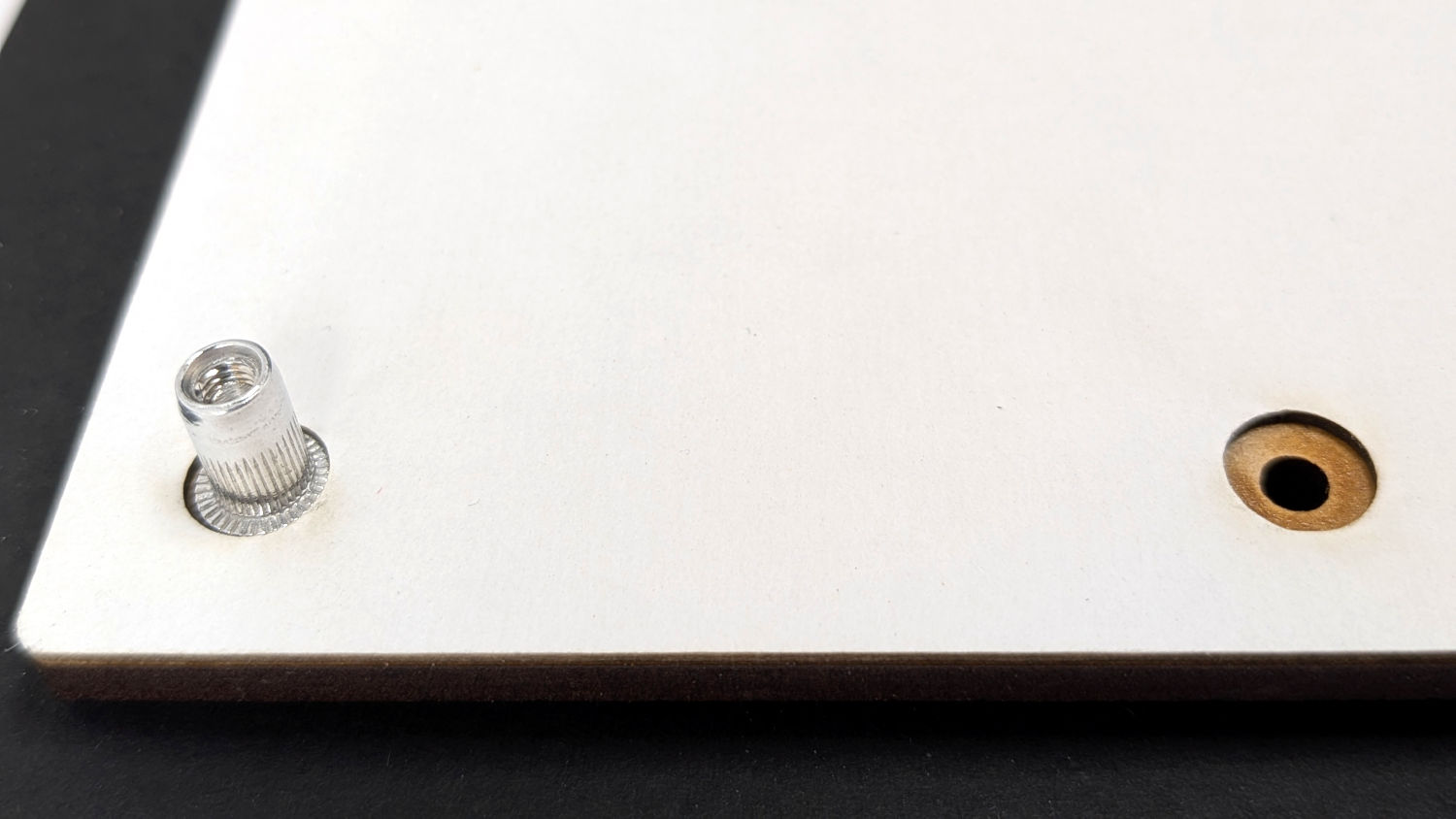

The white layer is 1 mm thick chipboard with the rivnut heads flush at its surface:

The perspective makes the fit look much worse than it is.

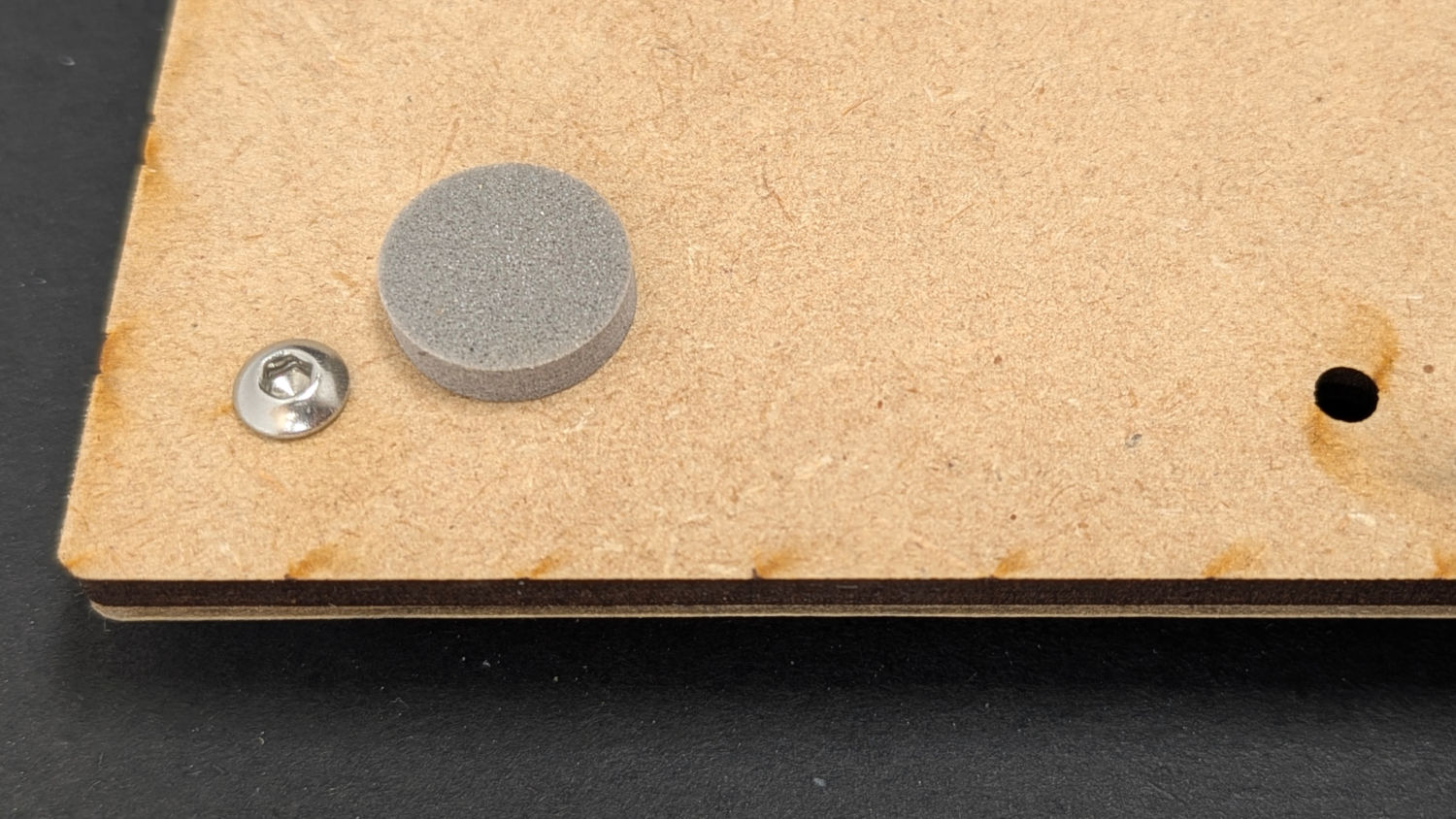

The back side has squishy foam feet keeping the M3 screws off the table:

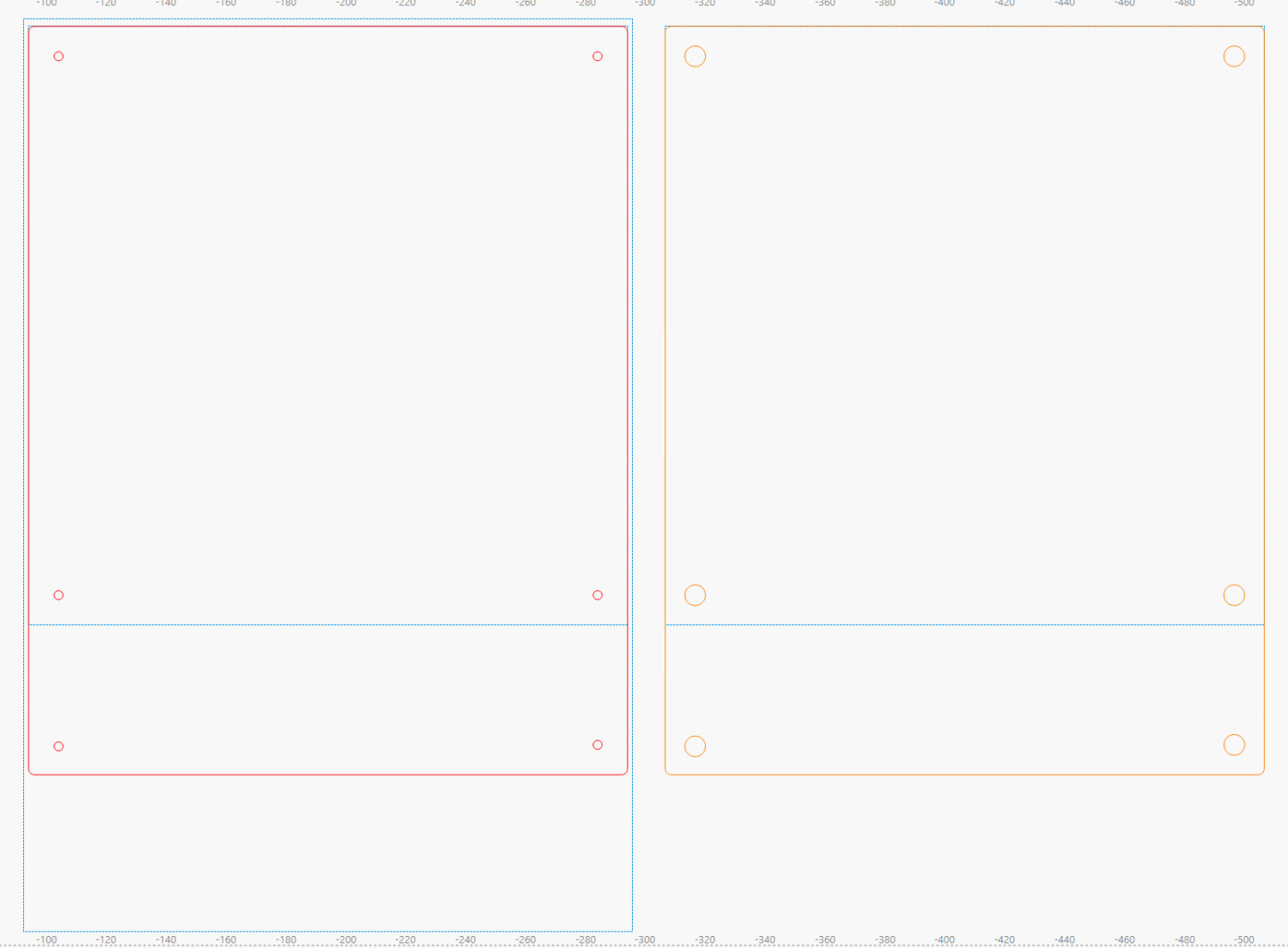

The large rectangle on the LightBurn tool layer helped align the 8×12 inch MDF stock. The smaller squares show where the 8×8 inch square will fit and confirmed the hole locations:

The LightBurn SVG layout is a GitHub Gist, which also includes the template layout for cutting Letter pages to fit the fixture.
