Water Shutoff Valves: Autopsy

After a bit more than half a century, the rubber washer in the cold water shutoff valve for the kitchen sink had fossilized:

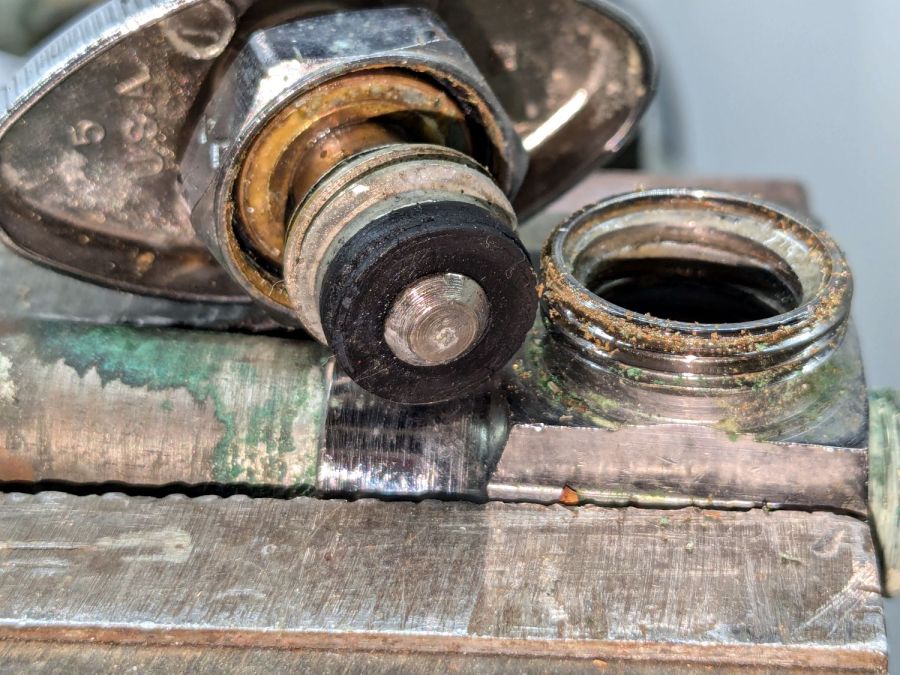

Sink shutoff - cold washer
Sink shutoff – cold washer

The hot water washer was in much worse condition:

Sink shutoff - hot washer
Sink shutoff – hot washer

The shutoff valve for the hose bib in the front of the house, mounted knob-downward, has been dripping quietly for many many years before I replaced it:

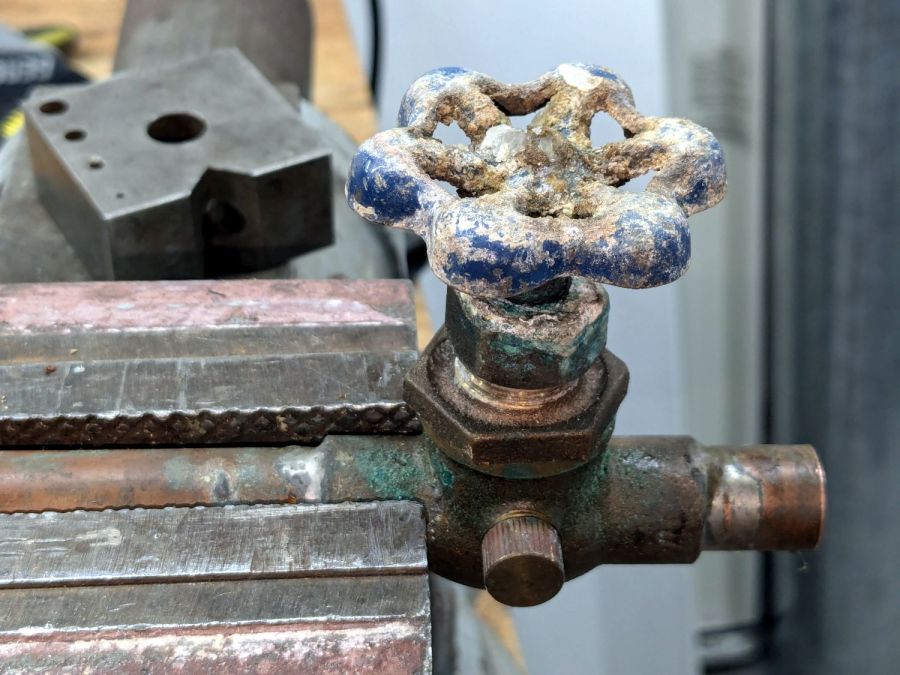

Hose valve shutoff - knob corrosion
Hose valve shutoff – knob corrosion

I’d turned the valve off to no avail, so this was no surprise:

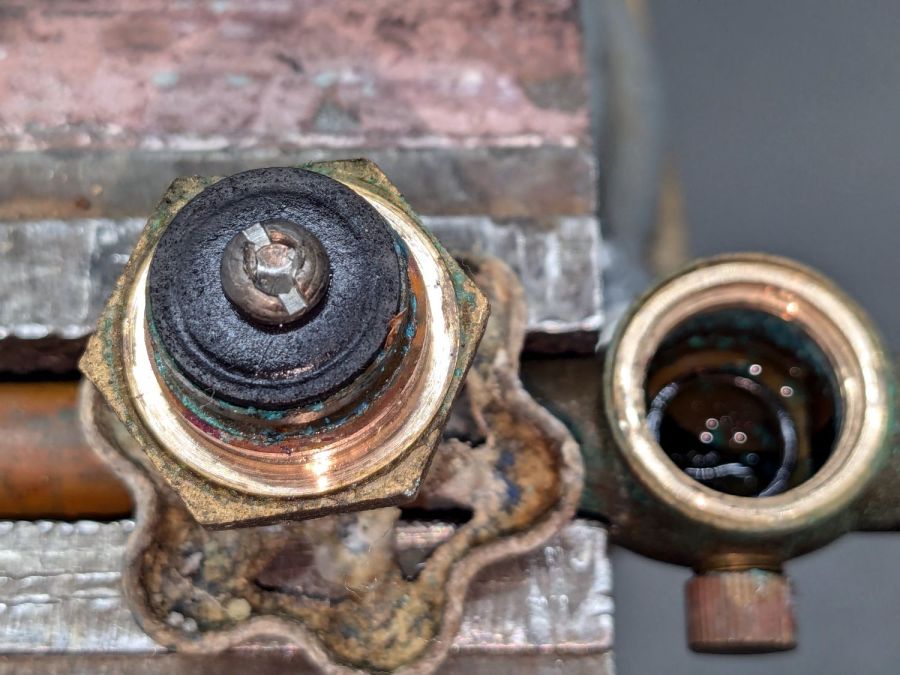

Hose valve shutoff - washer
Hose valve shutoff – washer

While it is theoretically possible to replace those washers, even the professionals know better than to disturb a sleeping valve:

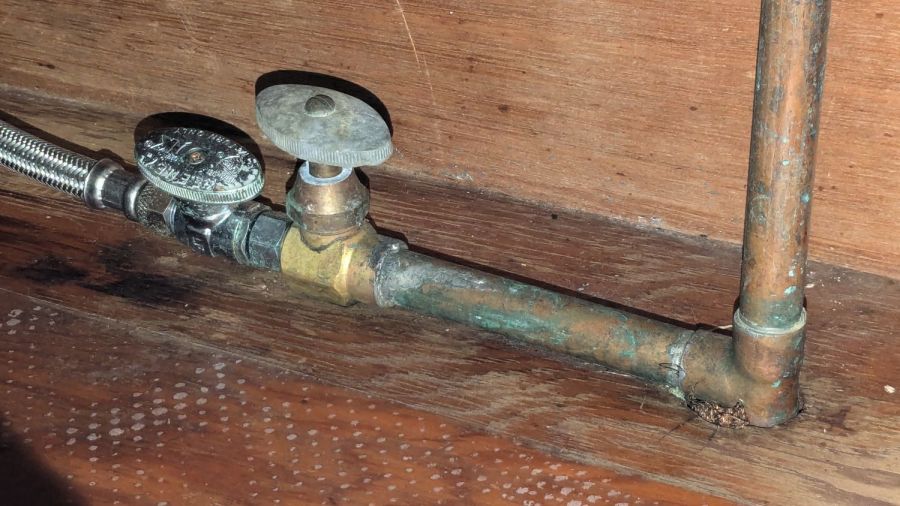

Dishwasher valve doubling
Dishwasher valve doubling

The tandem valve was likely installed half a decade ago, along with the dishwasher it services. Perhaps the washer inside remains soft.
