Laser-cut Shop Wipes

Wiping down a tool or wiping up a mess with a small rag and then throwing it out simplifies cleanup:

Shop wipes
Shop wipes

Long ago, I applied scissors to old towels / t-shirts / whatever to get randomly sized squares, but when Mary began using rotary cutters for her sewing projects I immediately saw the light. A few times a year, I lower the scrap box level and restock the shop wipes boxes.

A laser cutter is even better:

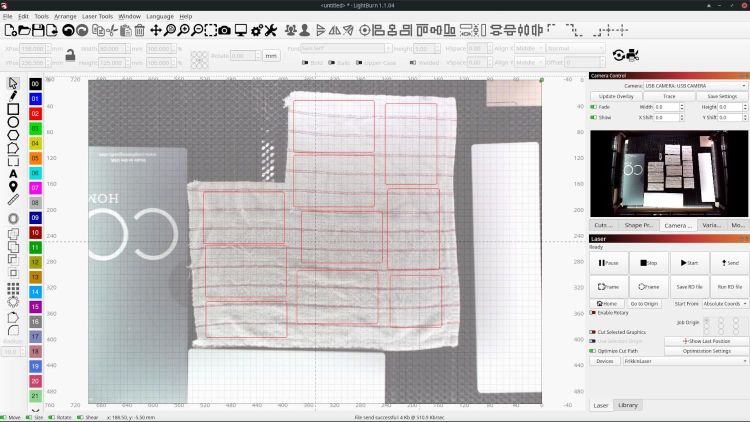

Shop Rags - LB camera layout
Shop Rags – LB camera layout

Flatten the rag on the honeycomb, drag a few rectangles into place, and fire the laser:

Shop wipes - laser cut
Shop wipes – laser cut

Something like 50 mm/s at 60% power works for all the fabrics I’ve tried, from worn-out towels and dead sweatpants to napkins and t-shirts. Thinner fabrics can be stacked, but wrinkles and seams get in the way of clean cuts.

Rounded-corner rectangles are easy enough to draw and the scrap cloths have different shapes, so I don’t see much point in saving a file with any specific layout. Your scrap box may be more orderly.

A clean cut lets the outer cloth just lift away:

Shop wipes - on honeycomb
Shop wipes – on honeycomb

The wipes give off a distinct smell of charred cloth, but running them through the clothes washer in a big mesh bag with everything else solves that problem.

Obviously, one couldn’t possibly justify a laser cutter to make shop wipes, but if you happen to have one just standing around, well …

Comments

5 responses to “Laser-cut Shop Wipes”

  1. Jason Doege Avatar
    Jason Doege

    Might Mary consider using the laser cutter for cutting patterns?

    1. Ed Avatar

      I’m inching my way toward that goal, but the accuracy / alignment / positioning requirements turn out to be much more complex than I imagined.

      Also, laying out known-good fabric atop a crusty honeycomb platform is, as they say, a nonstarter.

  2. david Avatar
    david

    Just be careful where you throw them away if you wipe down a machine or anything else oily. https://www.essexct.gov/fire-marshal/bulletins/rise-in-fires-due-to-improper-disposal-of-oily-rags

    1. Ed Avatar

      Aye!

      The big red fireproof oily waste foot-pedal-flip-top shop trash can went with the rest of the shop stuff, much to my continuing regret.

      Nowadays, I immediately march oily and solvent-wet raglets to the outdoor garbage can and drape them over the contents, where I figure the cloth gets plenty of breathing / cooling room and the solvent vapors stun the bugs.

      So far, so good …
