Fuvaly Bucked Lithium AA Cells

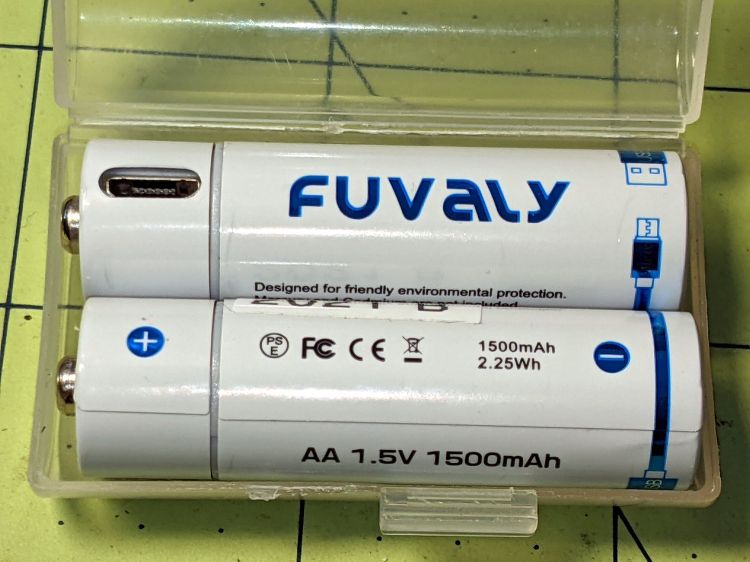

Behold lithium battery technology, a USB charger, and a buck voltage converter mashed into an AA alkaline package:

Fuvaly Bucked Lithium AA - label
Fuvaly Bucked Lithium AA – label

Those are two of a quartet bought from a randomly named Amazon seller to appease my ancient venerable classic Sony DSC-H5’s need for more voltage than new and freshly charged NiMH AA cells can provide for more than a few tens of minutes.

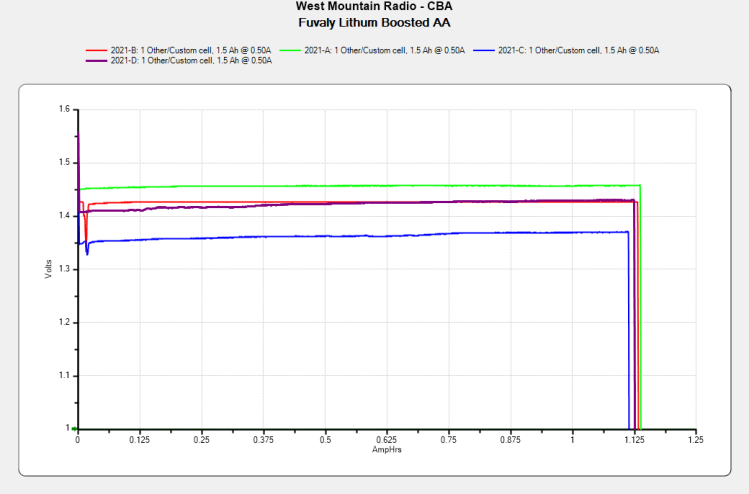

The label claims 1500 mA·h, not the 1120 mA·h I measured:

Fuvaly Bucked Li AA - mAh - 2021-02
Fuvaly Bucked Li AA – mAh – 2021-02

My numbers would be higher with a load less than 500 mA. I doubt the 2.5 A maximum current rating.

The claim of 2.25 W·h is rather optimistic:

Fuvaly Bucked Li AA - 2021-02
Fuvaly Bucked Li AA – 2021-02

Back of the envelope: 2.25 W·h at 1.5 V equals 1.5 A·h, all right. If you squint carefully, though, the output voltages run around 1.4 V, some of which is surely IR drop in my battery holder & test wiring, but it still knocks nearly 10% off the wattage and doesn’t seem to add to the runtime.

The camera’s battery charge indicator will obviously show Full right up until it shuts off, but I’ve always carried a spare pair of cells in my pocket anyway.

Recharging them with a USB meter in series required 425 to 600 mA·h at about 4.8 V, so about 2.5 W·h.

Enlarging the instructions from the back of the box, should they become useful:

Fuvaly Bucked Lithium AA - Instructions
Fuvaly Bucked Lithium AA – Instructions

Nowhere does the package mention the “brand name”, manufacturer, specifications, or much of anything substantial. I suppose anybody selling white-label products appreciates this level of detail.
