Audio Amp vs. Bananas

A low-end audio power amp destined for a pair of ancient-yet-still-serviceable speakers arrived, but attempting to poke wires through the side holes of the banana jacks showed they were oriented in random directions. Back in the day, banana jacks had D-shaped shafts fitted into D-shaped panel holes, but those days are gone.

A few minutes with screwdriver, wrench, and (tiny) punch sufficed to line up the holes for E-Z poking:

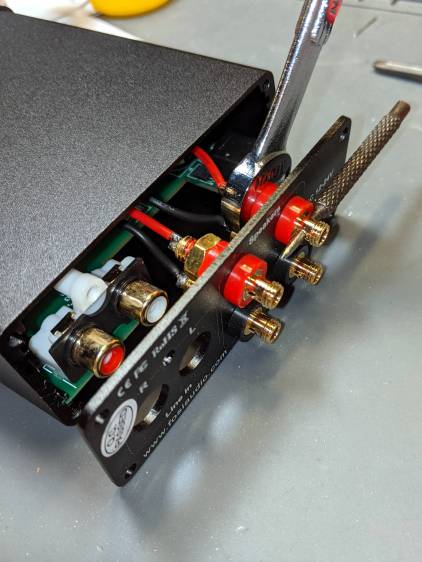

Fosi audio amp - jack alignment
Fosi audio amp – jack alignment

Despite the new convenience, I decided to solder banana plugs to the speaker wires, leading to the discovery my few remaining plugs came from the very bottom of the usability barrel:

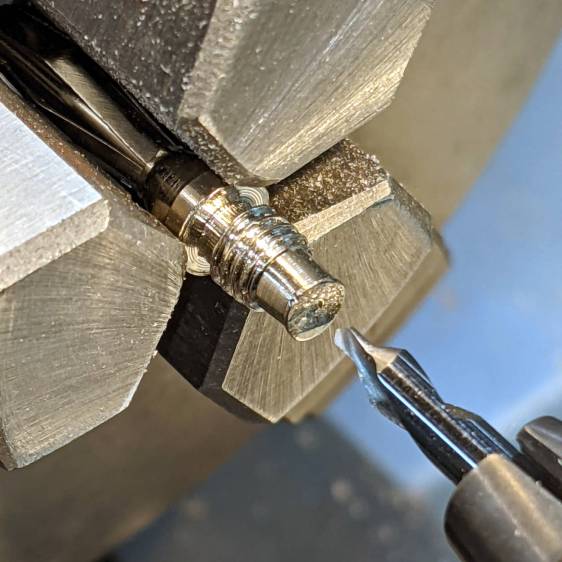

Cheap banana plug - solder side
Cheap banana plug – solder side

I have no idea how one might affix a wire to that blank stub, but poking a small center drill into the brass lump produces an easily solderable recess:

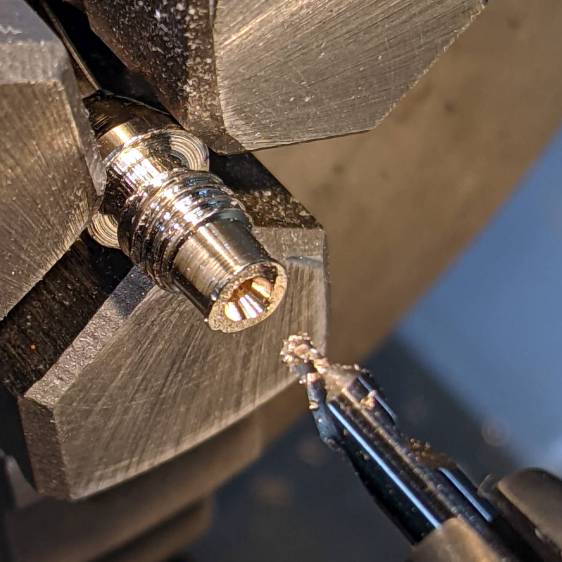

Cheap banana plug - center drilled
Cheap banana plug – center drilled

Dab with flux, tin, insert wire, add solder, repeat with all four plugs, and I’m set with a boomin’ system.
