Floor Lamp Rebasing

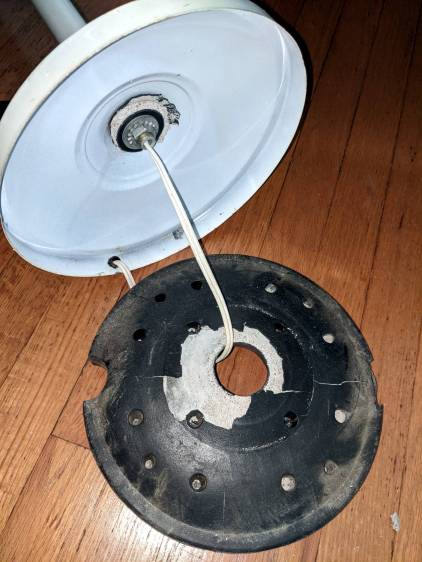

The torchiere floor lamp in the sewing room suffered a catastrophic failure:

Floor lamp - failed plastic base shell
Floor lamp – failed plastic base shell

Contrary to what you might think from seeing the shattered plastic base, we didn’t use the lamp as a club or battering ram. Apparently the designer expected the thin plastic surrounding the hole to withstand all the torque produced by the long pole against the cheap concrete / mortar / grout / whatever lump in the base. As we can recall, this lamp came to us from either a yard sale or a roadside debris harvest, so I suppose the hardware outlasted any reasonable expectation.

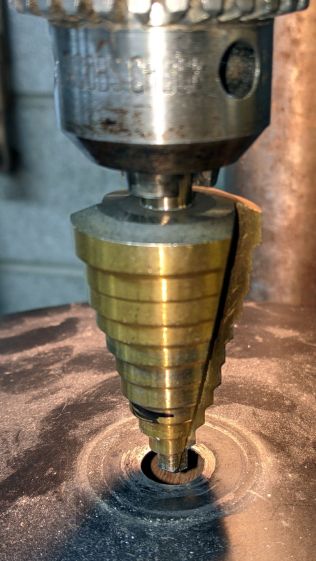

The Basement Laboratory Warehouse disgorged the pole and base from a similar lamp, albeit sporting black paint and a smaller rod connecting its pole to its somewhat larger weight. Not being too fussy about decor, I embiggened the hole in the black base to fit the white lamp’s threaded rod:

Floor lamp - enlarging replacement base
Floor lamp – enlarging replacement base

The dust on the base shows why you shouldn’t stand motionless in the Basement Laboratory for very long.

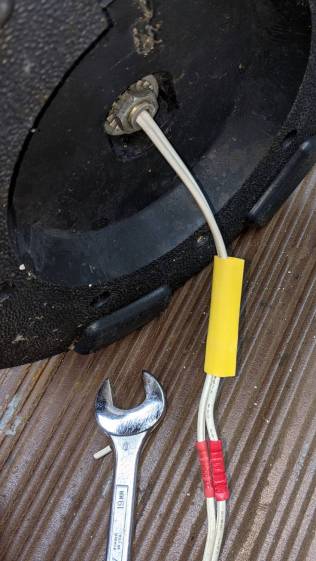

The alert reader will have noted the cord passing through a strain relief grommet in the white base. Rather than dismantle the entire lamp, I just cut the cord, ran it through the new base weight, reinstalled the washer + nut, then crimped on a pair of solderless connectors:

Floor lamp - cord splice
Floor lamp – cord splice

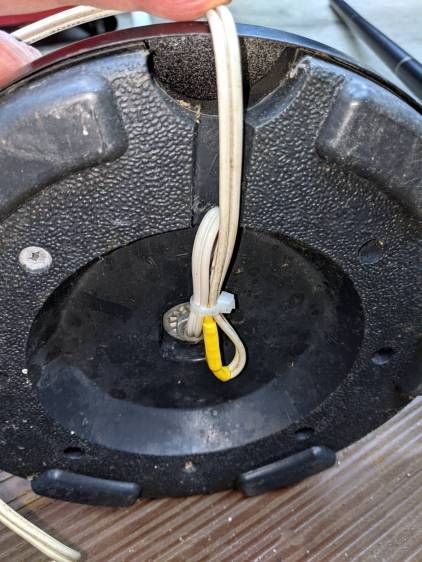

The new base doesn’t offer much in the way of attachment points, so I added a cable tie to keep the strain off the connectors:

Floor lamp - cord strain relief
Floor lamp – cord strain relief

A strip of genuine 3M duct tape with double-thick adhesive now traps the cord inside that small channel and, given that the lamps spends most of its time standing quietly in a corner, the cord should be fine for long enough.
