SJCAM M20 Action Camera: Stuck Battery

The SJCAM M20 action camera has been attached to the back of my Tour Easy for the last 16 months:

SJCAM M20 Mount - Tour Easy side view
SJCAM M20 Mount – Tour Easy side view

The Anker 13 A·h USB power pack on the rack provides juice for a week’s worth of rides, letting the M20’s internal battery keep its clock & settings alive between rides. I recently forgot to turn on the USB pack and discovered the camera shut down just after I cleared the end of the driveway.

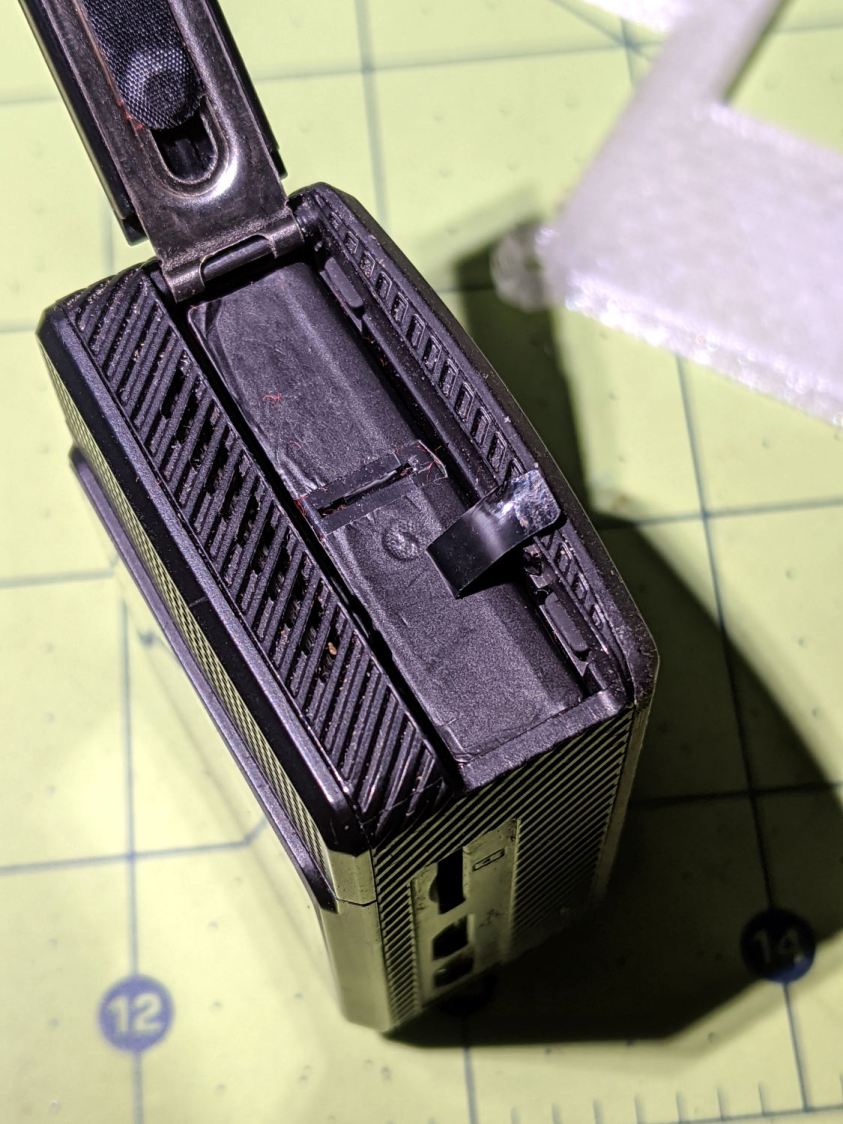

As you should expect, the battery had swollen so much its pull tab … pulled off … when I tried to extract it:

SJCAM M20 - stuck battery
SJCAM M20 – stuck battery

So, we begin.

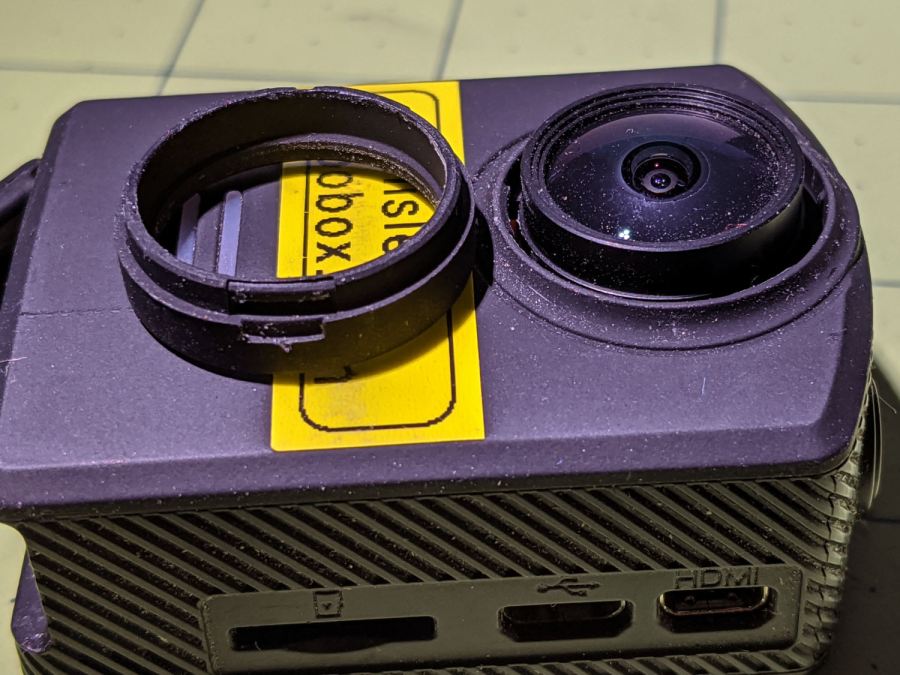

Pry off the trim ring around the lens by jamming a small screwdriver in any of the three slots:

SJCAM M20 - lens ring removed
SJCAM M20 – lens ring removed

Then pry off the entire front panel:

SJCAM M20 - camera front panel
SJCAM M20 – camera front panel

Thereby exposing the battery’s rectangular protrusion and three contacts next to the optical block:

SJCAM M20 - camera interior - battery terminals
SJCAM M20 – camera interior – battery terminals

Avoid shorting the brass terminals with, say, a small screwdriver, while shoving the battery out of the camera until you can grab it with your fingers and haul it out the rest of the way:

SJCAM M20 - swollen battery case - left
SJCAM M20 – swollen battery case – left

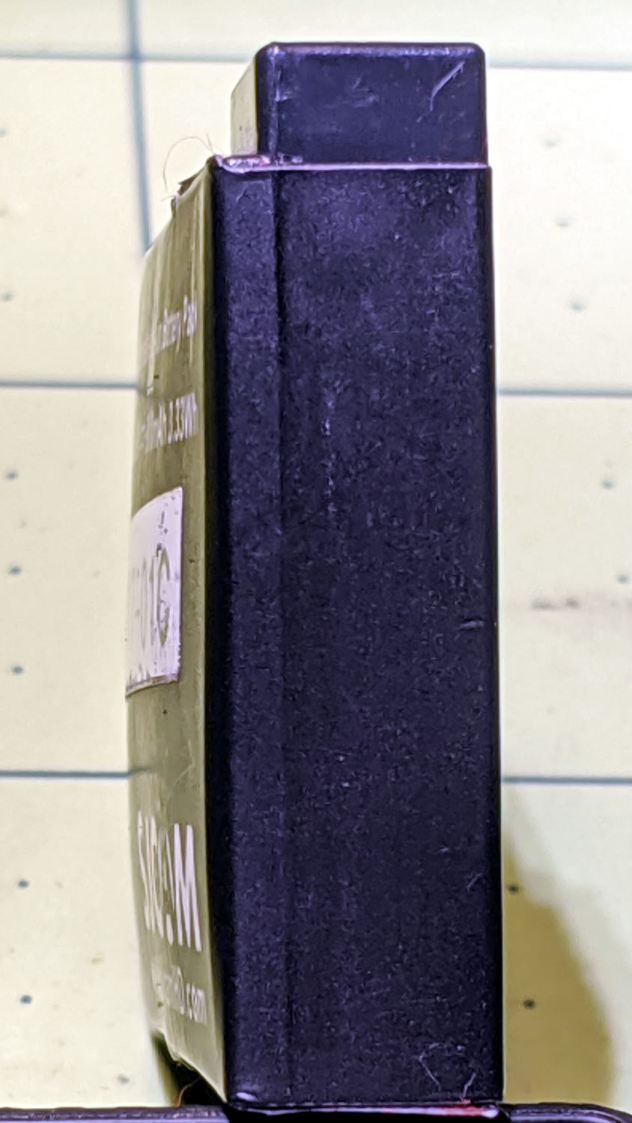

Yeah, that puppy looks all swoll up:

SJCAM M20 - swollen battery case - right
SJCAM M20 – swollen battery case – right

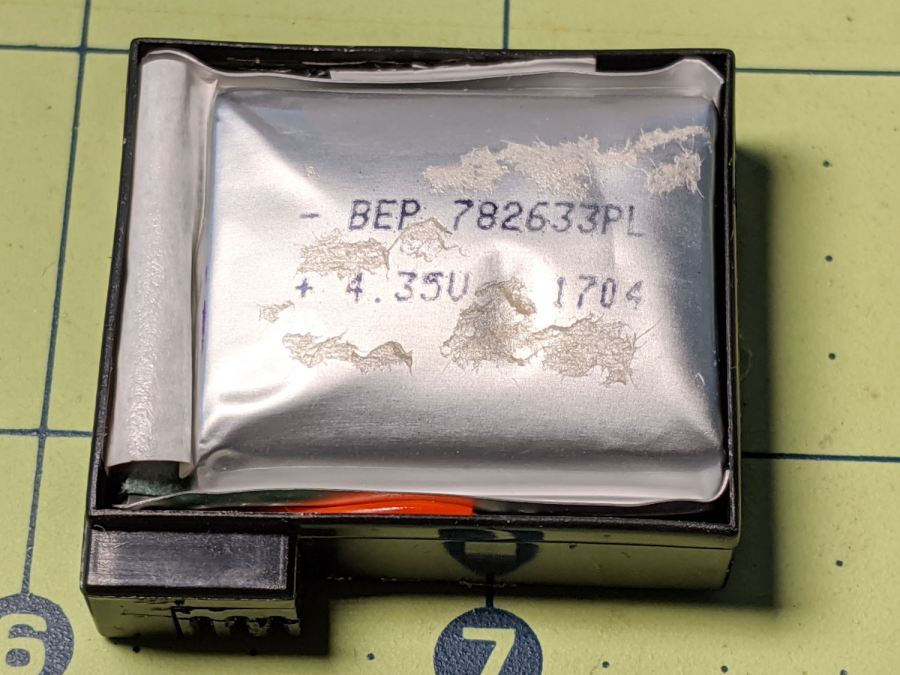

Remove the all-enclosing label to reveal the bag inside:

SJCAM M20 - swollen battery bag
SJCAM M20 – swollen battery bag

Pull the bag out to reveal the protection PCB:

SJCAM M20 - battery case interior
SJCAM M20 – battery case interior

Snip the wires and salvage the case against future need.

I bought the camera with three batteries, all three of which are now similarly swollen. I also got two official SJAM batteries with an official SJAM charger; both of those batteries seem to be in fine shape. I expect the codes on the five bags would reveal two different lots, but I’m not going to sacrifice a nominally good battery to find out.

All three swollen battery bags show the same BEP 782633PL lot code and 1704 date code. I bought everything in January 2018, so those batteries had been sitting on the shelf for the better part of a year. Maybe that’s why they offered a “deal” for two spare batteries along with the camera?

Installing one of the unswollen batteries, reconfiguring the camera’s settings & clock, and giving it a charge from the Anker USB pack put it back in operation.
