Baofeng UV-5R Squelch Settings

The Baofeng UV-5R radios on our bikes seem absurdly sensitive to intermodulation interference, particularly on rides across the Walkway Over the Hudson, which has a glorious view of the repeaters and paging transmitters atop Illinois Mountain:

Walkway Over The Hudson - Illinois Mountain Antennas
Walkway Over The Hudson – Illinois Mountain Antennas

A better view of the assortment on the right:

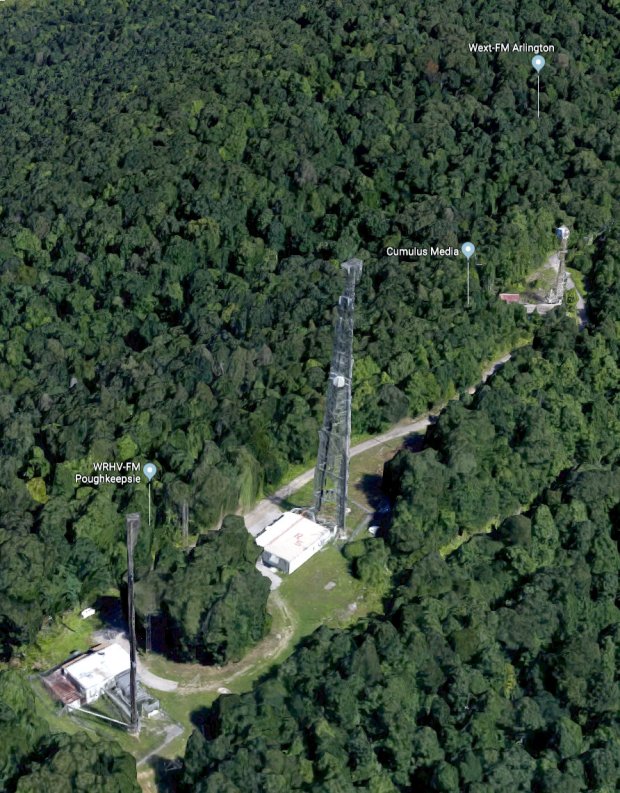

Illinois Mountain - North Antennas
Illinois Mountain – North Antennas

And on the left:

Illinois Mountain - South Antennas
Illinois Mountain – South Antennas

Not shown: the Sheriff’s Office transmitter behind us on the left and the Vassar Brothers Hospital / MidHudson pagers on either side at eye level. There’s plenty of RFI boresighted on the Walkway.

Anyhow, none of the Baofeng squelch settings had any effect, which turned out to be a known problem. The default range VHF covered a whopping 6 dB and the UHF wasn’t much better at 18 dB, both at very low RF power levels.

We use the radios in simplex mode, generally within line of sight, so I changed the Service Settings to get really aggressive squelch:

Baofeng UV-5R - Improved Squelch Settings
Baofeng UV-5R – Improved Squelch Settings

I have no way to calibrate the new signal levels, but I’d previously cranked the squelch up to 9 (it doesn’t go any higher) and, left unchanged, the new level makes all the previous interference Go Away™. Another ride over the Walkway with the squelch set to 4 also passed in blissful silence.

If the BF-F9 levels mean anything on a UV-5R, that’s about -100 dBm, 20 dB over the previous -120 dBm at squelch = 9.

The new squelch levels may be too tight for any other use, which doesn’t matter for these radios. As of now, our rides are quiet.

[Update: Setting the squelch to 5 may be necessary for the Walkway, as we both heard a few squawks and bleeps while riding eastbound on a Monday afternoon. ]
