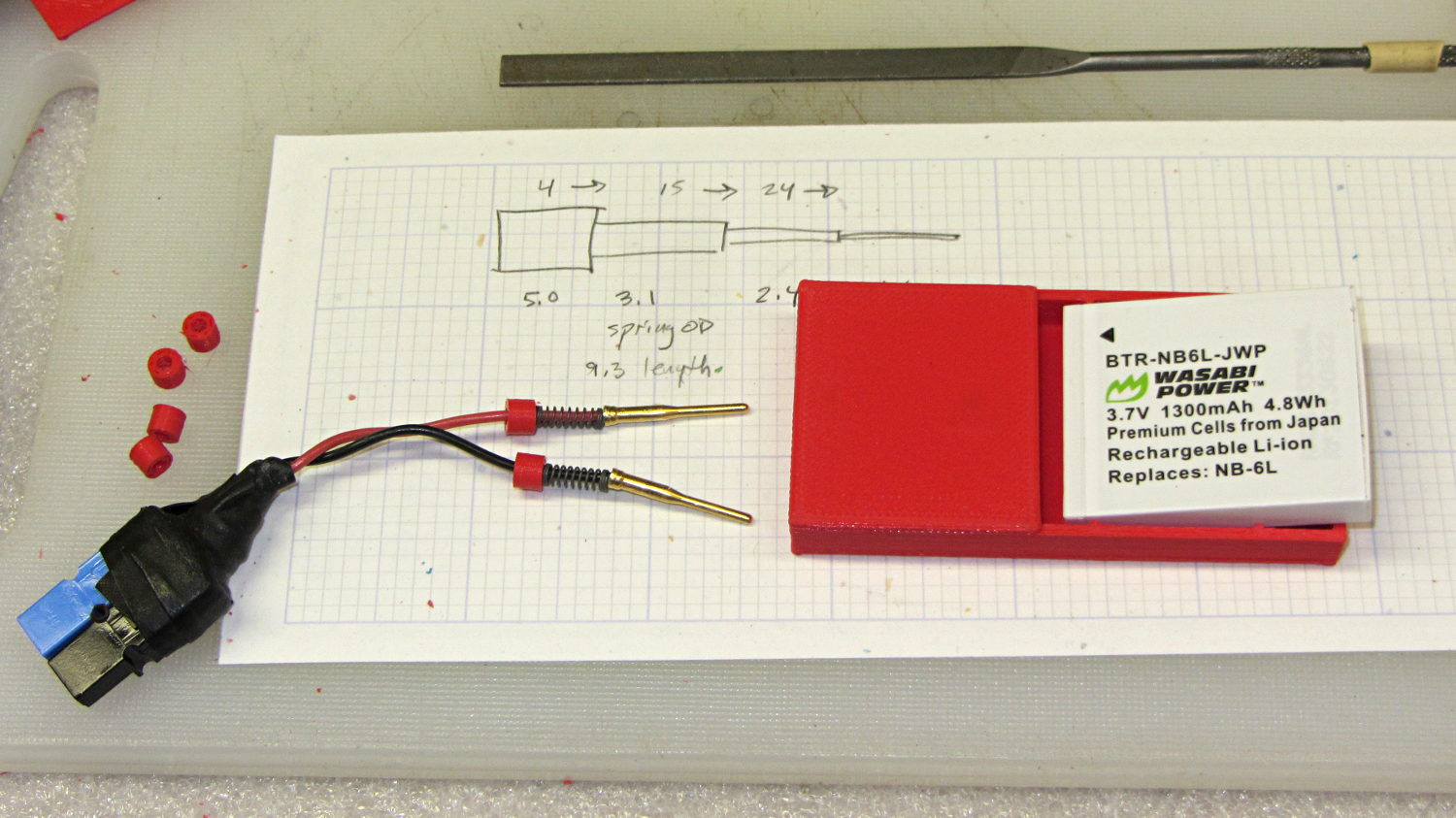

The original camera battery test fixtures used contact pins conjured from hulking gold-plated connector pins and coil springs:
The Sony HDR-AS30V camera chewed up and spat out a handful of batteries, all tested in the NP-BX1 test fixture:

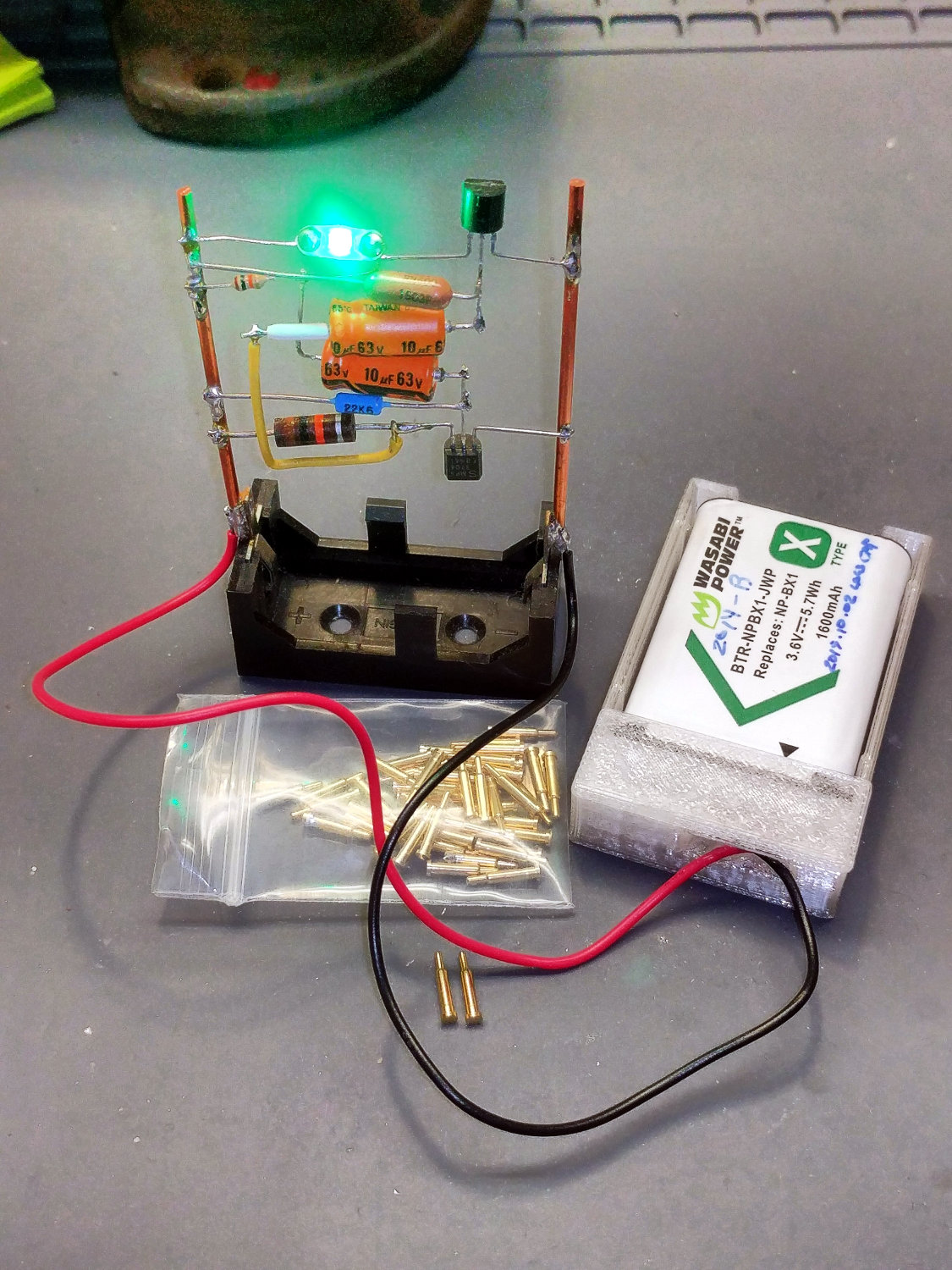

Nowadays, SMT pogo pins produce a much more compact holder, so I figured I could put all those batteries to good use:
That’s the long-suffering astable multivibrator, still soldered to its CR123A holder.
Obviously, the battery holder should grow ears to anchor the 14 AWG copper posts and would look better in black PETG:
The battery lead wires get soldered to the ends of the pogo pins and are recessed into the slot in the end of the fixture. I used clear epoxy to anchor everything in place.
Fits perfectly and works fine!

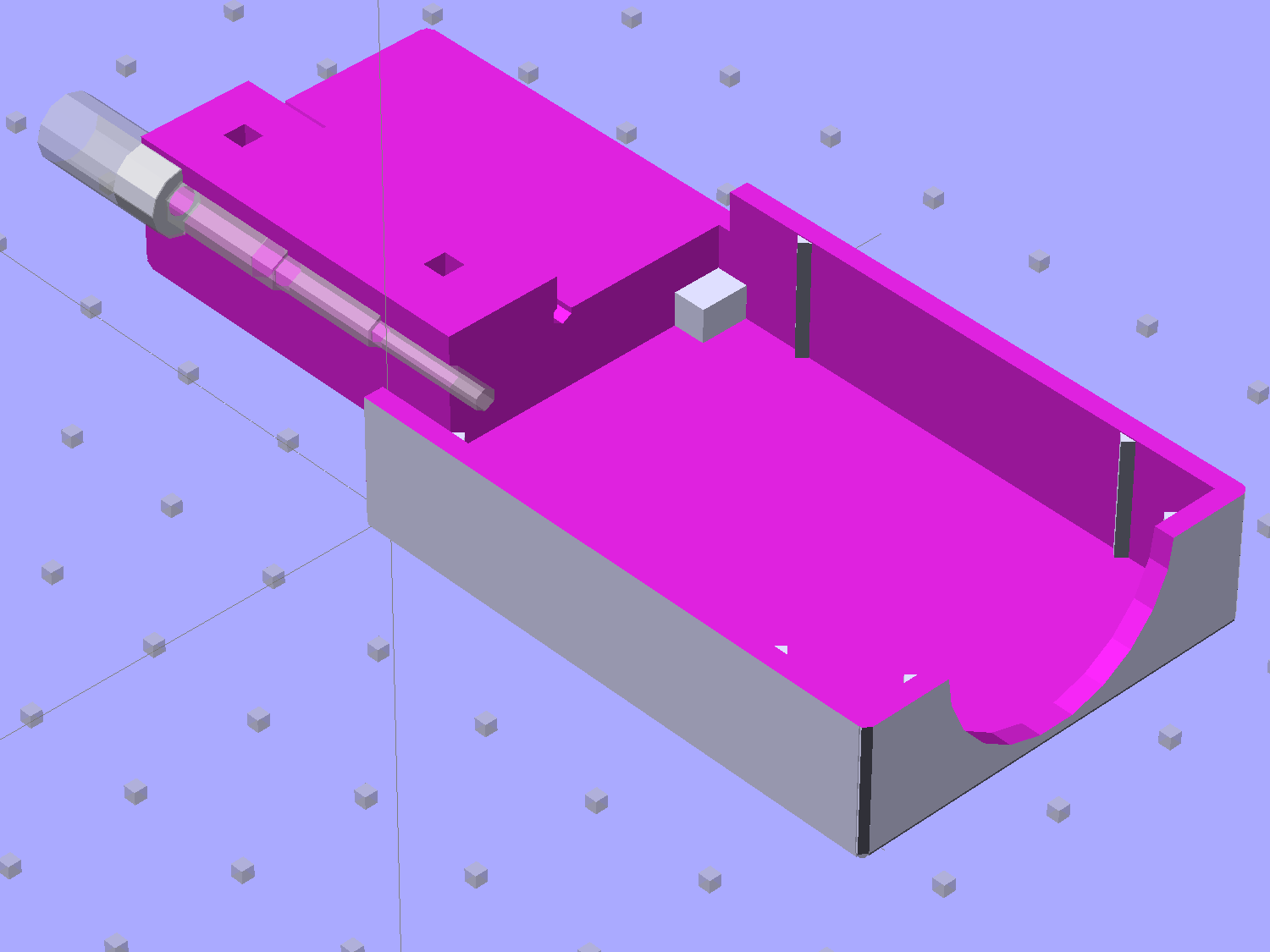

The OpenSCAD source code as a GitHub Gist:
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| // Holder for Sony NP-BX1 Li-Ion battery | |
| // Ed Nisley KE4ZNU January 2013 | |
| // 2018-11-15 Adapted for wire leads from 1.5 mm test pins, added upright wire bases | |
| // Layout options | |
| Layout = "Show"; // Show Build Fit Case Lid Pins | |
| //- Extrusion parameters – must match reality! | |
| // Print with +2 shells and 3 solid layers | |
| ThreadThick = 0.25; | |
| ThreadWidth = 0.35; | |
| HoleWindage = 0.2; | |
| function IntegerMultiple(Size,Unit) = Unit * ceil(Size / Unit); | |
| Protrusion = 0.1; // make holes end cleanly | |
| inch = 25.4; | |
| BuildOffset = 3.0; // clearance for build layout | |
| Gap = 2.0; // separation for Fit parts | |
| //- Battery dimensions – rationalized from several samples | |
| // Coordinate origin at battery contact face with key openings below contacts | |
| Battery = [43.0,30.0,9.5]; // X = length, Y = width, Z = thickness | |
| Contacts = [[-0.75,6.0,6.2],[-0.75,16.0,6.2]]; // relative to battery edge, front, and bottom | |
| KeyBlocks = [[1.75,3.70,2.90],[1.75,3.60,2.90]]; // recesses in battery face set X position | |
| //- Pin dimensions | |
| ID = 0; | |
| OD = 1; | |
| LENGTH = 2; | |
| PinShank = [1.5,2.0,6.5]; // shank, flange, compressed length | |
| PinFlange = [1.5,2.0,0.5]; // flange, length included in PinShank | |
| PinTip = [0.9,0.9,2.5]; // extended spring-loaded tip | |
| PinChannel = PinFlange[LENGTH] + 0.5; // cut behind flange for solder overflow | |
| PinRecess = 3.0; // recess behind pin flange end for epoxy fill | |
| echo(str("Contact tip dia: ",PinTip[OD])); | |
| echo(str(" .. shank dia: ",PinShank[ID])); | |
| OverTravel = 0.5; // space beyond battery face at X origin | |
| //- Holder dimensions | |
| GuideRadius = ThreadWidth; // friction fit ridges | |
| GuideOffset = 7; // from compartment corners | |
| WallThick = 4*ThreadWidth; // holder sidewalls | |
| BaseThick = 6*ThreadThick; // bottom of holder to bottom of battery | |
| TopThick = 6*ThreadThick; // top of battery to top of holder | |
| ThumbRadius = 10.0; // thumb opening at end of battery | |
| CornerRadius = 3*ThreadThick; // nice corner rounding | |
| CaseSize = [Battery.x + PinShank[LENGTH] + OverTravel + PinRecess + GuideRadius + WallThick, | |
| Battery.y + 2*WallThick + 2*GuideRadius, | |
| Battery.z + BaseThick + TopThick]; | |
| CaseOffset = [-(PinShank[LENGTH] + OverTravel + PinRecess),-(WallThick + GuideRadius),0]; // position around battery | |
| LidOverhang = 2.0; // over top of battery for retention | |
| LidSize = [-CaseOffset.x + LidOverhang,CaseSize.y,TopThick]; | |
| LidOffset = [0.0,CaseOffset.y,0]; | |
| //———————- | |
| // Useful routines | |
| module PolyCyl(Dia,Height,ForceSides=0) { // based on nophead's polyholes | |
| Sides = (ForceSides != 0) ? ForceSides : (ceil(Dia) + 2); | |
| FixDia = Dia / cos(180/Sides); | |
| cylinder(r=(FixDia + HoleWindage)/2,h=Height,$fn=Sides); | |
| } | |
| //——————- | |
| //– Guides for tighter friction fit | |
| module Guides() { | |
| translate([GuideOffset,-GuideRadius,0]) | |
| PolyCyl(2*GuideRadius,(Battery.z – Protrusion),4); | |
| translate([GuideOffset,(Battery.y + GuideRadius),0]) | |
| PolyCyl(2*GuideRadius,(Battery.z – Protrusion),4); | |
| translate([(Battery.x – GuideOffset),-GuideRadius,0]) | |
| PolyCyl(2*GuideRadius,(Battery.z – Protrusion),4); | |
| translate([(Battery.x – GuideOffset),(Battery.y + GuideRadius),0]) | |
| PolyCyl(2*GuideRadius,(Battery.z – Protrusion),4); | |
| translate([(Battery.x + GuideRadius),GuideOffset/2,0]) | |
| PolyCyl(2*GuideRadius,(Battery.z – Protrusion),4); | |
| translate([(Battery.x + GuideRadius),(Battery.y – GuideOffset/2),0]) | |
| PolyCyl(2*GuideRadius,(Battery.z – Protrusion),4); | |
| } | |
| //– Contact pins | |
| // Rotated to put them in their natural oriention | |
| // Aligned to put tip base / end of shank at Overtravel limit | |
| module PinShape() { | |
| translate([-(PinShank[LENGTH] + OverTravel),0,0]) | |
| rotate([0,90,0]) | |
| rotate(180/6) | |
| union() { | |
| PolyCyl(PinTip[OD],PinShank[LENGTH] + PinTip[LENGTH],6); | |
| PolyCyl(PinShank[ID],PinShank[LENGTH] + Protrusion,6); // slight extension for clean cuts | |
| PolyCyl(PinFlange[OD],PinFlange[LENGTH],6); | |
| } | |
| } | |
| // Position pins to put end of shank at battery face | |
| // Add wire exit channel between pins | |
| // Does not include recess access | |
| module PinAssembly() { | |
| union() { | |
| for (p = Contacts) | |
| translate([0,p.y,p.z]) | |
| PinShape(); | |
| translate([-(PinShank[LENGTH] + OverTravel) + PinChannel/2, | |
| (Contacts[1].y + Contacts[0].y)/2, | |
| Contacts[0].z]) | |
| cube([PinChannel,(Contacts[1].y – Contacts[0].y),PinFlange[OD]],center=true); | |
| } | |
| } | |
| //– Case with origin at battery corner | |
| module Case() { | |
| difference() { | |
| union() { | |
| difference() { | |
| translate([(CaseSize.x/2 + CaseOffset.x), // basic case shape | |
| (CaseSize.y/2 + CaseOffset.y), | |
| (CaseSize.z/2 – BaseThick)]) | |
| hull() | |
| for (i=[-1,1], j=[-1,1], k=[-1,1]) | |
| translate([i*(CaseSize.x/2 – CornerRadius), | |
| j*(CaseSize.y/2 – CornerRadius), | |
| k*(CaseSize.z/2 – CornerRadius)]) | |
| sphere(r=CornerRadius,$fn=8); | |
| translate([-OverTravel,-GuideRadius,0]) | |
| cube([(Battery.x + GuideRadius + OverTravel), | |
| (Battery.y + 2*GuideRadius), | |
| (Battery.z + Protrusion)]); // battery space | |
| } | |
| Guides(); // improve friction fit | |
| translate([-OverTravel,-GuideRadius,0]) // battery keying blocks | |
| cube(KeyBlocks[0] + [OverTravel,GuideRadius,0],center=false); | |
| translate([-OverTravel,(Battery.y – KeyBlocks[1].y),0]) | |
| cube(KeyBlocks[1] + [OverTravel,GuideRadius,0],center=false); | |
| } | |
| translate([(-OverTravel), // battery top access | |
| (CaseOffset.y – Protrusion), | |
| Battery.z]) | |
| cube([CaseSize.x,(CaseSize.y + 2*Protrusion),(TopThick + Protrusion)]); | |
| translate([(CaseOffset.x – Protrusion), // battery insertion allowance | |
| (CaseOffset.y – Protrusion), | |
| Battery.z]) | |
| cube([(CaseSize.x + 2*Protrusion),(CaseSize.y + 2*Protrusion),(TopThick + Protrusion)]); | |
| translate([(Battery.x – Protrusion), // remove thumb notch | |
| (CaseSize.y/2 + CaseOffset.y), | |
| (ThumbRadius)]) | |
| rotate([90,0,0]) | |
| rotate([0,90,0]) | |
| cylinder(r=ThumbRadius, | |
| h=(WallThick + GuideRadius + 2*Protrusion), | |
| $fn=22); | |
| PinAssembly(); | |
| translate([CaseOffset.x + PinRecess/2 + Protrusion/2,(Contacts[1].y + Contacts[0].y)/2,Contacts[0].z]) | |
| cube([PinRecess + Protrusion, | |
| (Contacts[1].y – Contacts[0].y + PinFlange[OD]), | |
| 2*PinFlange[OD]],center=true); | |
| } | |
| } | |
| // Lid position offset to match case | |
| module Lid() { | |
| translate([-LidSize.x/2 + LidOffset.x + LidOverhang,LidSize.y/2 + LidOffset.y,0]) | |
| difference() { | |
| hull() | |
| for (i=[-1,1], j=[-1,1], k=[-1,1]) | |
| translate([i*(LidSize.x/2 – CornerRadius), | |
| j*(LidSize.y/2 – CornerRadius), | |
| k*(LidSize.z – CornerRadius)]) // double thickness for flat bottom | |
| sphere(r=CornerRadius,$fn=8); | |
| translate([0,0,-LidSize.z/2]) | |
| cube([(LidSize.x + 2*Protrusion),(LidSize.y + 2*Protrusion),LidSize.z],center=true); | |
| cube([LidSize.x/4,0.75*LidSize.y,4*ThreadThick],center=true); // epoxy recess | |
| } | |
| } | |
| //——————- | |
| // Build it! | |
| if (Layout == "Case") | |
| Case(); | |
| if (Layout == "Lid") | |
| Lid(); | |
| if (Layout == "Pins") { | |
| color("Silver",0.5) | |
| PinShape(); | |
| PinAssembly(); | |
| } | |
| if (Layout == "Show") { // reveal pin assembly | |
| difference() { | |
| Case(); | |
| translate([(CaseOffset.x – Protrusion), | |
| Contacts[1].y, | |
| Contacts[1].z]) | |
| cube([(-CaseOffset.x + Protrusion), | |
| CaseSize.y, | |
| (CaseSize.z – Contacts[0].z + Protrusion)]); | |
| translate([(CaseOffset.x – Protrusion), | |
| (CaseOffset.y – Protrusion), | |
| 0]) | |
| cube([(-CaseOffset.x + Protrusion), | |
| Contacts[0].y + Protrusion – CaseOffset.y, | |
| CaseSize.z]); | |
| } | |
| color("Silver",0.15) | |
| PinAssembly(); | |
| translate([0,0,Battery.z + Gap]) | |
| Lid(); | |
| } | |
| if (Layout == "Build") { | |
| translate([-(CaseSize.x/2 + CaseOffset.x),-(CaseOffset.y – BuildOffset),BaseThick]) | |
| Case(); | |
| translate([CaseSize.y/2,(CaseOffset.x/2 – BuildOffset),0]) | |
| rotate([0,0,90]) | |
| Lid(); | |
| } | |
| if (Layout == "Fit") { | |
| Case(); | |
| translate([0,0,(Battery.z + Gap)]) | |
| Lid(); | |
| color("Silver",0.25) | |
| PinAssembly(); | |
| } | |
