Kenmore 158 Sewing Machine: Another Foot Pedal Rebuild

The pedal on Mary’s most recent Kenmore 158 lost its low-speed control, which meant I must add a few more graphite / carbon disks to the stacks:

Kenmore 158 - carbon disks

Kenmore 158 – carbon disks

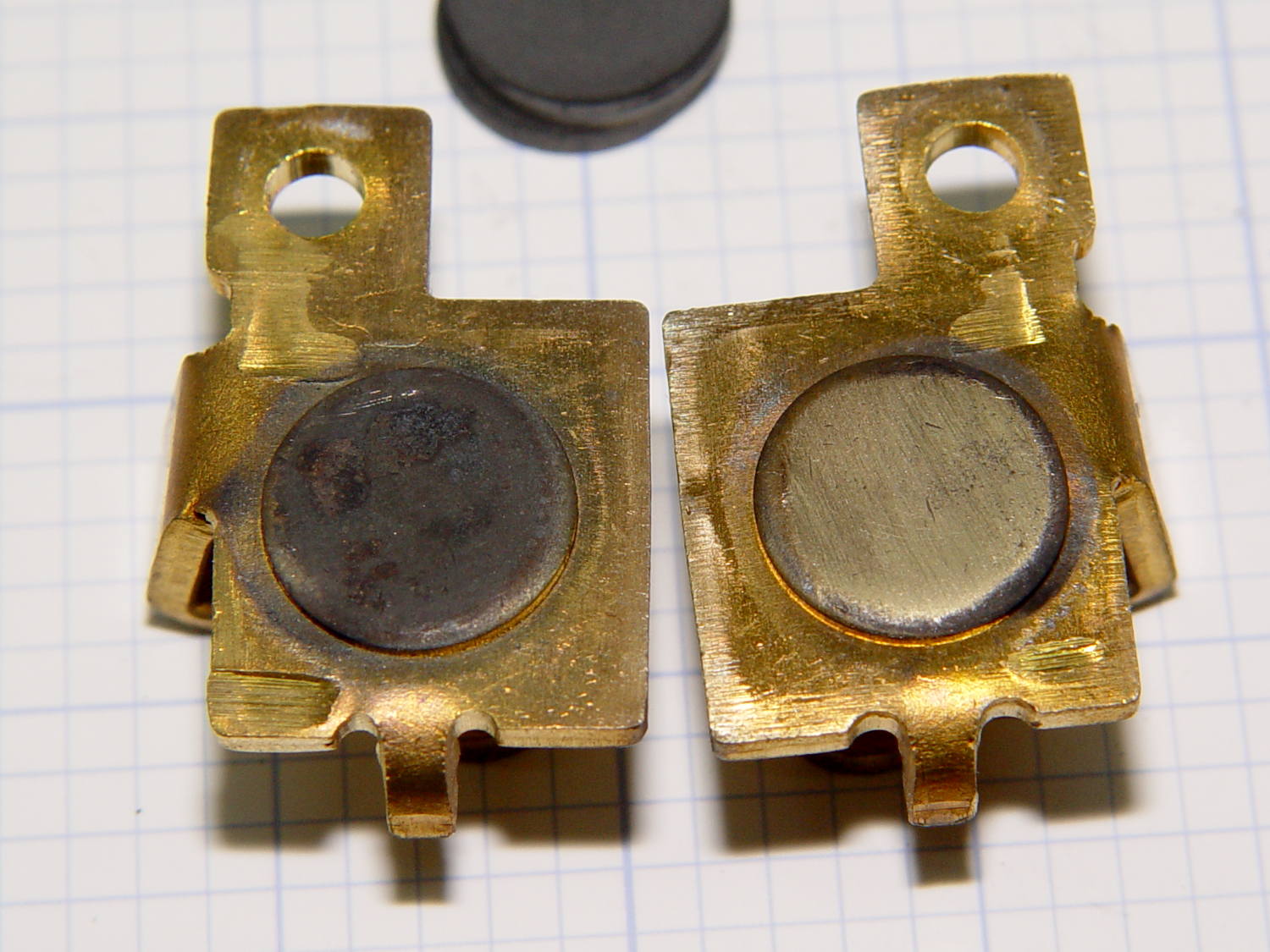

The contacts needed a bit of attention, too:

Kenmore 158 - carbon contact plates - detail

Kenmore 158 – carbon contact plates – detail

Contrary to what I found in the previous rheostats, these stacks end with a double-thick graphite disk backed up by a disk of brass shimstock, all of which needed cleaning, too. No broken disks, none severely eroded, no debris, just a general shortening of the stacks; I think the disks gradually turn into carbon dioxide.

Each stack has 42 graphite disks that average 0.79 mm thick, the double-thick disks measure 1.5 mm, and the brass shims are 0.30 mm = 12 mil. The punched contacts on those brass plates stand 0.95 mm proud of the surface.

With the big graphite plugs in place, the ceramic housing had 37 mm deep holes for the disk stacks. Subtracting the 0.95 mm contact leaves about 36 mm and, seeing as how the stacks add up to just under 36 mm overall, there’s barely room for one additional disk. I added one to each stack, buttoned the pedal up, and it works perfectly again.

Good thing I have a bag of those disks from the crash test dummy machine!
