American Standard Kitchen Faucet: Ceramic Valve

It seems everybody must disassemble an American Standard kitchen faucet to replace the spout seal O-rings, as my description of How It’s Done has remained in the top five most popular posts since I wrote it up in 2009.

About two years ago, I replaced the valve cartridge with a (presumably) Genuine Replacement; unlike the O-rings, the original valve lasted for nigh onto a decade. A few weeks ago, the replacement valve began squeaking and dribbling: nothing lasts any more. Another (presumably) Genuine Replacement, this time from Amazon, seems visually identical to the previous one and we’ll see how long it lasts.

I always wondered what was inside those faucets and, after breaking off the latching tabs in the big housing to the upper right, now I know:

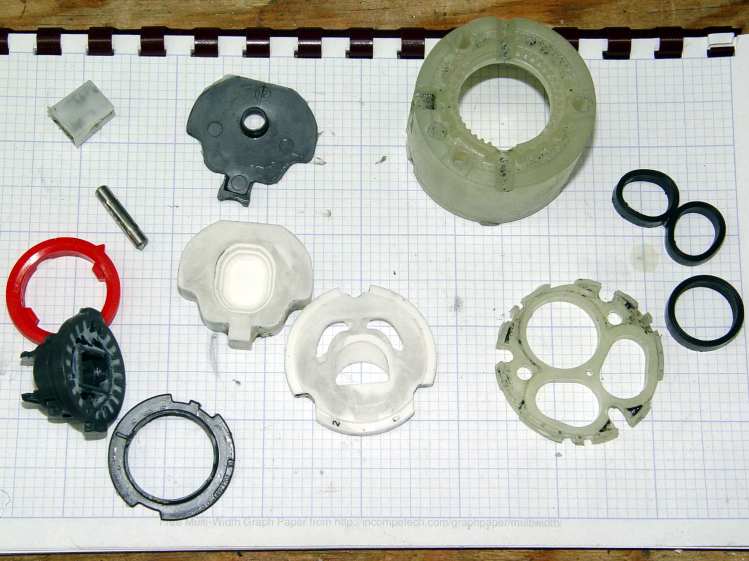

American Standard Faucet - disassembled

American Standard Faucet – disassembled

You get a bunch of stuff for twelve bucks! The stainless steel valve actuator is off to the right, still grabbed in the bench vise.

The valve action comes from those two intricate ceramic blocks with a watertight sliding fit:

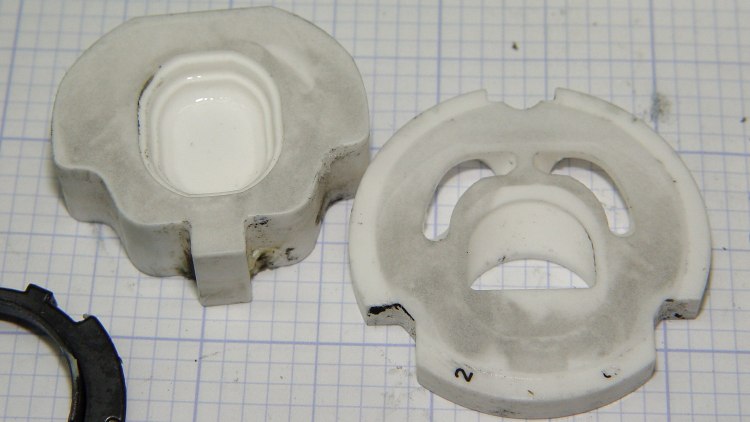

American Standard Faucet - ceramic valve parts

American Standard Faucet – ceramic valve parts

In fact, you (well, I) can wring the slabs together, just like a pair of gauge blocks. That kind of ultra-smooth surface must be useful for some other purpose, even though I can’t imagine what it might be…
