Sears Sewing Table: Sewing Machine Supports

For reasons that should not require explanation by now, Mary just acquired a large sewing table (along with a Sears Kenmore Model 158 sewing machine that’s slightly older and fancier than the three we already have). The table has an opening fitted to the machine base, but the rubber pads atop the leveling screws had long since stiffened up and two screws were frozen in place. A few drops of penetrating oil released the screws and, mirable dictu, they have ordinary 6-32 threads.

Some rummaging turned up four PC case screws and soft caps intended for wire shelves, which easily combined into replacement machine supports:

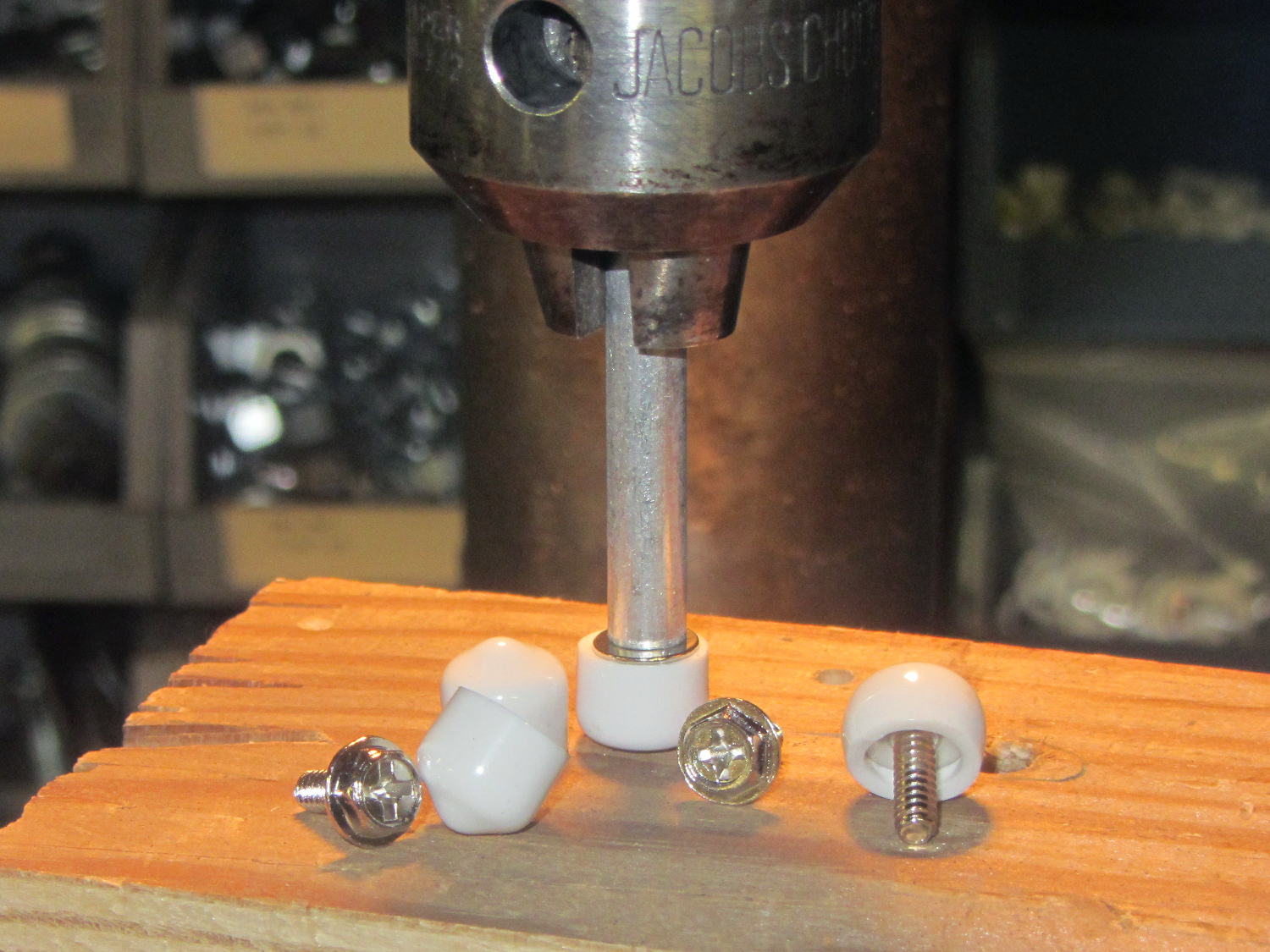

Sewing Machine Supports - inserting screws
Sewing Machine Supports – inserting screws

Once again, I’m using the drill press as a low-force arbor press, with a chunk of aluminum tubing to shove the screw flange into the slightly smaller plastic cap.

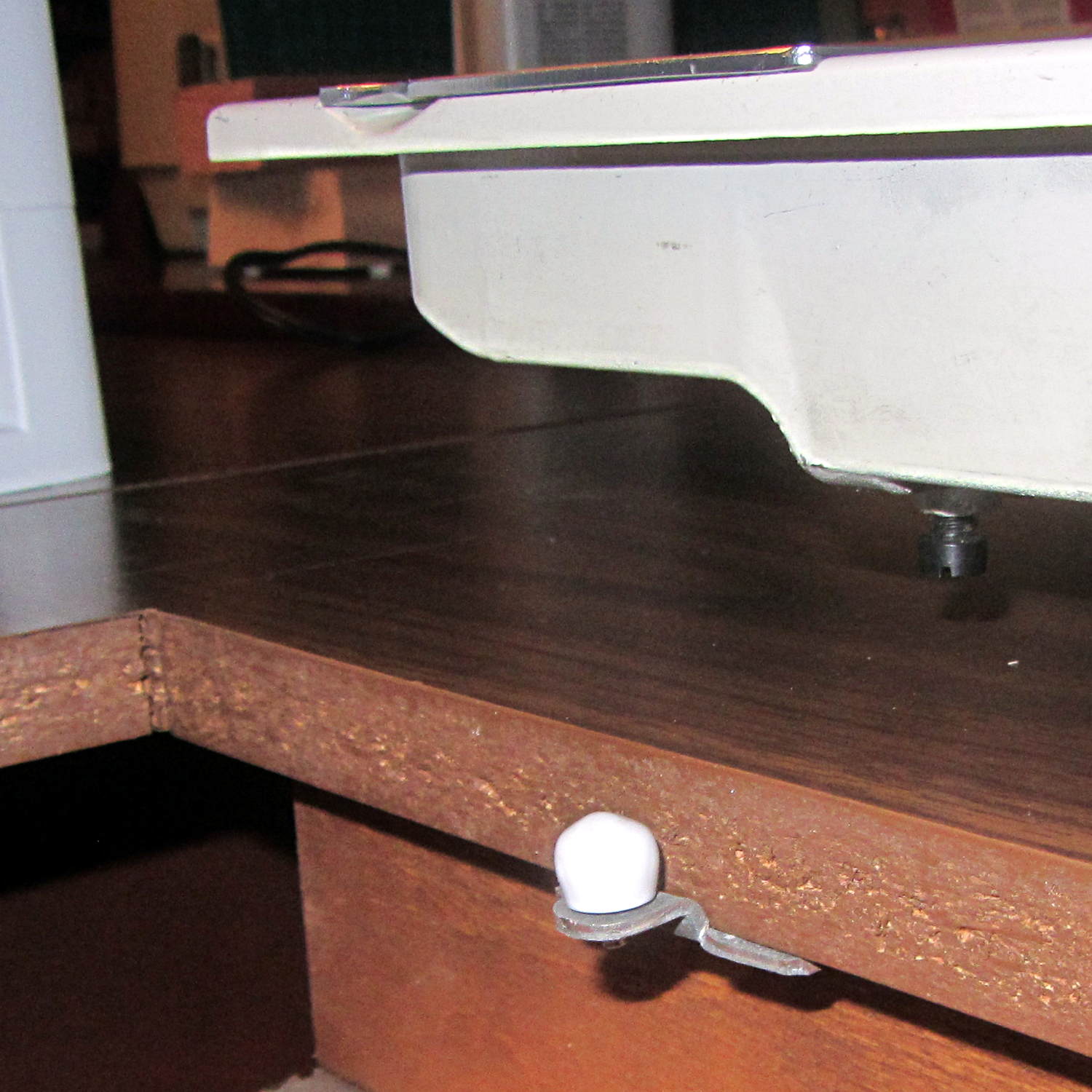

Spun into their brackets, they look quite nice, not that anybody will ever see them:

Sewing Machine Supports - installed
Sewing Machine Supports – installed

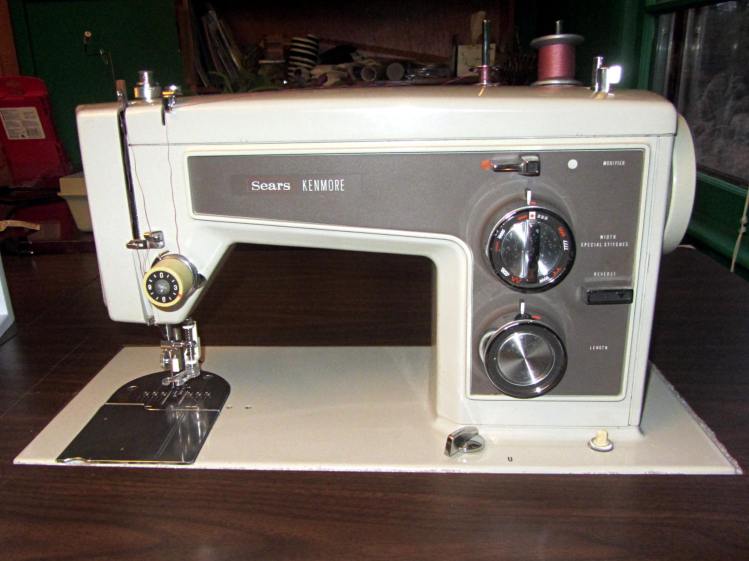

The new-to-us table replaces the incredible collection of junk previously supporting Machine #3. I tucked some plastic foam around the near and right edges to fill the small gaps and it fits well:

Sewing Machine Supports - machine installed
Sewing Machine Supports – machine installed

Obviously, the foam will fall out whenever Mary lifts the machine to tinker with machinery under the platform, so we’ll see how often pins & needles slip through the cracks without the foam.

That machine awaits a lighting update, because I’m awaiting some rectangular chip-on-board LED strips from halfway around the planet.

Early reports concerning the sewing table seem promising…
