Victoreen 710-104 Ionization Chamber: Shield Enclosure

Lining the shield support box with copper foil tape turned out to be surprisingly easy:

Electrometer amp - shield - end view

Electrometer amp – shield – end view

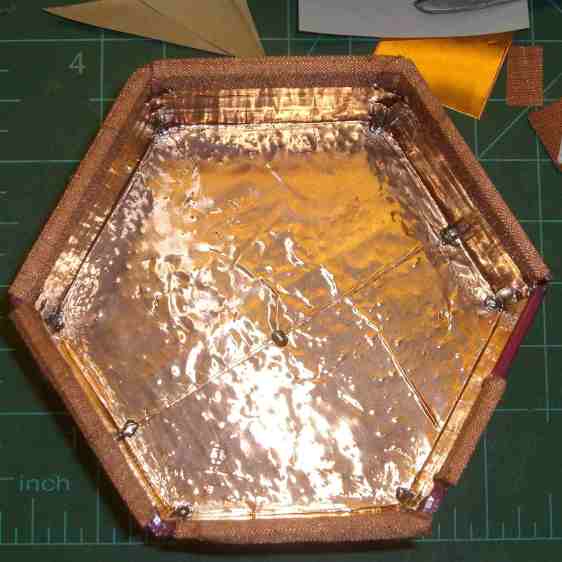

The flat surface is two overlapping strips of 2 inch wide copper tape. I traced the exterior of the support box on the tape, cut neatly along the lines, slit the corners, bent the edges upward, peeled off the backing paper, stuck the tape into the box, pressed the edges into the corners, and didn’t cut myself once.

Applying 1 inch wide tape to the wall went just as smoothly, after I realized that I should cut it into strips just slightly longer than the hexagon’s sides.

The tape along the rim is adhesive copper mesh that’s springy enough to make contact all around the edge. I cut the 1 inch wide tape in half, which was just barely wide enough to reach::

Electrometer amp - shield - mesh soldering

Electrometer amp – shield – mesh soldering

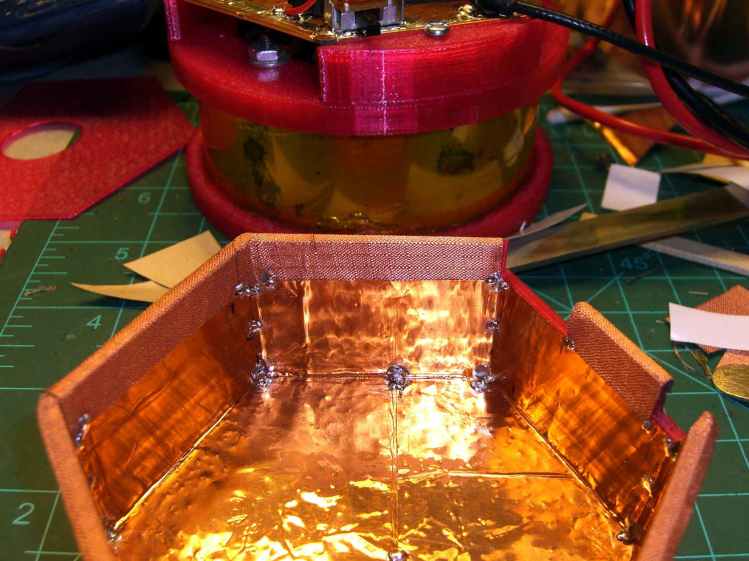

Although you’re supposed to join the entire length of each seam for best RF-proofing, I tacked the corners and the middle of the long edge, then hoped for the best. The copper mesh seems to be plated on plastic threads that requires a fast hand to solder without melting, but I’m getting better at it. The adhesive is said to be conductive, but I loves me some good solder blob action.

The resistance from the flat bottom to the side panels and the fabric on the edge started out at a few ohms before soldering and dropped to 0.0 Ω after soldering, so I’ll call it a success. Didn’t even melt the outside of the PETG box, but I admit I didn’t take it apart to see what the copper-to-PETG surface looks like.

Covering the foil on the sides with 1 inch Kapton tape completed the decoration. I didn’t bother to cover the flat surface, because none of the circuitry should reach that far, and didn’t worry about covering the fabric tape for similar reasons. As madbodger pointed out, this violates the no-plastic-on-the-inside rule, but I’m still hoping for better results than having the entire plastic structure with all its charges on the inside.

A strip of horribly clashing orange plastic tape (which might be splicing tape for reel-to-reel recording tape) covers the outside edges of the fabric, prevents fraying, and gives the black electrical tape that holds the box down a solid grip:

Electrometer amp - shield - exterior

Electrometer amp – shield – exterior

Yeah, like you’d notice mismatched colors around here.

Using black tape as an anchor seemed easier and better than messing with nesting pins & sockets. The copper fabric tape makes good contact with the rim of the PCB all the way around the perimeter and the black tape holds it firmly in place.

Early reports suggest the shield works pretty well…
