Vacuum cleaner dust brushes, separated by millimeters and decades:

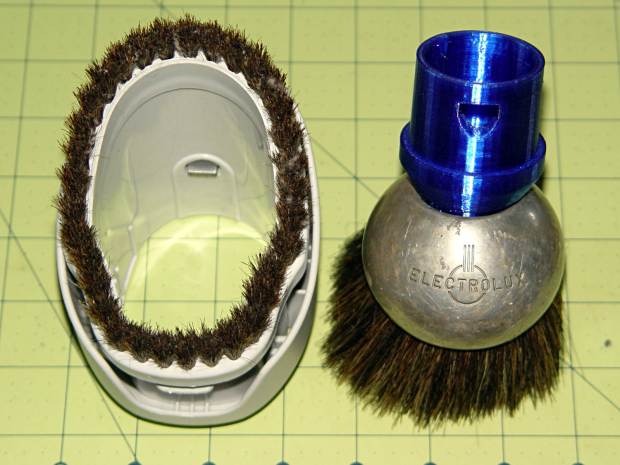

Kenmore vs adapted Electrolux dust brushes

The bulky one on the left came with our new Kenmore Progressive vacuum cleaner. It’s fine for dust on a flat horizontal or vertical surface and totally useless for dust on actual objects. It’s supposed to snap around the handle at the end of the cleaner’s flexy hose, where it helps make the entire assembly too large and too clumsy, or on the end of the “wand”, where it’s at the wrong angle. The bonus outer shell slides around the stubby bristles in the unlikely event they’re too long for the flat surface at hand.

The brush on the right emerged from the Box o’ Electrolux Parts that Came With The House™, must be half a century old, and consists of a cast aluminum lump with various holes milled into it, adorned with luxuriously long and flexible horsehair. Suffice it to say they don’t make ’em like that any more. Heck, they probably don’t make horses with hair like that any more, either.

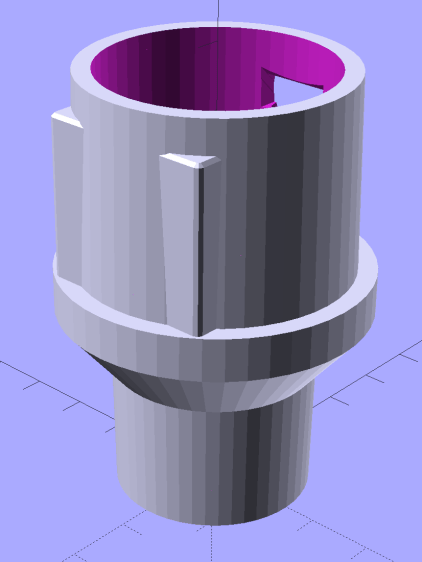

The blue plastic adapter atop the aluminum ball looks like you’d expect by now:

The short snout fits neatly into the space available inside the ball. The abrupt ledge at the top of the snout, of course, didn’t work well; I rushed the design for a show-n-tell.

The OpenSCAD source code (as a Github gist) bevels that ledge and tweaks the interior air channel a bit:

	// Kenmore vacuum cleaner nozzle adapters
	// Ed Nisley KE4ZNU December 2015

	// Layout options

	Layout = "LuxBrush"; // MaleFitting CoilWand FloorBrush CreviceTool ScrubbyTool LuxBrush

	//- Extrusion parameters must match reality!
	// Print with +1 shells and 3 solid layers

	ThreadThick = 0.25;
	ThreadWidth = 0.40;

	HoleWindage = 0.2;

	function IntegerMultiple(Size,Unit) = Unit * ceil(Size / Unit);

	Protrusion = 0.1; // make holes end cleanly

	//———————-
	// Dimensions

	ID1 = 0; // for tapered tubes
	ID2 = 1;
	OD1 = 2;
	OD2 = 3;
	LENGTH = 4;

	OEMTube = [35.0,35.0,41.7,40.5,30.0]; // main fitting tube
	EndStop = [OEMTube[ID1],OEMTube[ID2],47.5,47.5,6.5]; // flange at end of main tube

	FittingOAL = OEMTube[LENGTH] + EndStop[LENGTH];

	$fn = 12*4;

	//———————-
	// Useful routines

	module PolyCyl(Dia,Height,ForceSides=0) { // based on nophead's polyholes

	Sides = (ForceSides != 0) ? ForceSides : (ceil(Dia) + 2);

	FixDia = Dia / cos(180/Sides);

	cylinder(r=(FixDia + HoleWindage)/2,
	h=Height,
	$fn=Sides);
	}


	//——————-
	// Male fitting on end of Kenmore tools
	// This slides into the end of the handle or wand and latches firmly in place

	module MaleFitting() {

	Latch = [40,11.5,5.0]; // rectangle latch opening
	EntryAngle = 45; // latch entry ramp
	EntrySides = 16;
	EntryHeight = 15.0; // lower edge on inside of fitting

	KeyRadius = 1.0;

	translate([0,0,6.5])
	difference() {
	union() {
	cylinder(d1=OEMTube[OD1],d2=OEMTube[OD2],h=OEMTube[LENGTH]); // main tube

	hull() // insertion guide
	for (i=[-(6.0/2 – KeyRadius),(6.0/2 – KeyRadius)],
	j=[-(28.0/2 – KeyRadius),(28.0/2 – KeyRadius)],
	k=[-(26.0/2 – KeyRadius),(26.0/2 – KeyRadius)])
	translate([(i – (OEMTube[ID1]/2 + OEMTube[OD1]/2)/2 + 6.0/2),j,(k + 26.0/2 – 1.0)])
	sphere(r=KeyRadius,$fn=8);

	translate([0,0,-EndStop[LENGTH]]) // wand tube butts against this
	cylinder(d=EndStop[OD1],h=EndStop[LENGTH] + Protrusion);
	}

	translate([0,0,-OEMTube[LENGTH]]) // main bore
	cylinder(d=OEMTube[ID1],h=2OEMTube[LENGTH] + 2Protrusion);

	translate([0,-11.5/2,23.0 – 5.0]) // latch opening
	cube(Latch);

	translate([OEMTube[ID1]/2 + EntryHeight/tan(90-EntryAngle),0,0]) // latch ramp
	translate([(Latch[1]/cos(180/EntrySides))cos(EntryAngle)/2,0,(Latch[1]/cos(180/EntrySides))sin(EntryAngle)/2])
	rotate([0,-EntryAngle,0])
	intersection() {
	rotate(180/EntrySides)
	PolyCyl(Latch[1],Latch[0],EntrySides);
	translate([-(2*Latch[0])/2,0,-Protrusion])
	cube(2*Latch[0],center=true);
	}
	}
	}

	//——————-
	// Refrigerator evaporator coil wand

	module CoilWand() {

	union() {
	translate([0,0,50.0])
	rotate([180,0,0])
	difference() {
	cylinder(d1=EndStop[OD1],d2=42.0,h=50.0);
	translate([0,0,-Protrusion])
	cylinder(d1=35.0,d2=35.8,h=100);
	}
	translate([0,0,50.0 – Protrusion])
	MaleFitting();
	}
	}


	//——————-
	// Refrigerator evaporator coil wand

	module FloorBrush() {

	union() {
	translate([0,0,60.0])
	rotate([180,0,0])
	difference() {
	union() {
	cylinder(d1=EndStop[OD1],d2=32.4,h=10.0);
	translate([0,0,10.0 – Protrusion])
	cylinder(d1=32.4,d2=30.7,h=50.0 + Protrusion);
	}
	translate([0,0,-Protrusion])
	cylinder(d1=28.0,d2=24.0,h=100);
	}
	translate([0,0,60.0 – Protrusion])
	MaleFitting();
	}
	}


	//——————-
	// Crevice tool

	module CreviceTool() {

	union() {
	translate([0,0,60.0])
	rotate([180,0,0])
	difference() {
	union() {
	cylinder(d1=EndStop[OD1],d2=32.0,h=10.0);
	translate([0,0,10.0 – Protrusion])
	cylinder(d1=32.0,d2=30.4,h=50.0 + Protrusion);
	}
	translate([0,0,-Protrusion])
	cylinder(d1=28.0,d2=24.0,h=100);
	}
	translate([0,0,60.0 – Protrusion])
	MaleFitting();
	}
	}

	//——————-
	// Mystery brush

	module ScrubbyTool() {

	union() {
	translate([0,0,60.0])
	rotate([180,0,0])
	difference() {
	union() {
	cylinder(d1=EndStop[OD1],d2=31.8,h=10.0);
	translate([0,0,10.0 – Protrusion])
	cylinder(d1=31.8,d2=31.0,h=50.0 + Protrusion);
	}
	translate([0,0,-Protrusion])
	cylinder(d1=26.0,d2=24.0,h=100);
	}
	translate([0,0,60.0 – Protrusion])
	MaleFitting();
	}
	}


	//——————-
	// Electrolux brush ball

	module LuxBrush() {

	union() {
	translate([0,0,30.0])
	rotate([180,0,0])
	difference() {
	union() {
	cylinder(d1=EndStop[OD1],d2=30.8,h=10.0);
	translate([0,0,10.0 – Protrusion])
	cylinder(d1=30.8,d2=30.0,h=20.0 + Protrusion);
	}
	translate([0,0,-Protrusion])
	cylinder(d1=25.0,d2=23.0,h=30 + 2*Protrusion);
	}
	translate([0,0,30.0 – Protrusion])
	MaleFitting();
	}
	}



	//———————-
	// Build it!

	if (Layout == "MaleFitting")
	MaleFitting();

	if (Layout == "CoilWand")
	CoilWand();

	if (Layout == "FloorBrush")
	FloorBrush();

	if (Layout == "CreviceTool")
	CreviceTool();

	if (Layout == "ScrubbyTool")
	ScrubbyTool();

	if (Layout == "LuxBrush")
	LuxBrush();

view raw Kenmore Wand Bushings.scad hosted with ❤ by GitHub

That’s supposed to prevent the WordPress post editors from destroying the formatting…
