Our Larval Engineer stopped by, on her way to a half-year co-op job out around Route 128, and devoted a few days to merge-sorting / triaging her possessions. Having shown her the HP 74754A plotter project, she later dropped a bag o’ stuff on my desk without comment:
The perforated pen holder stuck to the plotter case (hey, it would still fit!) in front of the carousel with a bit of foam tape on an angled bracket you can’t quite see. It held 15 pens at the ready: I really used that plotter.
The doodle on the yellow sheet sketches a bulky adapter between the spindle nose thread on the Sherline CNC mill and a plotter cartridge. The flange-less pen body might just fit into the spindle bore, but I remember concluding that machining pen bodies or adapters wasn’t worth the effort. Now it’s a simple matter of some OpenSCAD source code and a few hours of hands-off production, so perhaps I should re-think that.
No dates on anything, but I got the Sherline in 2004. The pen holder probably dates back to the late 80s, shortly after I got the plotter. Most likely, I gave her the bag o’ stuff and told her to make something interesting; it could still happen…
A while back, Keith Ward sent a Big Box o’ Plotter Pens that:

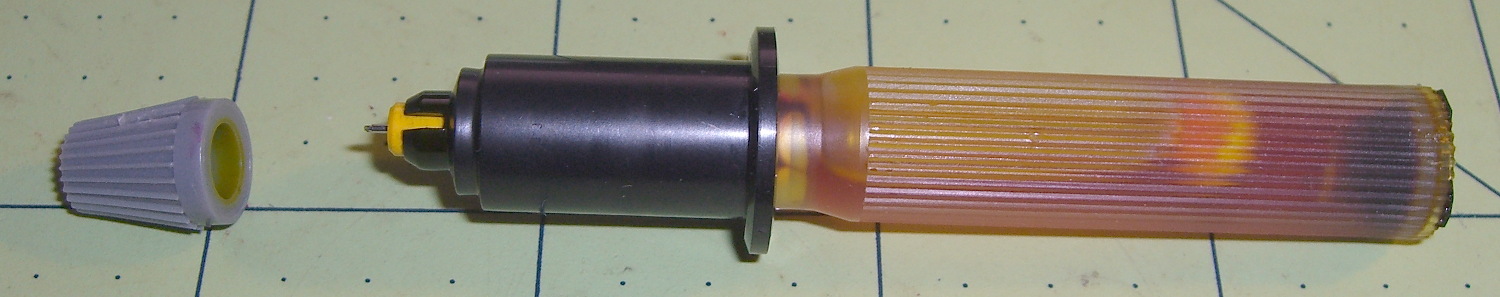

After a bit of sorting, I had a quartet of “disposable” liquid ink pens with contents ranging from desiccated to gummy. With nothing to lose (and having already cut a clearance slot in the plotter case), I drilled a small hole in the top of each reservoir, squirted some inkjet printer ink into the void, and taped the hole closed.
Surprisingly, a little liquid love restored all but the black pen to working condition, if not perfect heath:
I think the blurred white disk floating in the reservoir sealed the end where you jam the tip in place to activate the pen. The blob of dark gunk shows the reservoir didn’t start with yellow ink, but I had nothing to lose.

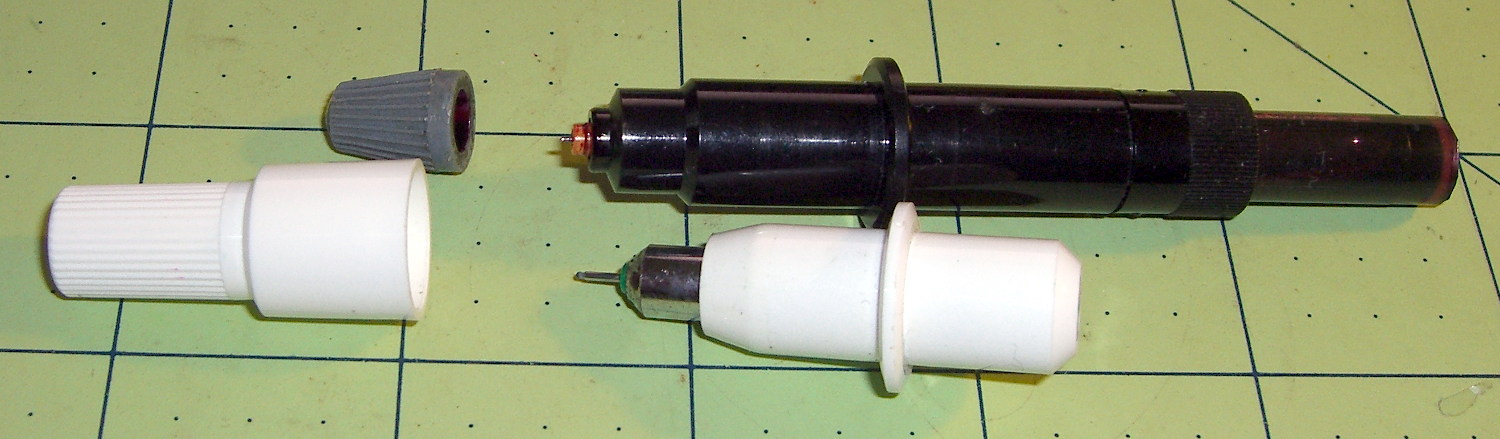

The top pen in this picture is another style / brand with a smaller reservoir:
The white pen in the foreground has a 0.3 mm ceramic tip, contains its original green ink, and works as well as it ever did; it might be refillable, too.

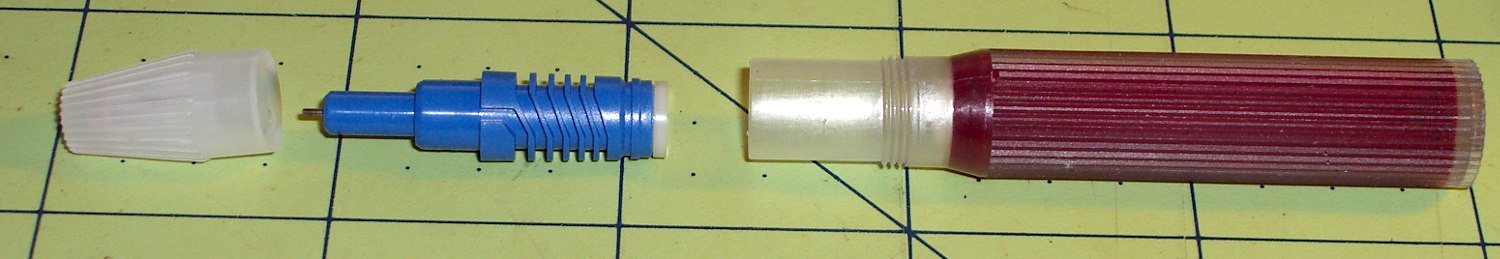

The liquid-ink pens have a serpentine vent in the tip. This is a Genuine New-Old-Stock pen in a four-pen case labeled HP 5061-7566:
The serpentine path connects the exterior vent opening (facing you) to a tiny hole (on the other side of the blue shaft) into the ink chamber. As it turns out, a new hole drilled in the reservoir admits enough air to drain the (freshly refilled) liquid ink through the serpentine path all over the workbench. Having some experience with refilling inkjet cartridges, I deployed a towel decorated with colorful splotches in anticipation of such an unexpected event, although my fingers looked considerably more cheerful than usual for a few days.

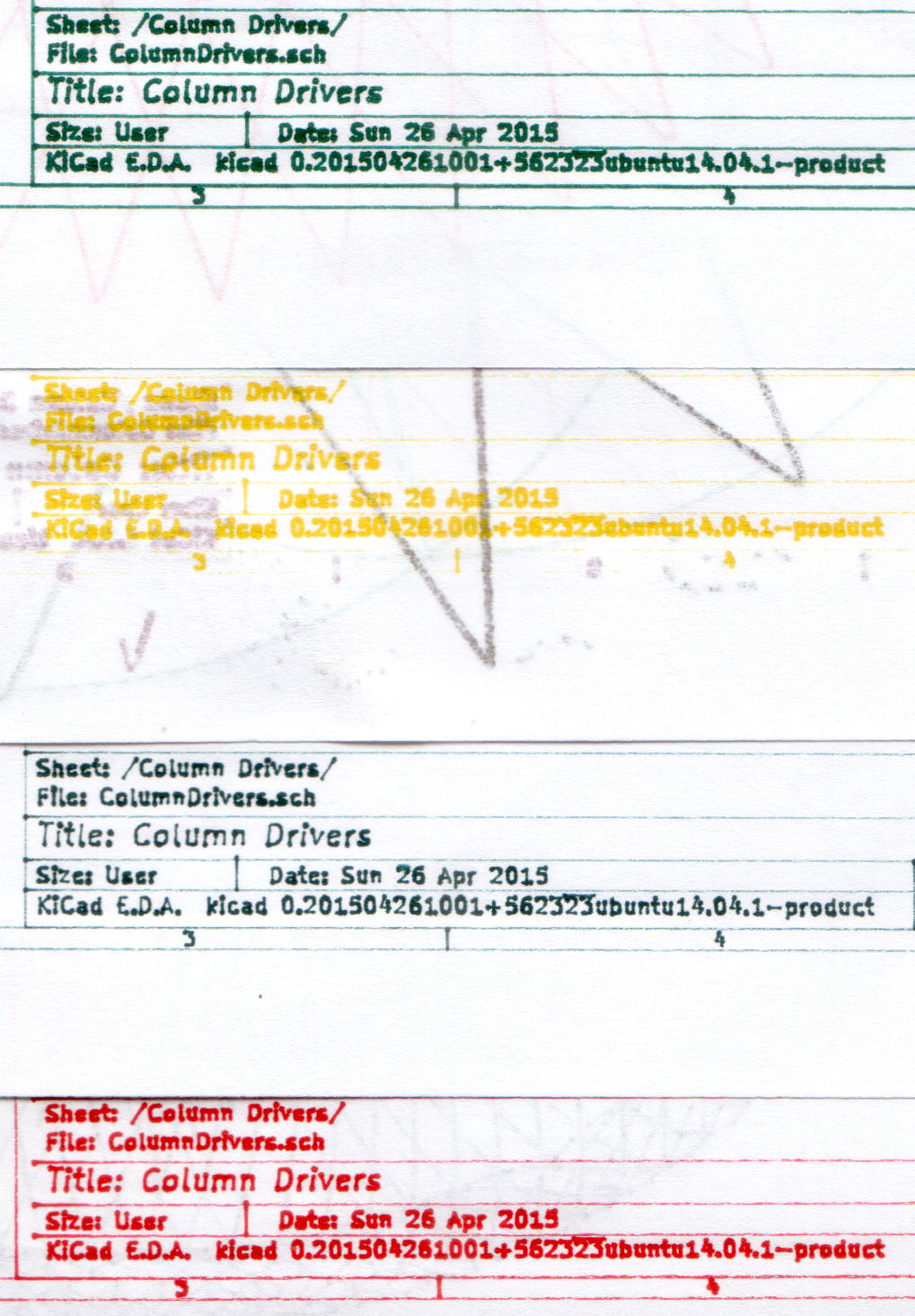

The black pen never worked quite right, but the other three did fine. The ceramic pen is at the top:
Protip: the blown contrast and rear-surface bleedthrough behind the yellow ink should tell you it isn’t visible in normal room light. I must mix yellow with another color if I ever refill that pen that again.
KiCad uses only one pen for the entire schematic, even when you select “plot in color”, suggesting nobody has sent the “plotter” output stream to an actual plotter in a long, long time.
Despite the charm of watching the plotter crank out an entire schematic page, it’s not a compelling enough user experience to replace an inkjet printer. For an art project, one might be seeking an entirely different user experience and the answer might be different, too.
Selah.
