Layered Paper: Inkscape Random Block Setup

The random block layered paper design starts as an Inkscape layout, although the amount of manual intervention required to make it happen suggests it’s not really worthwhile. With that in mind, this is how to make it happen …

Draw a 9×9 mm square with these properties:

• Undefined fill: each block will become different
• Flat color stroke set to black with 100% alpha
• 0.2 mm stroke width: so LightBurn will see it

Because the squares will be on 10 mm centers, draw a 159 mm square:

• No fill (this is different from Undefined fill)
• Flat color stroke set to LightBurn T2 color
• 0.2 mm stroke width

Align the big square on the grid, which should have 10 mm spacing because that’s convenient. This will become the way you align the array of squares in the LightBurn layout, so you really want the array to fit neatly and symmetrically inside the 159 mm square.

Iterate 16 times, all in T2 layer color:

• Create a layer with a name like H000 through H337
• Create a corresponding text string
• Align fussily
• Duplicate the 159 mm square
• Put the block and the text string on the new layer
• Lock the square and text so they can’t move

Which will look like this:

Unlike LightBurn, the color is not linked directly to the layer, so each of those text strings is on the corresponding named layer and there are 16 duplicates of the large box at exactly the same coordinates. Plus the original 159 mm square, which remains unlabeled and unlocked.

Select the black 9 mm block and create a 16×16 clone army array:

The Initial Color is critical:

The layer names come from the 6.25% hue steps, starting with H=0, which will look like this:

Note that LightBurn absolutely does not care about the colors. All it will get is the outlines corresponding to the strokes, with the colors collecting them into separate groups for the paper layers.

Go to the Layers window, select the original block (which is likely on Layer 1 or some such), cut it, and paste it somewhere outside the 159 mm square where it won’t cause any trouble.

Iterate 16 times in the Layers window:

• Select one of the 256 clone squares, which will have an automagic name like use1272
• Right-click, hit Select Same → Fill Color
• Right-click, hit Move to Layer …
• Pick the layer name matching the hue

Select all the squares and Distribute randomly:

Then Align them in a grid:

The 0.8 mm Spacing is the distance between 9 mm blocks with 0.2 mm strokes.

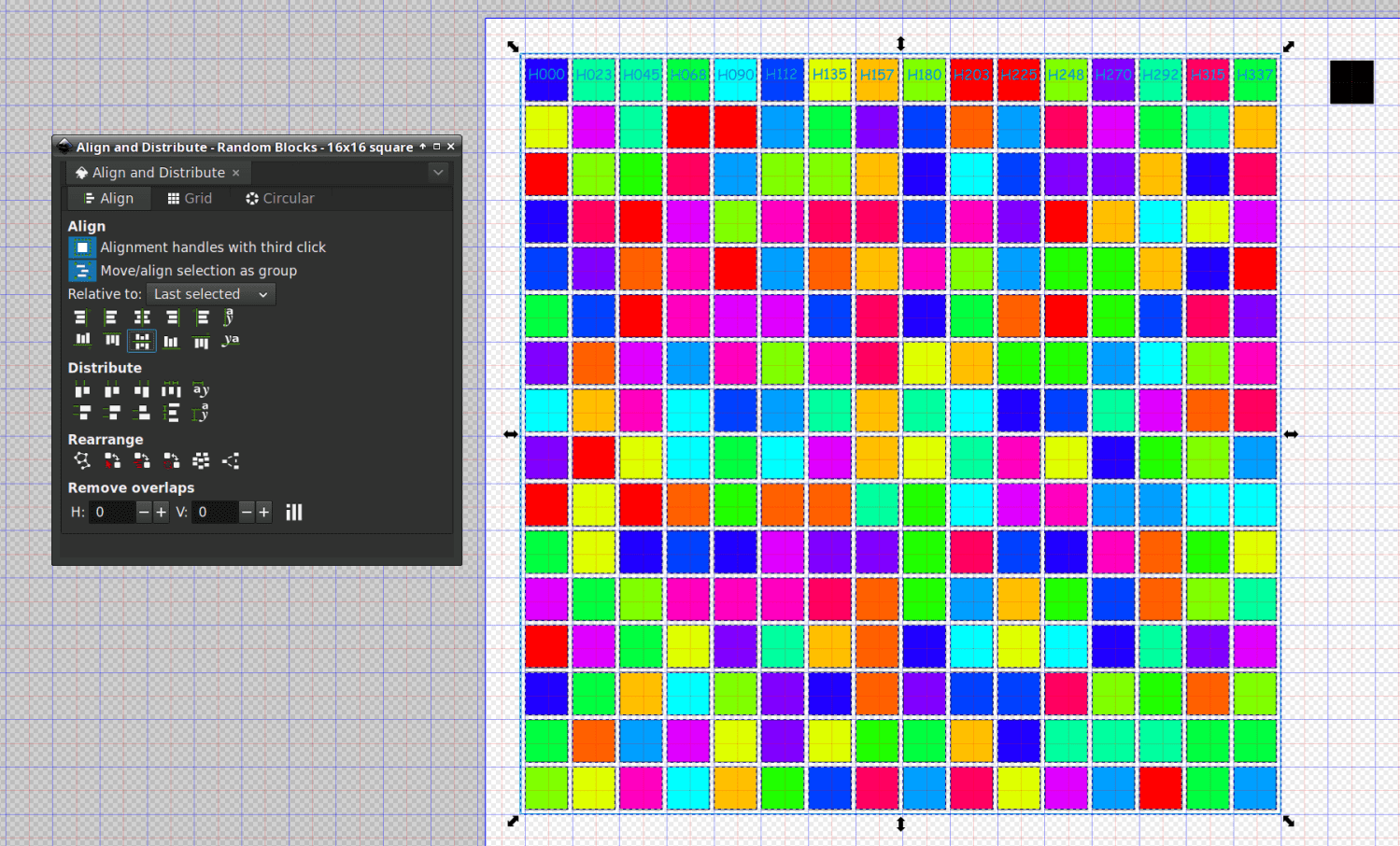

Shift-click on the 159 mm square to add it to the selection, then hit the two center-align buttons to center the 16×16 array in the square:

Save that sucker as an Inkscape SVG and it’s ready to import into lightBurn.

With all that done, you can generate different random layouts by:

• Select the existing 16×16 array (but not the outer 159 mm square; Undo is your friend)
• Randomize the array
• Align it
• Center it

The colored blocks remain in their corresponding layers, so you need not go through all that overhead ever again.

Whether that’s worthwhile is up for grabs, but now I have a faint chance of getting it right the next time.
