PolyDryer Humidity: Alumina vs. PETG-CF

A pair of PolyDryer boxes has been holding black and gray PETG-CF for a while:

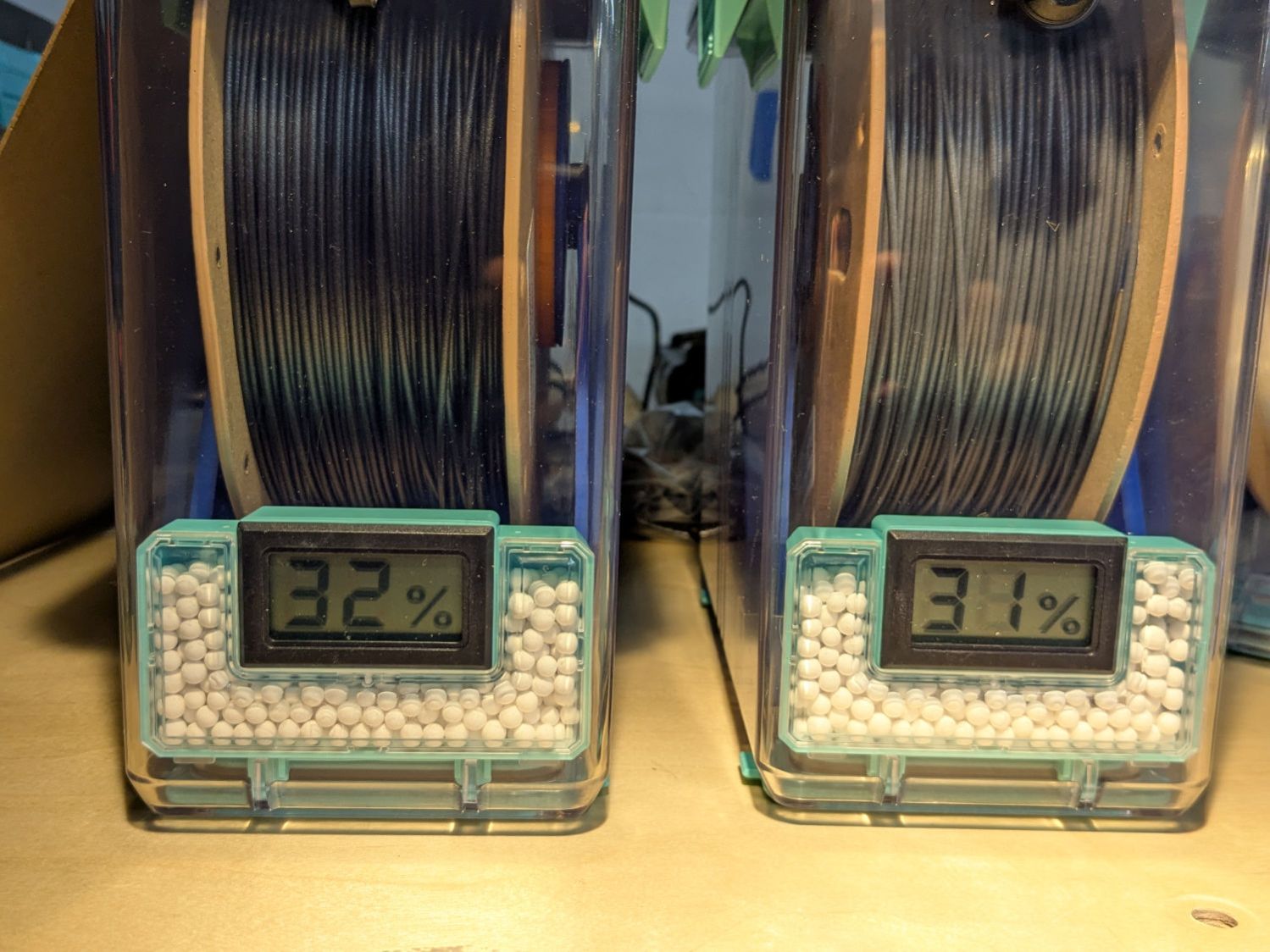

PolyDryer - PETG-CF - 32 pctRH Black 31 pctRF Gray
PolyDryer – PETG-CF – 32 pctRH Black 31 pctRF Gray

A few days ago I slipped humidity indicator cards into the boxes:

The black PETG-CF card suggests 30 to 40 %RH:

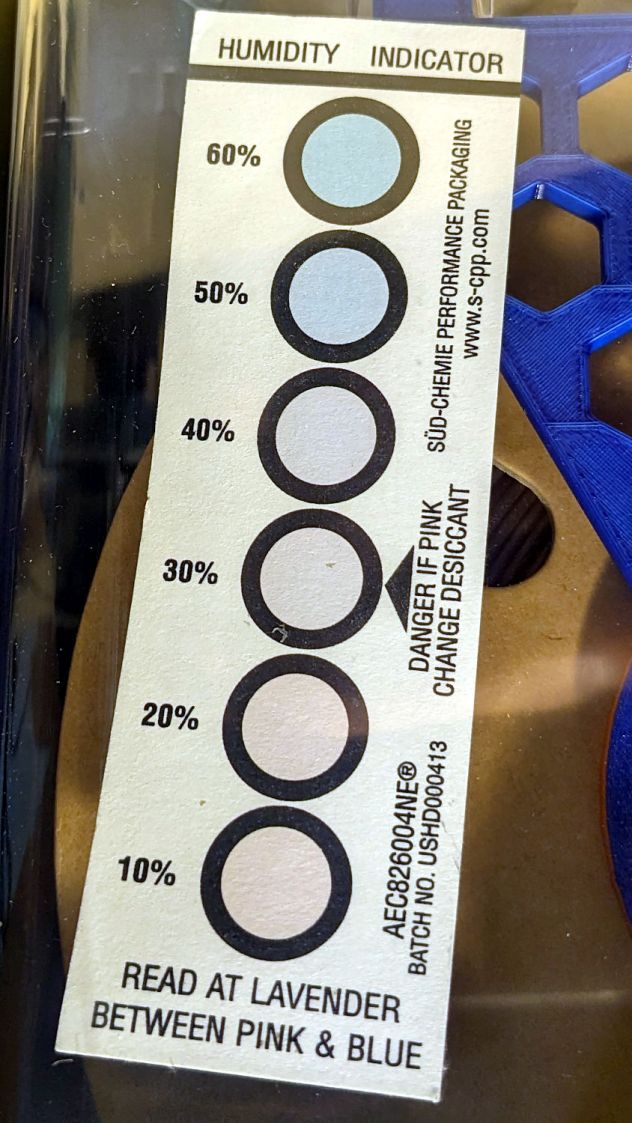

PolyDryer - PETG-CF - 32 pctRH Black test card
PolyDryer – PETG-CF – 32 pctRH Black test card

Yes, I dropped that card into the box upside-down.

The gray PETG-CF card shows similar results:

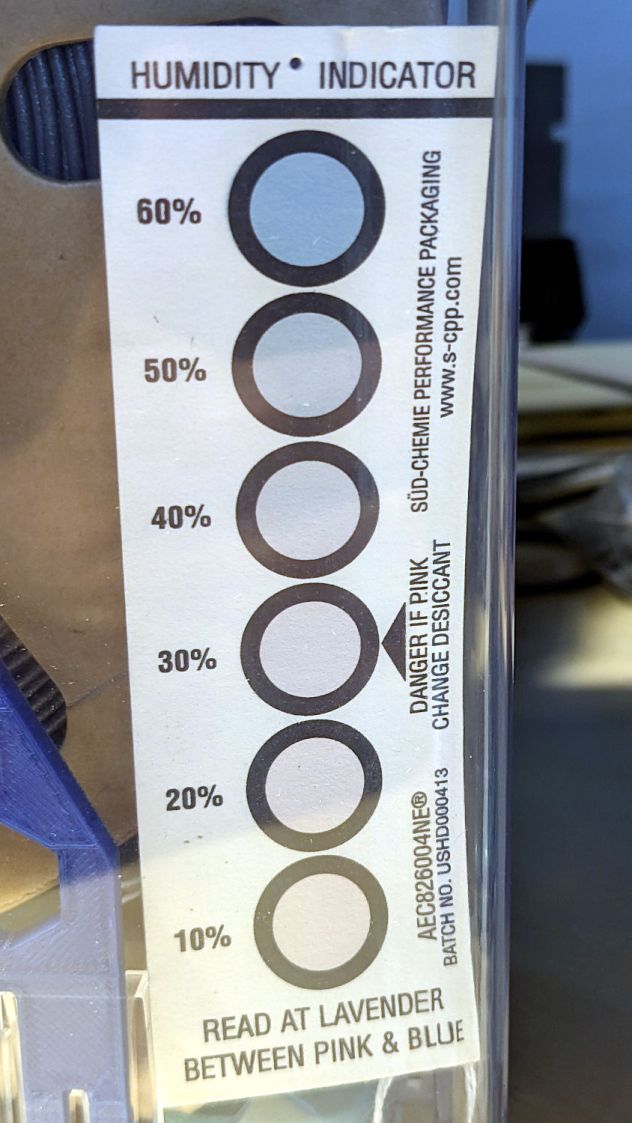

PolyDryer - PETG-CF - 31 pctRF Gray test card
PolyDryer – PETG-CF – 31 pctRF Gray test card

The desiccant in the black PETG-CF box weighed 80.9 g, a gain of 5.9 g = 10.8%. The chart suggests that corresponds to 35 to 40 %RH:

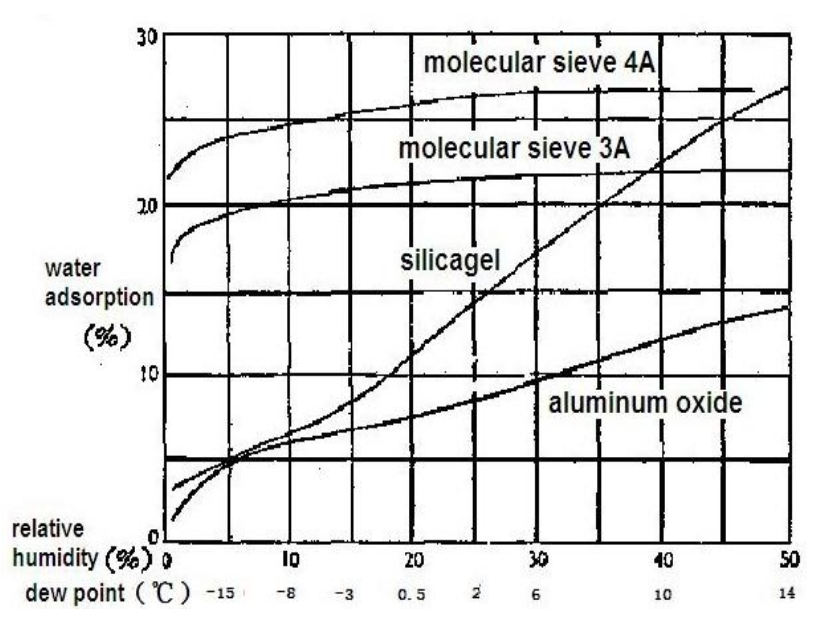

Desiccant adsorption vs humidity
Desiccant adsorption vs humidity

The gray PETG-CF box had 102.0 g of desiccant. I apparently loaded 25 g in the meter container and 70 g in seven tea bags, but I don’t trust those numbers enough to go any further.

Unlike the black PETG box mismatch, these black PETG-CF numbers seem plausible. The results may depend on allowing far more time for the filament + air to equilibrate with the desiccant tucked in its containers than the days I’ve been giving it.
