Dropping a simplified ping-pong ball radome for a Piranha RGB LED atop a discrete LM3909 on the AA alkaline cell holder:

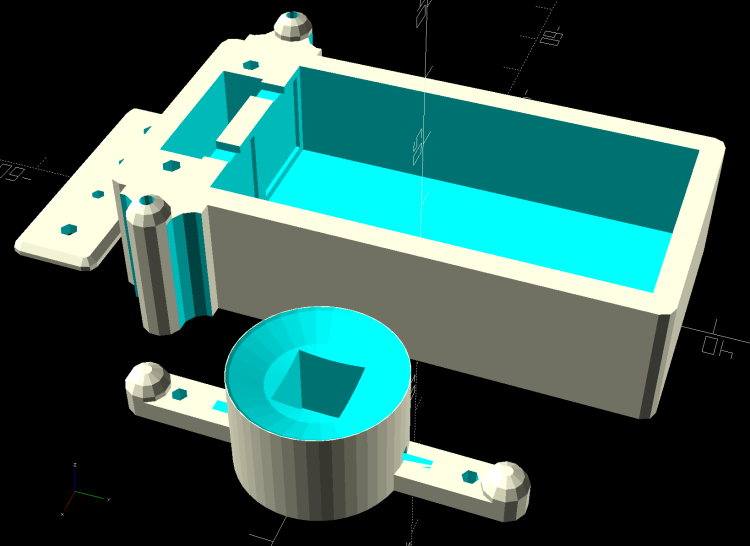

The solid model has screw holes for the lid and the revised LED spider:
The RGB LED needs only two wires, as the LM3909 circuit can blink only one LED. I tried all three colors, but only blue and green justify the LM3909 hairball; red can get along with the astable circuit.
The LED wires connect across a 1 MΩ resistor serving as a mechanical strut between the 9.1 kΩ resistor on the left and the 10 Ω ballast resistor on the right.
Fresh alkaline cells at 3.0 V put 3.3 V across the blue LED with a 37 mA peak current. Older cells at 2.3 V produce 2.9 V at 15 mA. Dead cells at 1.9 V still fire the LED with 2.7 V at 4.2 mA, although the flash is barely visible in ordinary room light.
The lovely blue ball looks better in person!
The OpenSCAD source code as a GitHub Gist:
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| // Astable Multivibrator | |
| // Holder for Alkaline cells | |
| // Ed Nisley KE4ZNU August 2020 | |
| // 2020-09 add LED radome | |
| /* [Layout options] */ | |
| Layout = "Build"; // [Build,Show,Lid,Spider] | |
| /* [Hidden] */ | |
| CellName = "AA"; // [AA] — does not work with anything else | |
| NumCells = 2; // [2] — likewise | |
| Struts = -1; // [0:None, -1:Dual, 1:Quad] — Quad is dead | |
| // Extrusion parameters | |
| /* [Hidden] */ | |
| ThreadThick = 0.25; | |
| ThreadWidth = 0.40; | |
| HoleWindage = 0.2; | |
| function IntegerMultiple(Size,Unit) = Unit * ceil(Size / Unit); | |
| function IntegerLessMultiple(Size,Unit) = Unit * floor(Size / Unit); | |
| Protrusion = 0.1; // make holes end cleanly | |
| inch = 25.4; | |
| //- Basic dimensions | |
| WallThick = IntegerMultiple(3.0,ThreadWidth); | |
| CornerRadius = WallThick/2; | |
| FloorThick = IntegerMultiple(3.0,ThreadThick); | |
| TopThick = IntegerMultiple(2.0,ThreadThick); | |
| WireOD = 1.5; // battery & LED wiring | |
| WireOC = 4; | |
| Gap = 5.0; | |
| // Cylindrical cell sizes | |
| // https://en.wikipedia.org/wiki/List_of_battery_sizes#Cylindrical_batteries | |
| CELL_NAME = 0; | |
| CELL_OD = 1; | |
| CELL_OAL = 2; | |
| // FIXME search() needs special-casing to properly find AAA and AAAA | |
| // Which is why CellName is limited to AA | |
| CellData = [ | |
| ["AAAA",8.3,42.5], | |
| ["AAA",10.5,44.5], | |
| ["AA",14.5,50.5], | |
| ["C",26.2,50], | |
| ["D",34.2,61.5], | |
| ["A23",10.3,28.5], | |
| ["CR123A",17.0,34.5], | |
| ["18650",18.8,65.2], // bare 18650 with button end | |
| ["18650Prot",19.0,70.0], // protected 18650 = 19670 plus a bit | |
| ]; | |
| CellIndex = search([CellName],CellData,1,0)[0]; | |
| echo(str("Cell index: ",CellIndex," = ",CellData[CellIndex][CELL_NAME])); | |
| //- Contact dimensions | |
| CONTACT_NAME = 0; | |
| CONTACT_WIDE = 1; | |
| CONTACT_HIGH = 2; | |
| CONTACT_THICK = 3; // plate thickness | |
| CONTACT_TIP = 4; // tip to rear face | |
| CONTACT_TAB = 5; // solder tab width | |
| ContactData = [ | |
| ["AA+",12.2,12.2,0.3,1.7,3.5], // pos bump | |
| ["AA-",12.2,12.2,0.3,5.0,3.5], // half-compressed neg spring | |
| ["AA+-",28.2,12.2,0.3,5.0,0], // pos-neg bridge | |
| ["Li+",18.5,16.0,0.3,2.8,5.5], | |
| ["Li-",18.5,16.0,0.3,6.0,5.5], | |
| ]; | |
| function ConDat(name,dim) = ContactData[search([name],ContactData,1,0)[0]][dim]; | |
| ContactRecess = 2*ConDat(str(CellName,"+"),CONTACT_THICK); | |
| ContactOC = CellData[CellIndex][CELL_OD]; | |
| WireBay = 6.0; // room for wiring to contacts | |
| //- Wire struts | |
| StrutDia = 1.6; // AWG 14 = 1.6 mm | |
| StrutSides = 3*4; | |
| ID = 0; | |
| OD = 1; | |
| LENGTH = 2; | |
| StrutBase = [StrutDia,StrutDia + 2*5*ThreadWidth, // ID = wire, OD = buildable | |
| FloorThick + CellData[CellIndex][CELL_OD]]; // LENGTH = base is flush with cell top | |
| //- Holder dimensions | |
| BatterySize = [CellData[CellIndex][CELL_OAL] + // cell | |
| ConDat(str(CellName,"+"),CONTACT_TIP) + // pos contact | |
| ConDat(str(CellName,"-"),CONTACT_TIP) – // neg contact | |
| 2*ContactRecess, // sink into wall | |
| NumCells*CellData[CellIndex][CELL_OD], | |
| CellData[CellIndex][CELL_OD] | |
| ]; | |
| echo(str("Battery space: ",BatterySize)); | |
| CaseSize = [3*WallThick + // end walls + wiring partition | |
| BatterySize.x + // cell | |
| WireBay, // wiring bay | |
| 2*WallThick + BatterySize.y, | |
| FloorThick + BatterySize.z | |
| ]; | |
| BatteryOffset = (CaseSize.x – (2*WallThick + | |
| CellData[CellIndex][CELL_OAL] + | |
| ConDat(str(CellName,"-"),CONTACT_TIP)) | |
| ) /2 ; | |
| ThumbRadius = 0.75 * CaseSize.z; | |
| StrutOC = [IntegerLessMultiple(CaseSize.x – 2*CornerRadius -2*StrutBase[OD],5.0), | |
| IntegerMultiple(CaseSize.y + StrutBase[OD],5.0)]; | |
| StrutAngle = atan(StrutOC.y/StrutOC.x); | |
| echo(str("Strut OC: ",StrutOC)); | |
| LidSize = [2*WallThick + WireBay + ConDat(str(CellName,"+"),CONTACT_THICK), CaseSize.y, FloorThick/2]; | |
| LidScrew = [2.0,3.8,7.0]; // M2 pan head screw (LENGTH = threaded) | |
| LidScrewOC = CaseSize.y/2 – CornerRadius – LidScrew[OD]; // allow space around screw head | |
| //- Piranha LEDs | |
| PiranhaBody = [8.0,8.0,8.0]; // Z = heatsink fins + body + lens height | |
| PiranhaPin = 0.0; // trimmed pin length beyond heatsink | |
| PiranhaPinsOC = [5.0,5.0]; // pin XY distance | |
| PiranhaRecess = PiranhaBody.z + PiranhaPin/2; // minimum LED recess depth | |
| BallOD = 40.0; // radome sphere | |
| BallSides = 4*StrutSides; // nice smoothness | |
| BallPillar = [norm([PiranhaBody.x,PiranhaBody.y]), // ID | |
| norm([PiranhaBody.x,PiranhaBody.y]) + 3*WallThick, // OD | |
| StrutBase[OD] + PiranhaBody.z]; // height to base of chord | |
| echo(str("Pillar OD: ",BallPillar[OD])); | |
| BallChordM = BallOD/2 – sqrt(pow(BallOD/2,2) – (pow(BallPillar[OD],2))/4); | |
| echo(str("Ball chord depth: ",BallChordM)); | |
| //———————- | |
| // Useful routines | |
| module PolyCyl(Dia,Height,ForceSides=0) { // based on nophead's polyholes | |
| Sides = (ForceSides != 0) ? ForceSides : (ceil(Dia) + 2); | |
| FixDia = Dia / cos(180/Sides); | |
| cylinder(r=(FixDia + HoleWindage)/2,h=Height,$fn=Sides); | |
| } | |
| // Spider for single LED atop struts, with the ball | |
| module DualSpider() { | |
| difference() { | |
| union() { | |
| for (j=[-1,1]) { | |
| translate([0,j*StrutOC.y/2,StrutBase[OD]/2]) | |
| rotate(180/StrutSides) | |
| sphere(d=StrutBase[OD]/cos(180/StrutSides),$fn=StrutSides); | |
| translate([0,j*StrutOC.y/2,0]) | |
| rotate(180/StrutSides) | |
| cylinder(d=StrutBase[OD],h=StrutBase[OD]/2,$fn=StrutSides); | |
| } | |
| translate([0,0,StrutBase[OD]/4]) // connecting bars | |
| cube([StrutBase[OD]*cos(180/StrutSides),StrutOC.y,StrutBase[OD]/2],center=true); | |
| cylinder(d=BallPillar[OD],h=BallPillar[LENGTH],$fn=BallSides); | |
| } | |
| for (j=[-1,1]) // strut wires | |
| translate([0,j*StrutOC.y/2,-Protrusion]) | |
| PolyCyl(StrutBase[ID],StrutBase[OD]/2,6); | |
| for (n=[-1,1]) // LED wiring | |
| rotate(n*90) | |
| translate([StrutOC.x/3,0,-Protrusion]) | |
| PolyCyl(StrutBase[ID],StrutBase[OD],6); | |
| translate([0,0,BallOD/2 + BallPillar[LENGTH] – BallChordM]) // ball inset | |
| sphere(d=BallOD); | |
| translate([0,0,BallPillar.z – PiranhaRecess + BallPillar.z/2]) // LED inset | |
| cube(PiranhaBody + [HoleWindage,HoleWindage,BallPillar.z],center=true); // XY clearance | |
| translate([0,0,StrutBase[OD]/2 + WireOD/2 + 0*Protrusion]) // wire channels | |
| cube([WireOD,BallPillar[OD] + 2*WallThick,WireOD],center=true); | |
| } | |
| } | |
| //– Overall case with origin at battery center | |
| module Case() { | |
| union() { | |
| difference() { | |
| union() { | |
| hull() | |
| for (i=[-1,1], j=[-1,1]) | |
| translate([i*(CaseSize.x/2 – CornerRadius), | |
| j*(CaseSize.y/2 – CornerRadius), | |
| 0]) | |
| cylinder(r=CornerRadius/cos(180/8),h=CaseSize.z,$fn=8); // cos() fixes undersize spheres! | |
| if (Struts) | |
| for (i = (Struts == 1) ? [-1,1] : -1) { // strut bases | |
| hull() | |
| for (j=[-1,1]) | |
| translate([i*StrutOC.x/2,j*StrutOC.y/2,0]) | |
| rotate(180/StrutSides) | |
| cylinder(d=StrutBase[OD],h=StrutBase[LENGTH],$fn=StrutSides); | |
| translate([i*StrutOC.x/2,0,StrutBase[LENGTH]/2]) | |
| cube([2*StrutBase[OD],StrutOC.y,StrutBase[LENGTH]],center=true); // blocks for fairing | |
| for (j=[-1,1]) // hemisphere caps | |
| translate([i*StrutOC.x/2, | |
| j*StrutOC.y/2, | |
| StrutBase[LENGTH]]) | |
| rotate(180/StrutSides) | |
| sphere(d=StrutBase[OD]/cos(180/StrutSides),$fn=StrutSides); | |
| } | |
| } | |
| translate([BatteryOffset,0,BatterySize.z/2 + FloorThick]) // cells | |
| cube(BatterySize + [0,0,Protrusion],center=true); | |
| translate([BatterySize.x/2 + BatteryOffset + ContactRecess/2 – Protrusion/2, // contacts | |
| 0, | |
| BatterySize.z/2 + FloorThick]) | |
| cube([ContactRecess + Protrusion, | |
| ConDat(str(CellName,"+-"),CONTACT_WIDE), | |
| ConDat(str(CellName,"+-"),CONTACT_HIGH) | |
| ],center=true); | |
| translate([-(BatterySize.x/2 – BatteryOffset + ContactRecess/2 – Protrusion/2), | |
| ContactOC/2, | |
| BatterySize.z/2 + FloorThick]) | |
| cube([ContactRecess + Protrusion, | |
| ConDat(str(CellName,"+"),CONTACT_WIDE), | |
| ConDat(str(CellName,"+"),CONTACT_HIGH) | |
| ],center=true); | |
| translate([-(BatterySize.x/2 – BatteryOffset + ContactRecess/2 – Protrusion/2), | |
| -ContactOC/2, | |
| BatterySize.z/2 + FloorThick]) | |
| cube([ContactRecess + Protrusion, | |
| ConDat(str(CellName,"-"),CONTACT_WIDE), | |
| ConDat(str(CellName,"-"),CONTACT_HIGH) | |
| ],center=true); | |
| translate([-CaseSize.x/2 + WireBay/2 + WallThick, // wire bay with screw bosses | |
| 0, | |
| BatterySize.z/2 + FloorThick + Protrusion/2]) | |
| cube([WireBay, | |
| 2*LidScrewOC – LidScrew[ID] – 2*4*ThreadWidth, | |
| BatterySize.z + Protrusion | |
| ],center=true); | |
| for (j=[-1,1]) // screw holes | |
| translate([-CaseSize.x/2 + WireBay/2 + WallThick, | |
| j*LidScrewOC, | |
| CaseSize.z – LidScrew[LENGTH] + Protrusion]) | |
| PolyCyl(LidScrew[ID],LidScrew[LENGTH],6); | |
| for (j=[-1,1]) | |
| translate([-(BatterySize.x/2 – BatteryOffset + WallThick/2), // contact tabs | |
| j*ContactOC/2, | |
| BatterySize.z + FloorThick – Protrusion]) | |
| cube([2*WallThick, | |
| ConDat(str(CellName,"+"),CONTACT_TAB), | |
| (BatterySize.z – ConDat(str(CellName,"+"),CONTACT_HIGH)) | |
| ],center=true); | |
| if (false) | |
| translate([0,0,CaseSize.z]) // finger cutout | |
| rotate([90,00,0]) | |
| cylinder(r=ThumbRadius,h=2*CaseSize.y,center=true,$fn=22); | |
| translate([0,0,ThreadThick – Protrusion]) // recess around name | |
| cube([0.6*CaseSize.x,8,2*ThreadThick],center=true); | |
| if (Struts) | |
| for (i2 = (Struts == 1) ? [-1,1] : -1) { // strut wire holes and fairing | |
| for (j=[-1,1]) | |
| translate([i2*StrutOC.x/2,j*StrutOC.y/2,FloorThick]) | |
| rotate(180/StrutSides) | |
| PolyCyl(StrutBase[ID],2*StrutBase[LENGTH],StrutSides); | |
| for (i=[-1,1], j=[-1,1]) // fairing cutaways | |
| translate([i*StrutBase[OD] + (i2*StrutOC.x/2), | |
| j*StrutOC.y/2, | |
| -Protrusion]) | |
| rotate(180/StrutSides) | |
| PolyCyl(StrutBase[OD],StrutBase[LENGTH] + 2*Protrusion,StrutSides); | |
| } | |
| } | |
| translate([0,0,0]) | |
| linear_extrude(height=2*ThreadThick + Protrusion,convexity=10) | |
| mirror([0,1,0]) | |
| text(text="KE4ZNU",size=6,spacing=1.20,font="Arial:style:Bold",halign="center",valign="center"); | |
| } | |
| } | |
| module Lid() { | |
| difference() { | |
| hull() | |
| for (i=[-1,1], j=[-1,1], k=[-1,1]) | |
| translate([i*(LidSize.x/2 – CornerRadius), | |
| j*(LidSize.y/2 – CornerRadius), | |
| k*(LidSize.z – CornerRadius)]) // double thickness for flat bottom | |
| sphere(r=CornerRadius/cos(180/8),$fn=8); | |
| translate([0,0,-LidSize.z]) // remove bottom | |
| cube([(LidSize.x + 2*Protrusion),(LidSize.y + 2*Protrusion),2*LidSize.z],center=true); | |
| for (j=[-1,1]) // wire holes | |
| translate([0,j*WireOC,-Protrusion]) | |
| PolyCyl(WireOD,2*LidSize.z,6); | |
| for (j=[-1,1]) | |
| translate([0,j*LidScrewOC,-Protrusion]) | |
| PolyCyl(LidScrew[ID],2*LidSize.z,6); | |
| } | |
| } | |
| //——————- | |
| // Build it! | |
| if (Layout == "Case") | |
| Case(); | |
| if (Layout == "Lid") | |
| Lid(); | |
| if (Layout == "Spider") | |
| if (Struts == -1) | |
| DualSpider(); | |
| else | |
| cube(10,center=true); | |
| if (Layout == "Build") { | |
| rotate(90) | |
| Case(); | |
| translate([0,-(CaseSize.x/2 + LidSize.x/2 + Gap),0]) | |
| rotate(90) | |
| Lid(); | |
| if (Struts == -1) | |
| translate([CaseSize.x/2,0,0]) | |
| DualSpider(); | |
| } | |
| if (Layout == "Show") { | |
| Case(); | |
| translate([-CaseSize.x/2 + LidSize.x/2,0,(CaseSize.z + Gap)]) | |
| Lid(); | |
| } | |
The Smell of Molten Projects in the Morning
Comments
2 responses to “Discrete LM3909: Blue LED Radome”
[…] step: wire up an astable with a yellow LED to go with the green and blue boosted […]
[…] a yellow / amber LED runs at a lower voltage than blue and green LEDs, it sits atop an astable multivibrator, rather than a discrete LM3909. The battery […]
