Micromark Bandsaw Table Angle Gauge Tweak

Mostly, the Tiny Bandsaw™ cuts thin sheets, where having the blade at a slight angle off perpendicular doesn’t make much difference. I recently started to cut a thicker block and thought the blade looked a bit slanted, so I deployed the Tiny Square™ to set it properly:

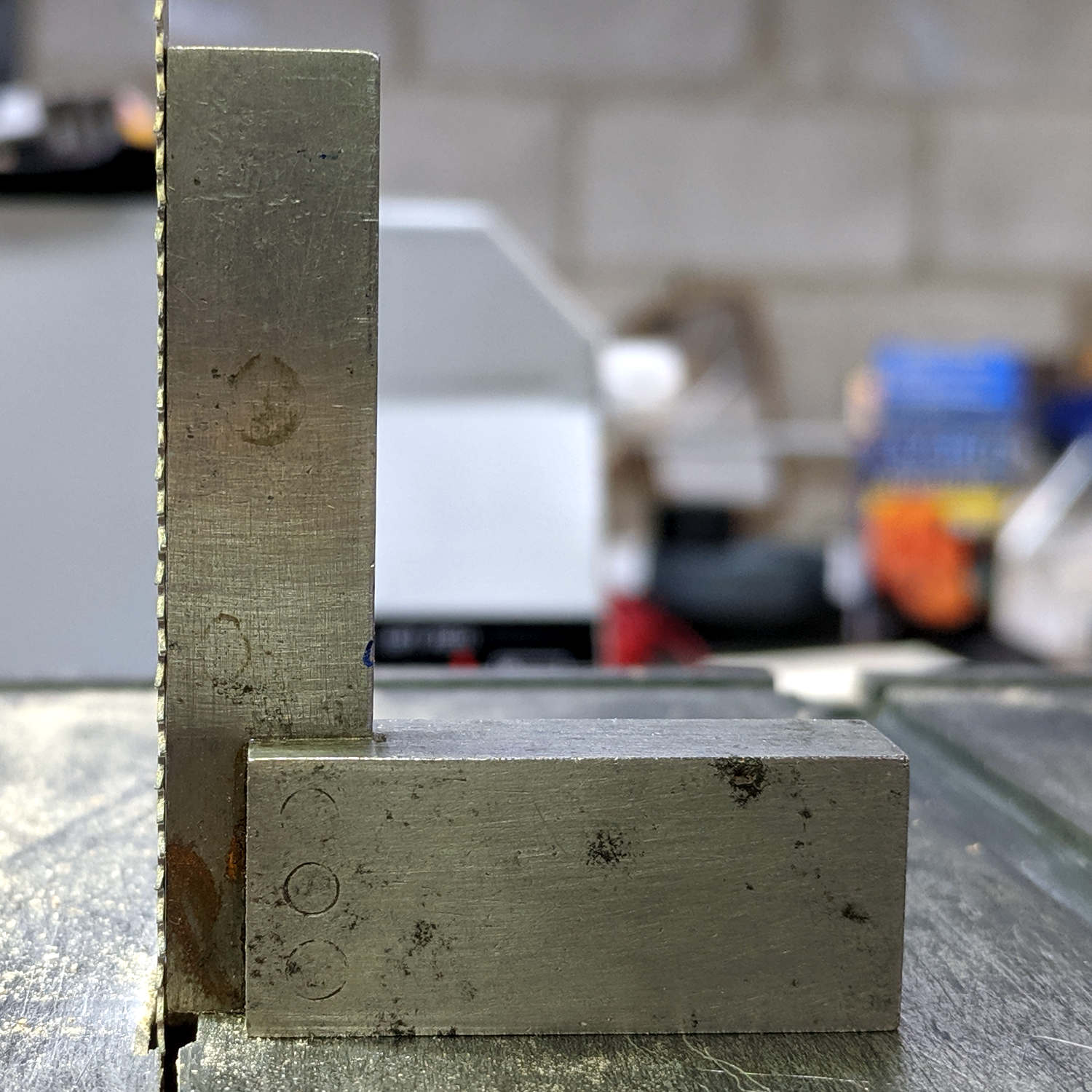

MicroLux Bandsaw - blade perpendicular
MicroLux Bandsaw – blade perpendicular

Which produced this result on the blade angle gauge under the table:

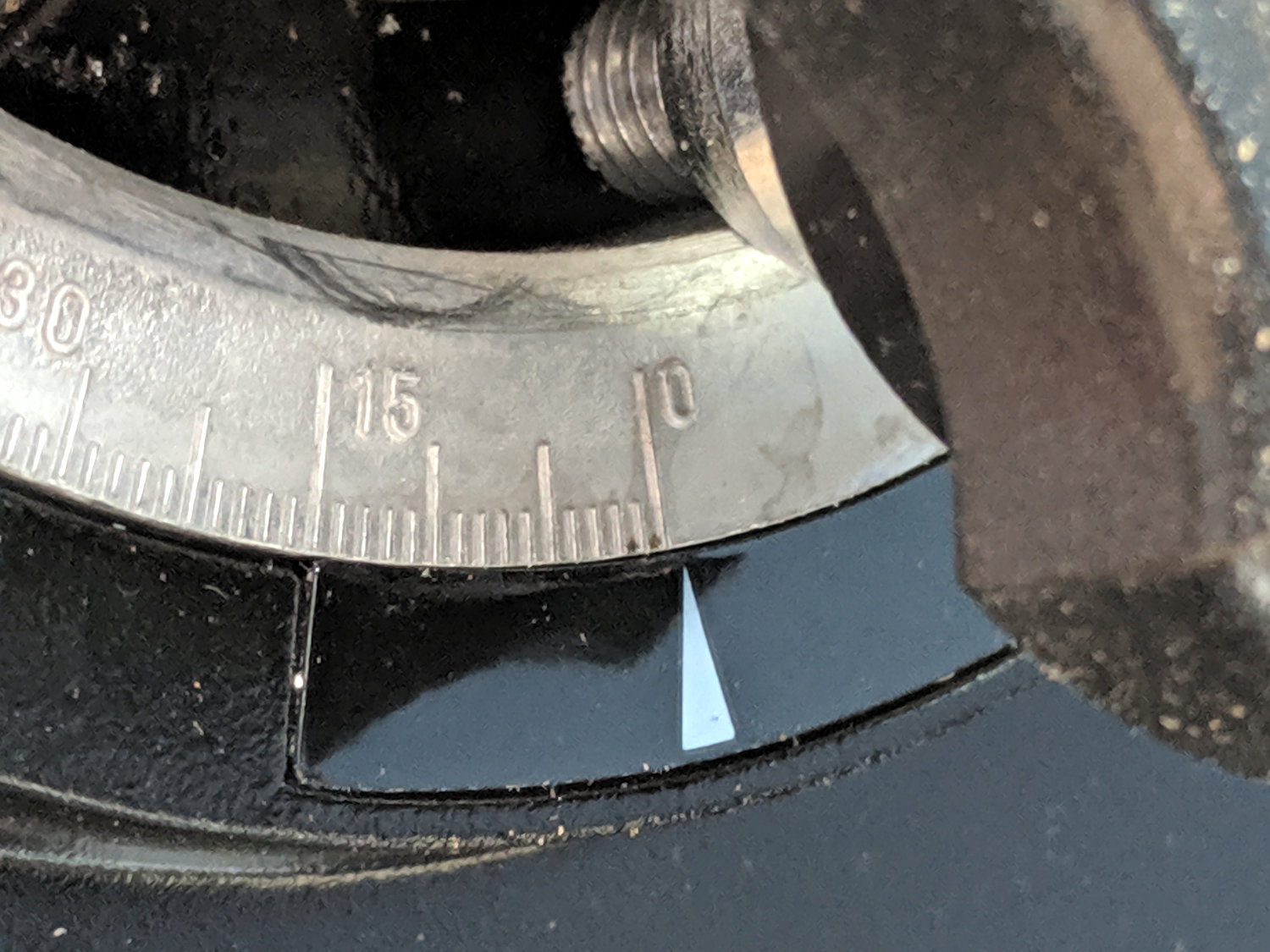

MicroLux Bandsaw - table angle offset
MicroLux Bandsaw – table angle offset

Huh.

The scale pointer is printed on what’s basically a sticker. The QC regime for the bandsaw apparently doesn’t ensure the pointer appears at the proper place on the sticker, nor does it verify the overall alignment.

I peeled the sticker off off, trimmed the near edge, and re-stuck it with the pointer aimed properly:

MicroLux Bandsaw - tweaked table angle scale
MicroLux Bandsaw – tweaked table angle scale

It makes me feel better, anyway …

Now, as why they put the scale pointer behind the table clamp knob, where it can’t be seen directly, that remains a mystery.
