Monthly Science: Motel Water Pressure vs. Height

Being a sucker for infrastructure and numbers, the fire sprinkler system pressure gauges in the motel stairwell proved irresistible.

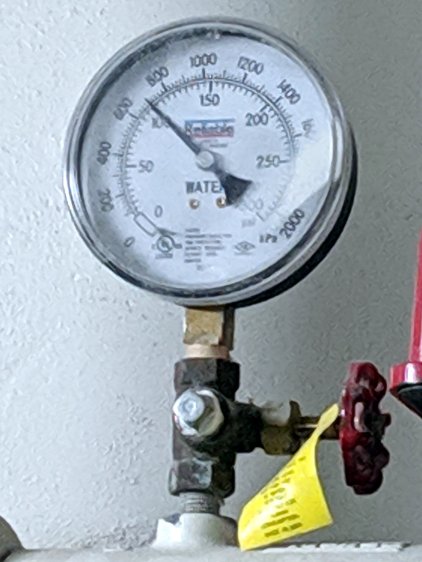

The first floor gauge shows a nice round 100 psi:

Hotel water pressure - floor 1

Hotel water pressure – floor 1

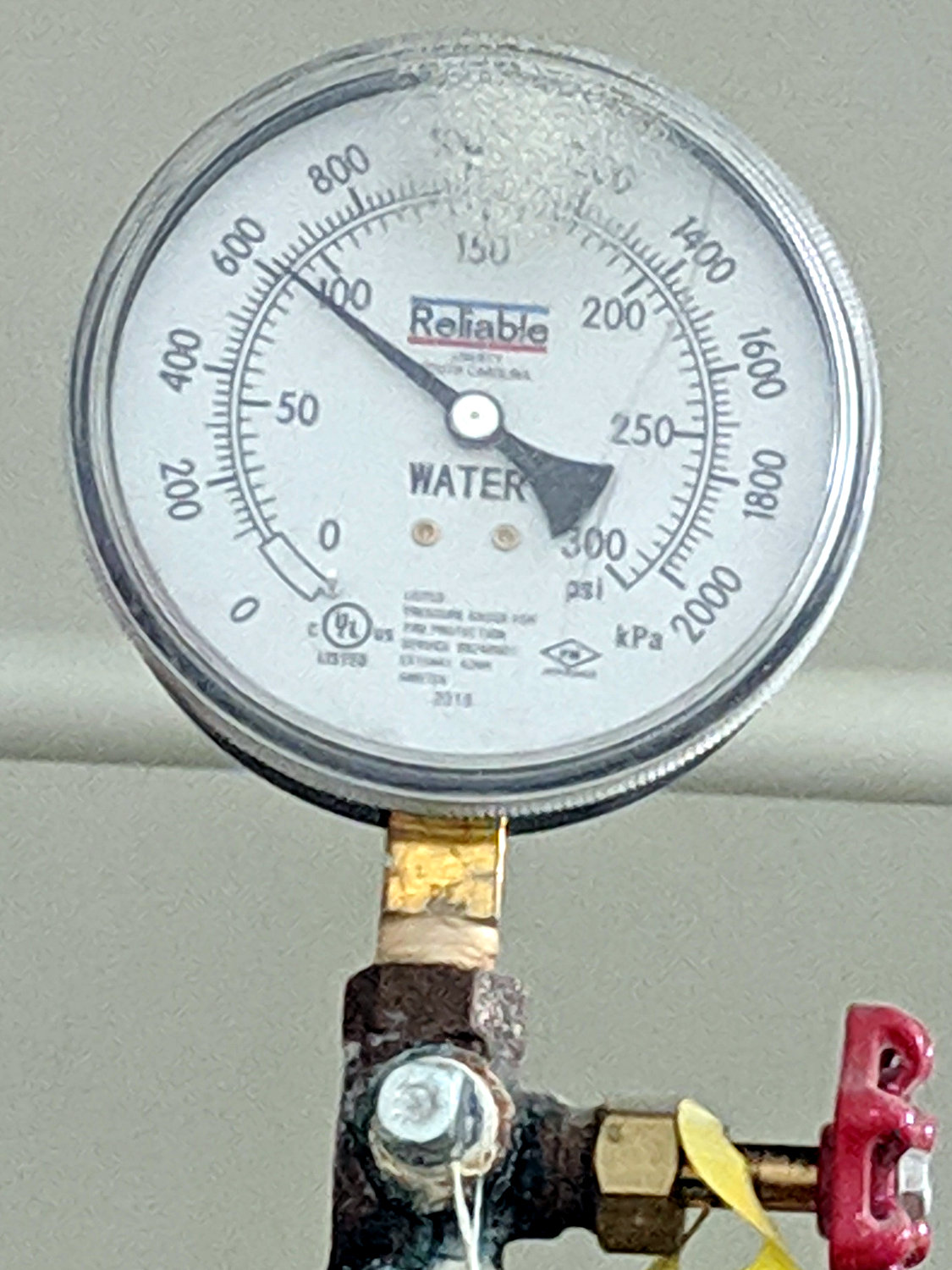

Up on the second floor, it’s 90 psi:

Hotel water pressure - floor 2

Hotel water pressure – floor 2

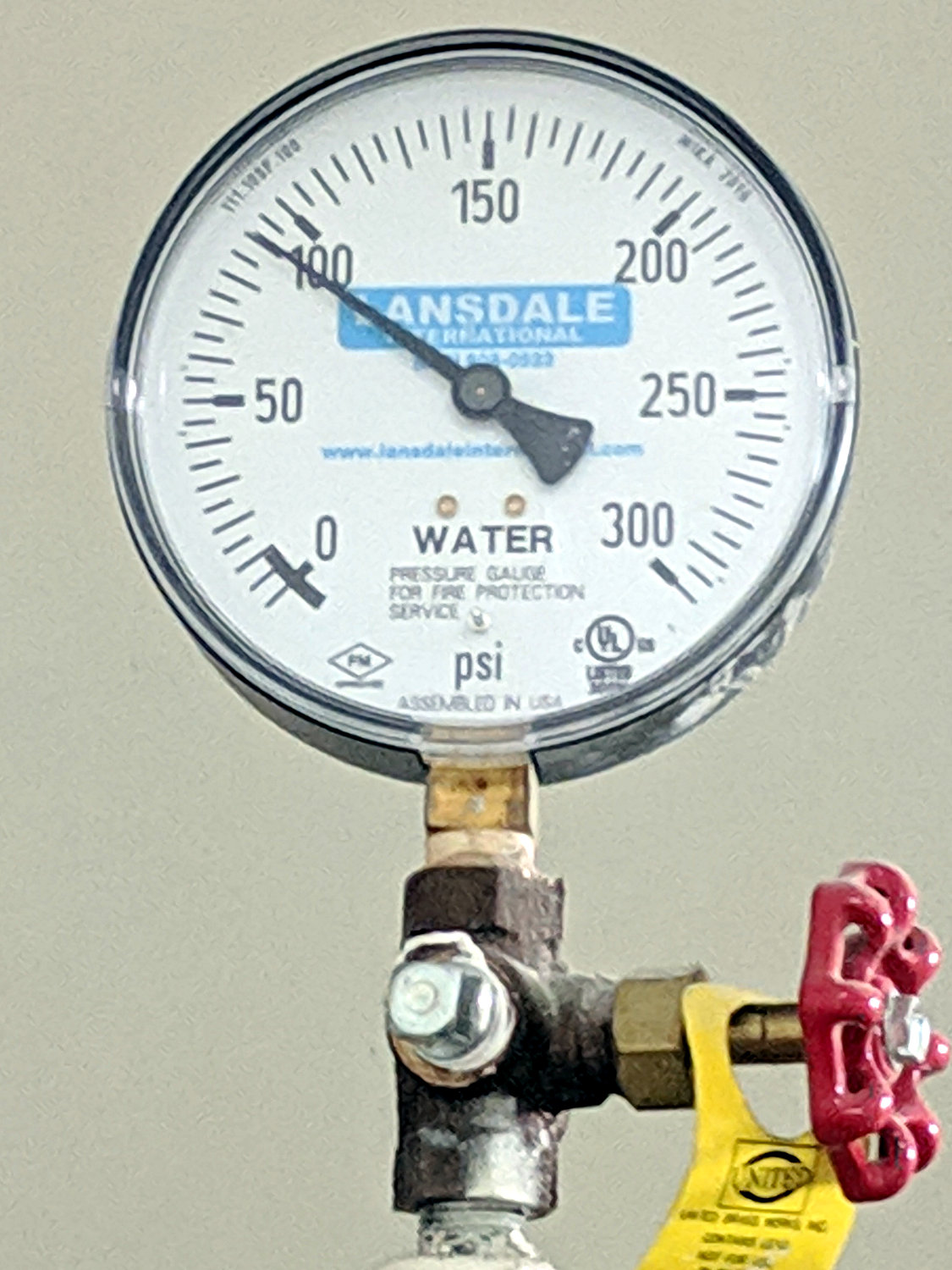

With a different brand of gauge, it’s also 90 psi on the third floor:

Hotel water pressure - floor 3

Hotel water pressure – floor 3

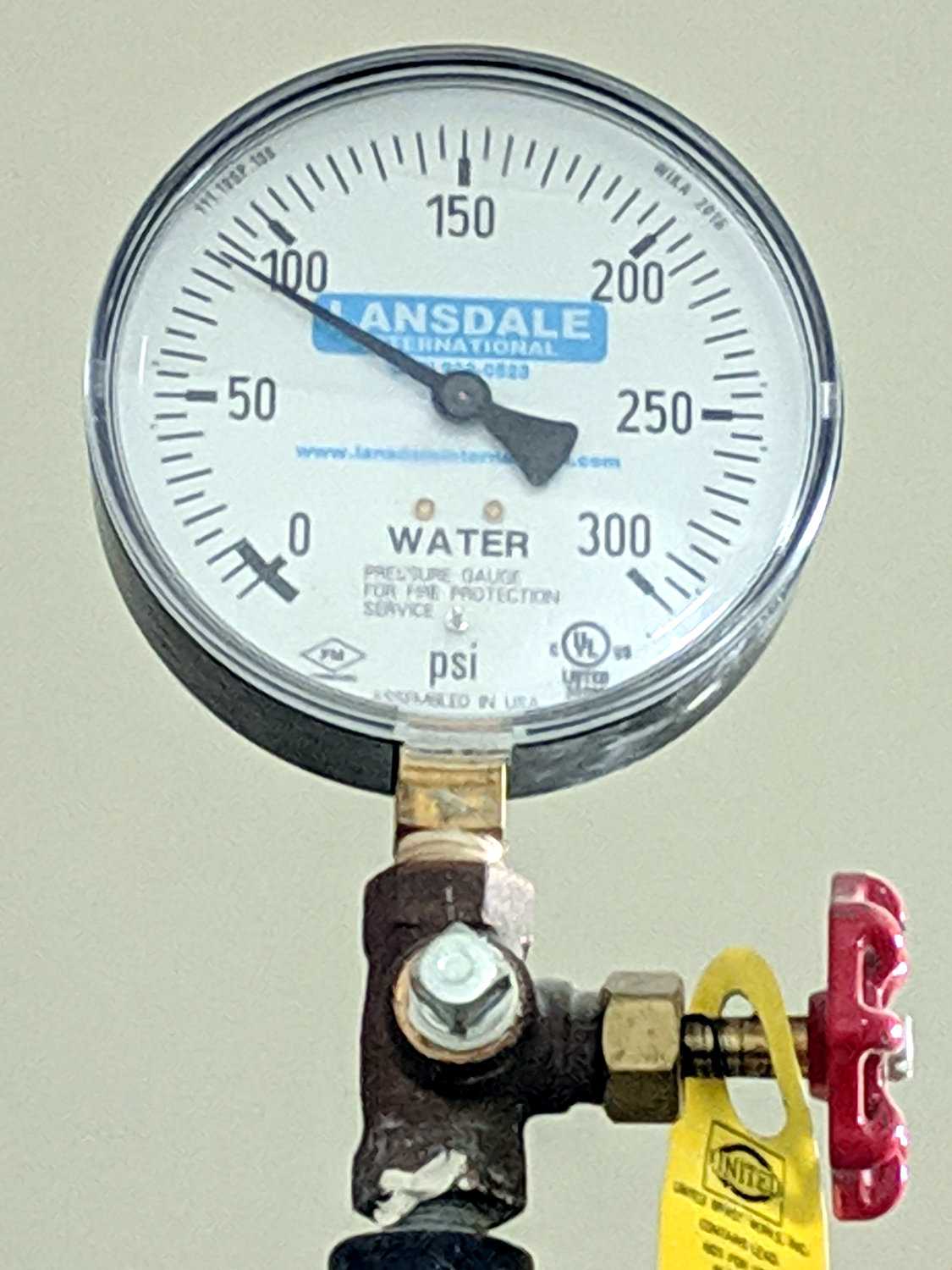

Maybe 85 psi on the fourth:

Hotel water pressure - floor 4

Hotel water pressure – floor 4

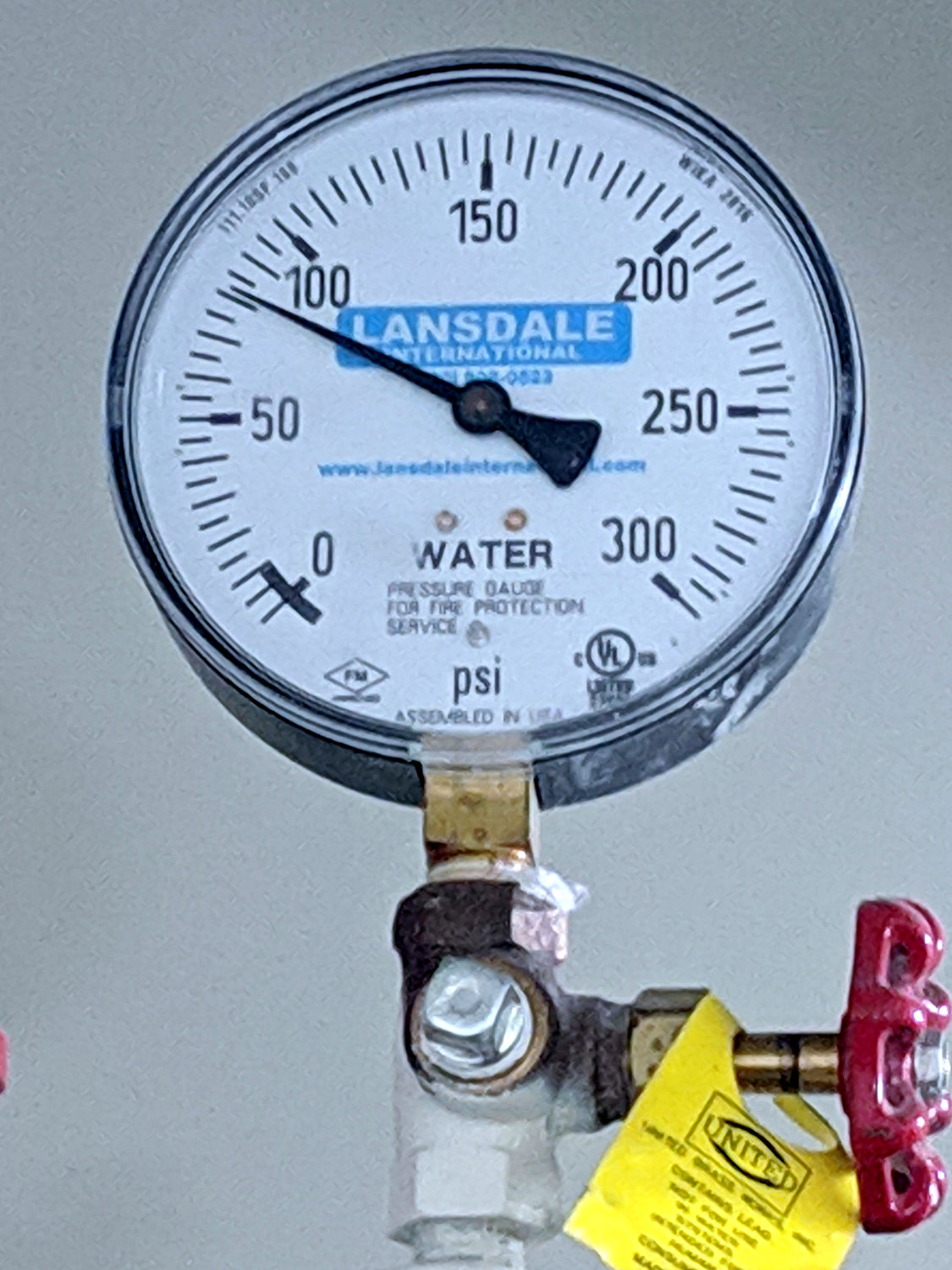

Squinting at the parallax, call it 80 psi on the fifth:

Hotel water pressure - floor 5

Hotel water pressure – floor 5

At the top of the vertical pipe on the fifth, on the other side of a valve, we return to the original valve company at 78 psi:

Hotel water pressure - floor 5 - top

Hotel water pressure – floor 5 – top

Water weighs just over 62 lb/ft³ at room temperature, which works out to 0.43 lb/in² per vertical foot. Not having packed my laser distance widget, I’ll guesstimate 12 feet and 5 psi per floor.

A quick graph with an eyeballometric straight-line fit:

Motel sprinkler water pressures

Motel sprinkler water pressures

Call it 0.42 psi/ft, which is pretty close to the right answer.

Advertisements
  1. #1 by MishaBurnett on 2018-12-01 - 08:20

    My hat’s off to you. I don’t often get outgeeked on fire/life safety issues.

    • #2 by Ed on 2018-12-01 - 19:21

      It’s a nasty job, but somebody’s gotta do it … [grin]
