Squidwrench Electronics Workshop: Session 6 Whiteboards

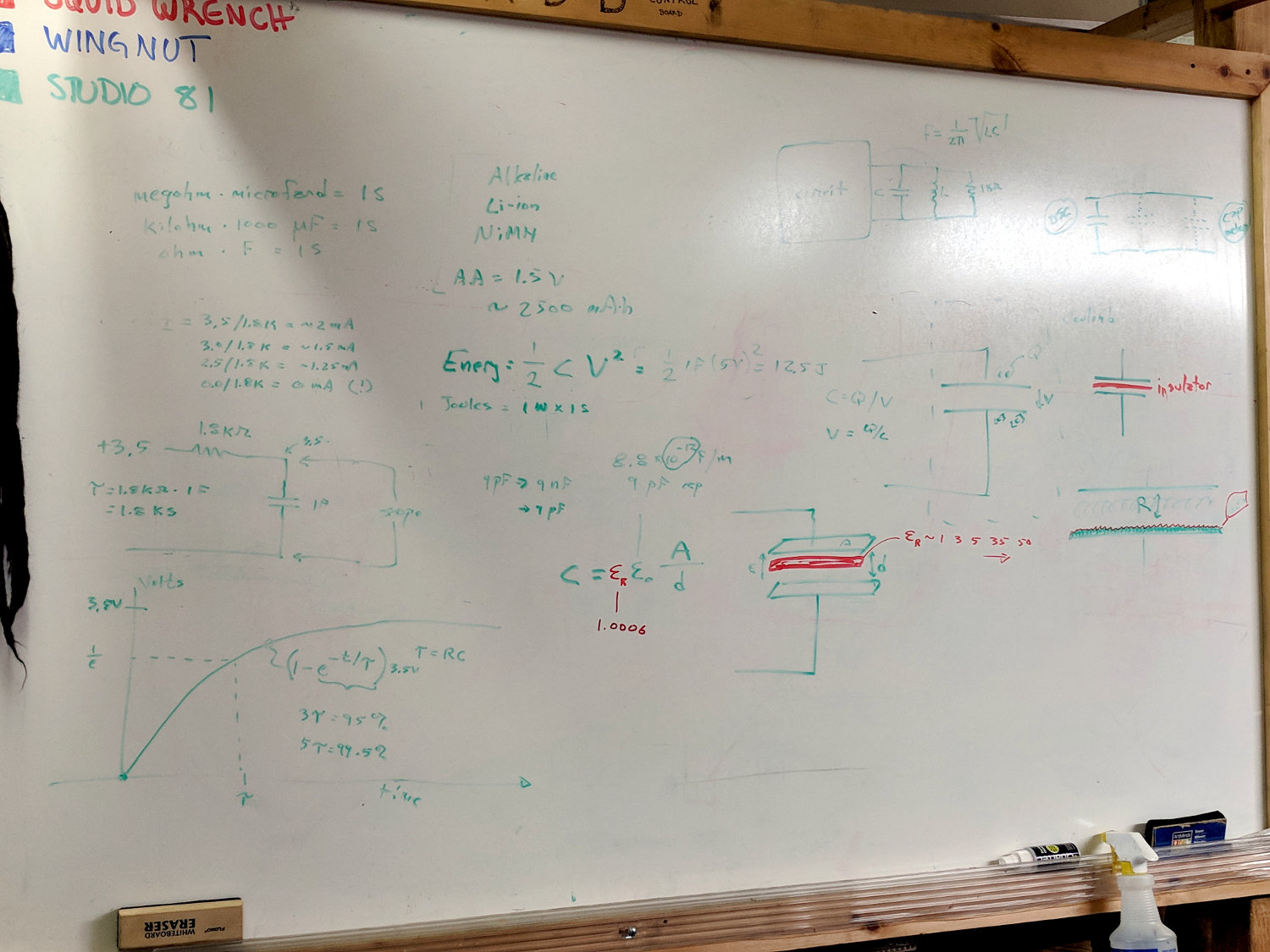

Coverage of capacitors as charge-storage devices, rather than filters:

Session 6 - Whiteboard 1 - overview

Session 6 – Whiteboard 1 – overview

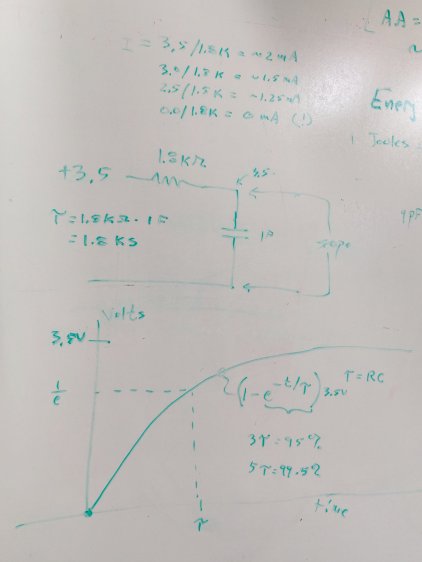

We avoided all the calculus and derivations, taking the exponential waveform as a given for RC circuits:

Session 6 - Whiteboard 1 - exponential detail

Session 6 – Whiteboard 1 – exponential detail

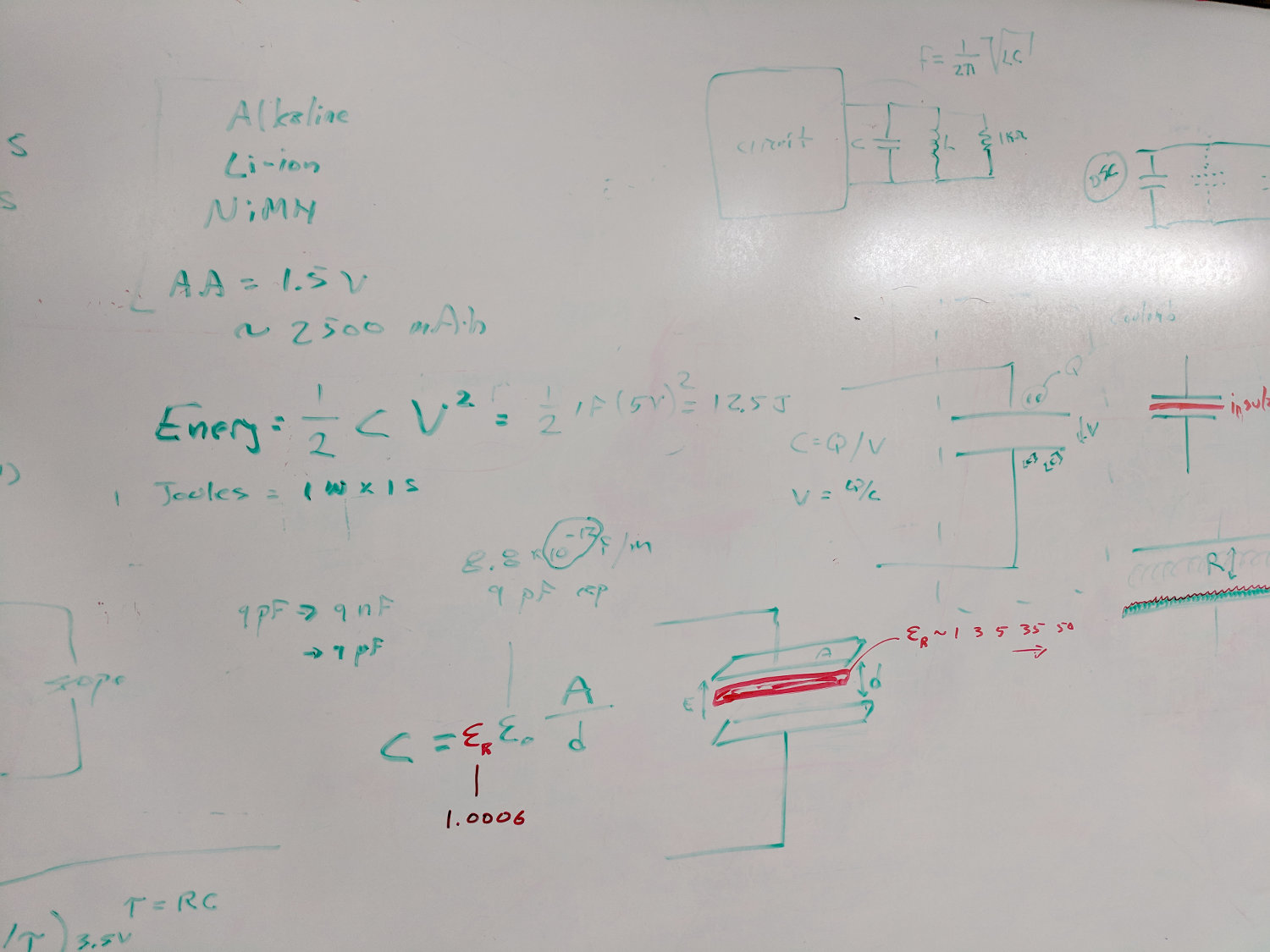

Discussions of dielectrics, plate spacing / area, and suchlike:

Session 6 - Whiteboard 1 - dielectric permittivity

Session 6 – Whiteboard 1 – dielectric permittivity

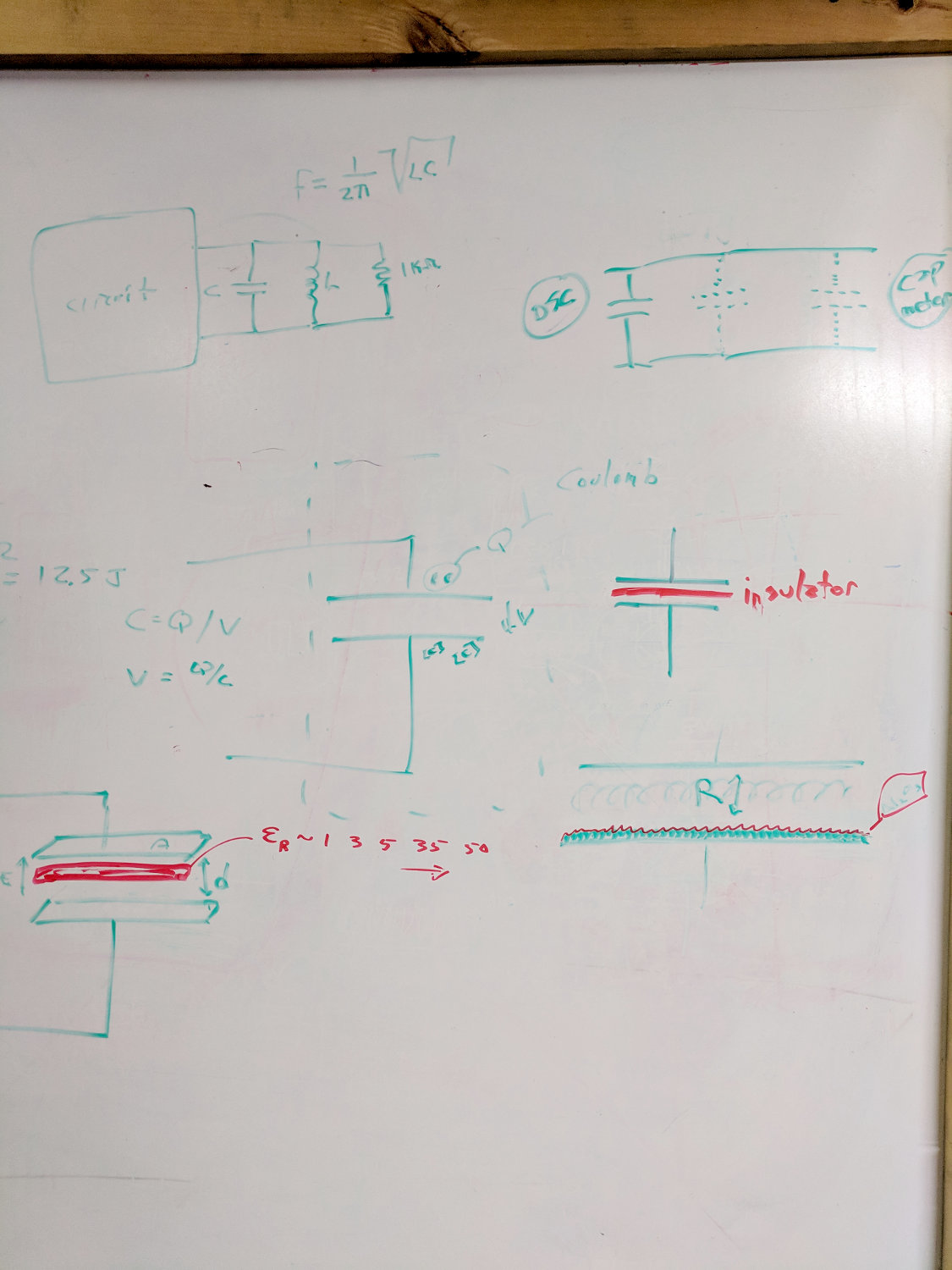

Some handwaving discussion of construction, electrolytic capacitor innards, and The Plague:

Session 6 - Whiteboard 1 - cap construction

Session 6 – Whiteboard 1 – cap construction

A 1 F cap charged through a 1.8 kΩ resistor during most of the session to show what an 1800 s time constant looked like. Nope, it never quite got to the 3.5 V from the power supply, even when we all decided it was time to shut down!

Advertisements
  1. #1 by madbodger on 2018-11-16 - 09:55

    Generally 1F capacitors have a fair amount of leakage, so I’m guessing it was getting close to equilibrium at that point.

    • #2 by Ed on 2018-11-16 - 14:31

      Sounds like a good homework project: “Here, measure the leakage of this hulking cap.”
