Debranded HP w2408 Monitor Cap

Quite some time ago, I picked up a nice monitor that turned out to be a debranded (all OEM labels removed or covered) HP w2408. It eventually became erratic, refusing to turn on or return from power-save mode, so I took it apart. All the caps looked good and seemed to have low ESR, except for the big one in the middle of the power supply board:

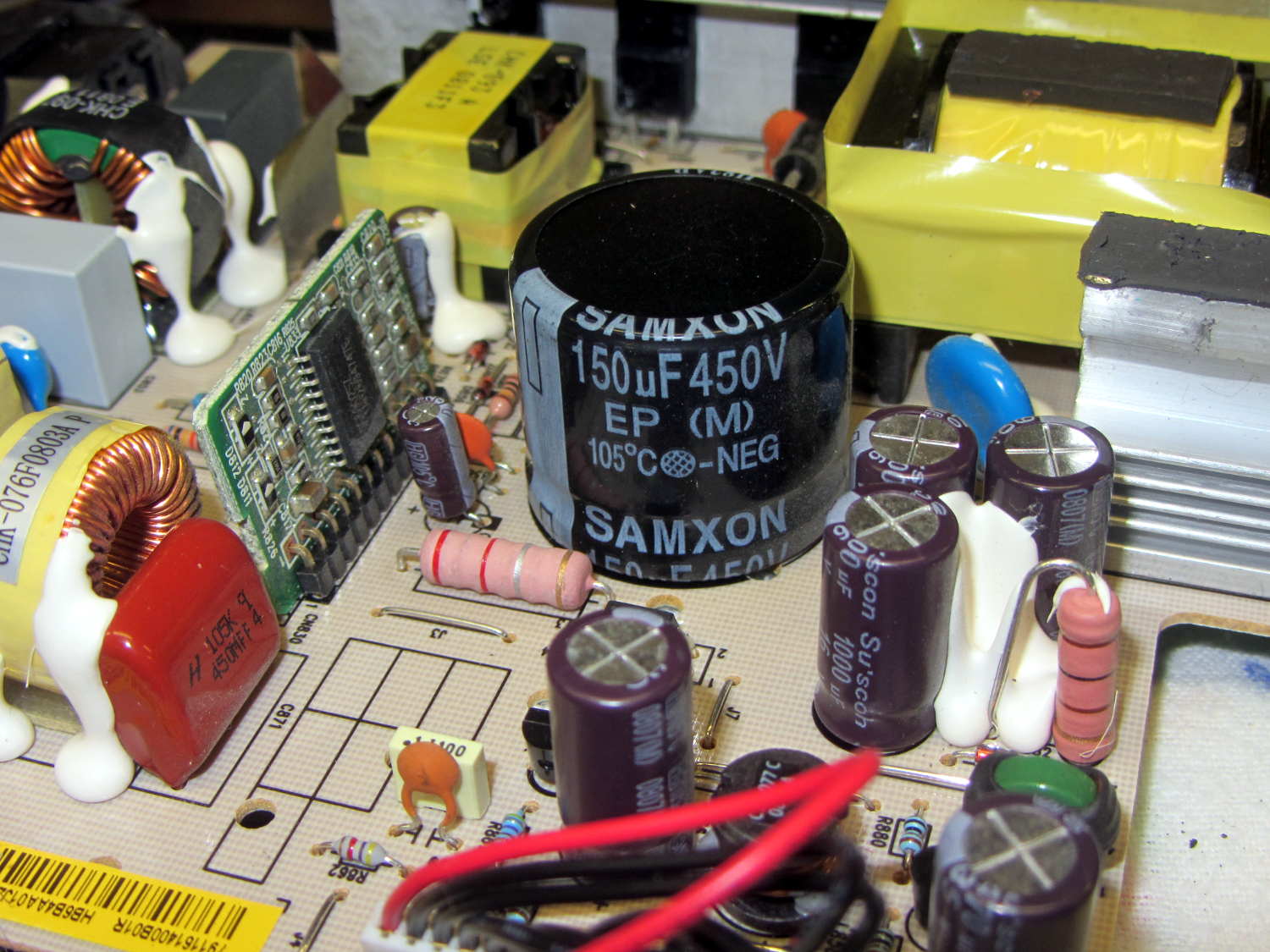

HP 2408 monitor power supply - HV cap

HP 2408 monitor power supply – HV cap

It’s 30 mm in diameter, with 10 mm lead spacing, and stands a squat 26 mm tall, ignoring a millimeter or two of bulge in its should-be-flat black cap:

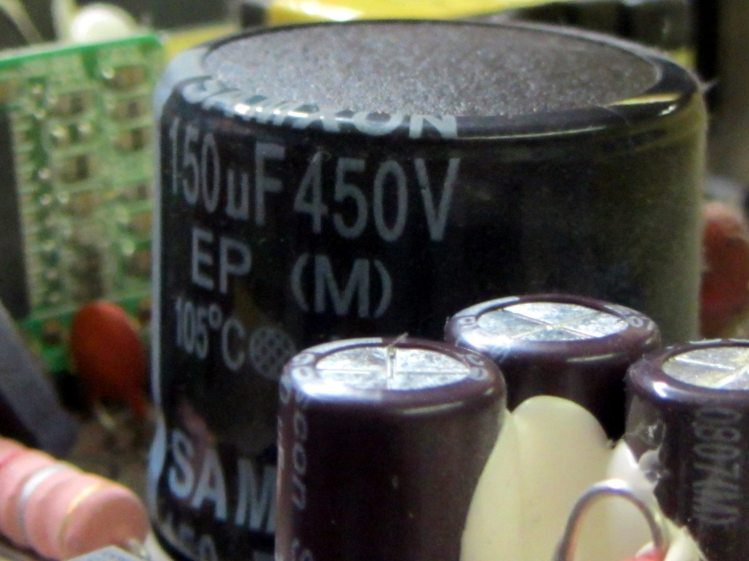

HP 2408 monitor power supply - HV cap bulge

HP 2408 monitor power supply – HV cap bulge

Having never seen one of that size before, I sent a note and picture to folks who sell re-capping kits for monitors, in the hope that they’ll have a lead.

Otherwise, it’s e-trash…

Advertisements

    • #2 by madbodger on 2015-10-07 - 13:02

      Parametric search is your friend. That’s how I found suitable capacitors and inrush current limiter for my dead Microsun lamp. I swapped ’em in and it worked fine. Bulk capacitors like that are rarely critical as to their specs, as long as there’s more-or-less enough capacitance and low enough ESR. I usually buy fancy 125°C long life ones so I don’t have to replace ’em again – the cost difference is trivial compared to the time to find/replace them and the cost of shipping.

    • #3 by Ed on 2015-10-07 - 20:24

      I’ll wait to see if LCDAlternative (the folks I used last time!) can do a whole kit for less than I’d pay for two caps from Digikey, but some of those should fit.

      Thanks!

  1. #4 by Red County Pete on 2015-10-07 - 10:58

    I checked my usual supplier, and found the following:

    http://lcdalternatives.com/Nichicon-450v-150uf-Capacitor-P1660447.aspx

    Not sure of the pin spacing, but that page has a pdf specsheet from Nichicon.

    (I forgot to bookmark the vendor, but the url memory in Pale Moon is forever, I think…)

    • #5 by Ed on 2015-10-07 - 20:18

      Turns out it’s height-constrained: that 30 mm height is a hard limit. Worst case, if lives were at stake, I could probably force-fit a skinny cap horizontally, but …

  2. #6 by Mike on 2015-10-07 - 15:26

    If you have the vertical space then this should work.
    http://www.ebay.com/itm/Nichicon-450v-150uf-Capacitor-/330919565257

  3. #7 by Jim R on 2015-10-07 - 19:57

    Mouser has this part number if you don’t think the colors will clash…: 710-861111485025
    Oddly enough, filtering on 150 uF did not produce a 450 volt capacitor in the results, but going from dimensions and a voltage range produced what appears to be a reasonable match…

    • #8 by Ed on 2015-10-07 - 20:26

      if you don’t think the colors will clash

      I can cope… [grin]
