Canon SX-230HS: Wasabi NB-5L Batteries

Based on my good experience with the Wasabi NP-BX1 batteries, I also bought three Wasabi NB-5L batteries for my Canon SX-230HS pocket camera:

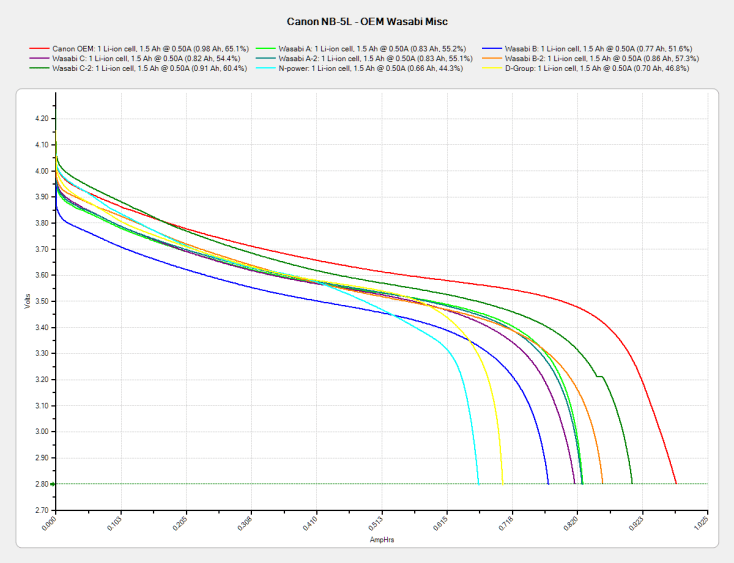

Canon NB-5L - OEM Wasabi Misc - 2014-10-04

Canon NB-5L – OEM Wasabi Misc – 2014-10-04

Well, that’s not what I expected: the “new” Wasabi batteries perform worse than the three year old Canon OEM battery¬†and no better than the crap batteries from eBay.

Just to be sure, I ran two tests on each of the three new batteries. Unlike the NP-BX1 batteries, these deliver a lower voltage than the Canon OEM battery and have a much lower capacity. The camera cuts off at 3.5 V, so the new batteries deliver 2/3 the run time of the old OEM battery


Tech support at Blue Nook (I am not making that up) says they’ll send me a couple of batteries from their next shipment to see if something’s wrong with this¬†batch; all the batteries have date code BNF27.

  1. #1 by Keith Neufeld on 2014-10-24 - 10:34

    You’re doing these on your homebrew battery tester, yes? I’d have use for one, too — could you give link(s) or keywords that would locate the necessary posts about its construction?

    • #2 by Ed on 2014-10-24 - 11:05

      I use a West Mountain Radio CBA, which works well enough that I’m willing to boot the Token Windows Box. I have conjured various DIY battery testers, but, honestly, they turned out to be more trouble than they were worth.

      I build custom battery holders, though, for which 3D printing is exactly the right hammer…

  2. #3 by david on 2014-10-25 - 00:47

    What’s with the glitch in the green trace at 0.825AH?

    • #4 by Ed on 2014-10-25 - 07:56

      Haven’t a clue, although I’m sure it’s a data collection glitch, rather than the battery voltage suddenly stabilizing for a few minutes.
