NIC Backpanel Shortening

Actually, that NIC didn’t slip right into place, because its backpanel plate was sized for a full-height PC case. Unlike the cheap stamped steel you find these days, NetGear used much thicker metal that required an attack with the bandsaw, a hammer, and some files to clean up the raw edges.

But it fit pretty well after all that:

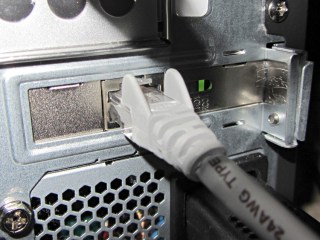

Shortened NIC backplate
Shortened NIC backplate

You can just barely see the NetGear logo wrapped around the right-angle bend…
