Picked up a Harbor Freight thickness gauge to measure Thing-O-Matic filaments and suchlike; it has a plastic piston and anvil, so it’s not well-suited to measure anything other than plastic parts. In fact, it’s all plastic and the various sliding surfaces produced a remarkable amount of friction.

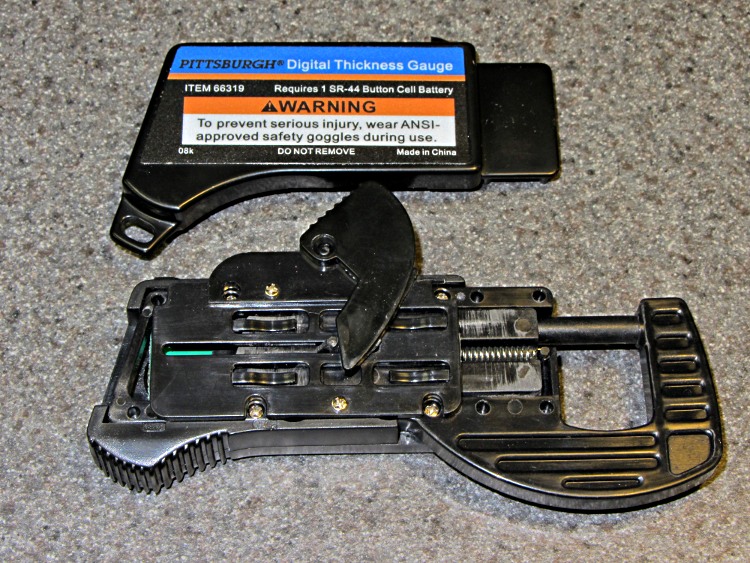

Fortunately, the back cover pops off without too much of a struggle:
Dabs of silicone lube at all the contact points considerably improved its disposition.
The display offers 0.01 mm resolution, but I don’t believe that rightmost digit for an instant. The stated accuracy is ±0.1 mm, which is probably closer to the truth, and it agrees reasonably well with my considerably better quality digital caliper.
The Smell of Molten Projects in the Morning
Comments
5 responses to “Harbor Freight Digital Thickness Gauge: Lubrication Thereof”
…so why not just use the calipers?
Also either my reader or your RSS feed is broken since a few days ago…
Also Also the PCB link in the previous post is broken. :)
Uh, because now I have another tool… [grin]
I’m laying odds on your reader being defunct, because the number of “subscription” hits per day hasn’t changed by much. In any event, there’s absolutely nothing I can do about it, because WordPress handles all the infrastructure.
Ditto for the PCB link: they’re all working fine. I have noticed that sometimes images don’t render correctly the first time through, which is (almost always) cured by refreshing the page.
ahh, modern technology! :)
(But the first link in that post is still broken here: points to https://softsolder.com/2011/12/02/gpsvoice-interface-for-wouxun-kg-uv3d-pcb-in-box/ when it should be
https://softsolder.com/2011/12/02/gpsvoice-interface-for-wouxun-kg-uv3d-pcb-in-a-box/…)
Turns out I was looking in the wrong place. Got it!
Thanks…
