Building Sinc

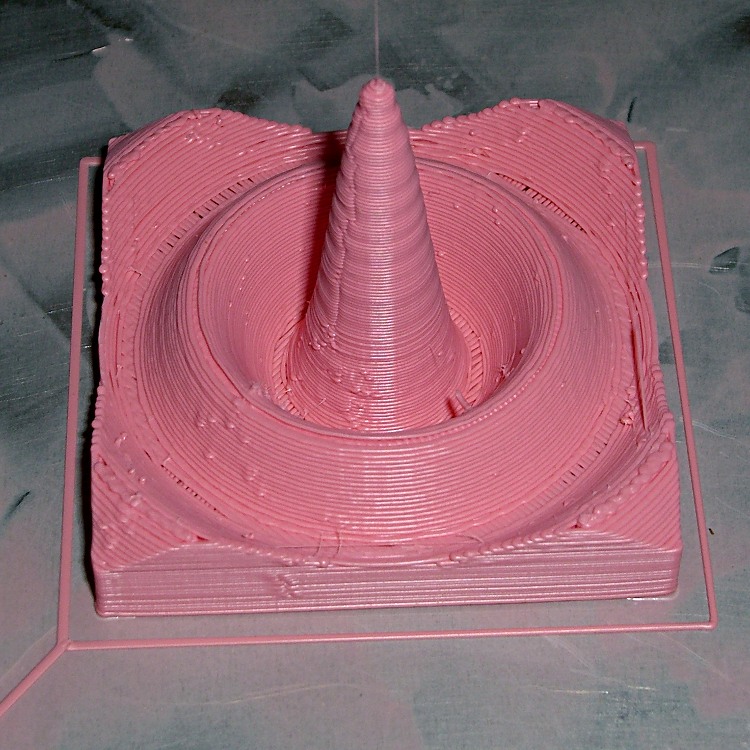

Finished sinc
Finished sinc

I built the sinc function to see if circles were doing better after re-tensioning the belts, although this was before I replaced the X axis stepper. If you look carefully, you can see the defined-out-of-existence singularity emerging from the exact dead center of the central peak.

My Shop Assistant took it to school, where her math teacher now thinks having a 3D printer would be an asset…

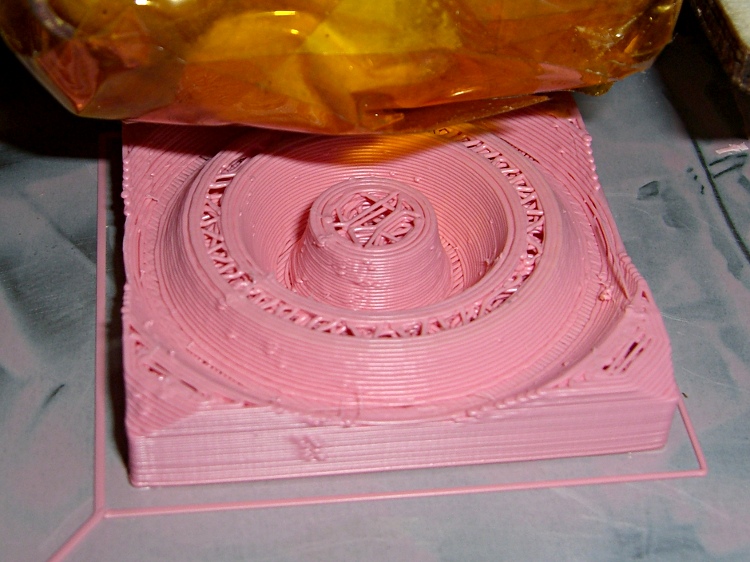

Anyhow, this view of the first ring shows some blobs that may be coming from Reversal, which is at 25 rpm / 90 ms / 90 ms / no early turn-on or turn-off.

Building sinc - inner ring
Building sinc - inner ring

Building the central peak above the ring took forever, as Cool limited the speed to ensure each layer took 15 seconds. The last few layers had those stepper. LEDs. Blinking. At. Less. Than. Walking. Speed.

Building sinc - peak
Building sinc - peak

Now, what would Barbie use this thing for, anyway?
