  • BOB Yak Flag Ferrule Failure

    At some point along a recent grocery ride, the top half of the flag mast on the BOB Yak trailer went missing.

    We had a general idea of where it happened, but, fortunately, I Have The Technology:

    This slideshow requires JavaScript.

    The flag and pole ended up just off the road, only slightly the worse for wear. I hadn’t planned on riding two dozen miles on a rather hot and humid summer day, but so it goes.

    The lower ferrule chafed away enough of the fiberglass pole that it could slip downward, eventually releasing the upper ferrule:

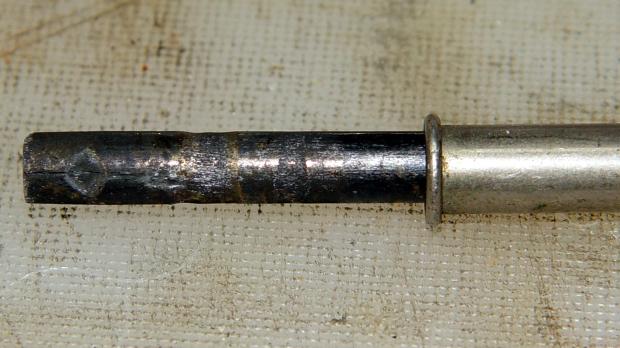

    BOB Yak Flag - ferrule chafing
    BOB Yak Flag – ferrule chafing

    That split near the end enlarged the pole enough that the ferrule couldn’t slide off, so I contented myself with cross-drilling the whole affair for a 1-72 screw, packing epoxy into the hole, tucking more epoxy up inside the bottom end of the ferrule, then burying the screw and nut:

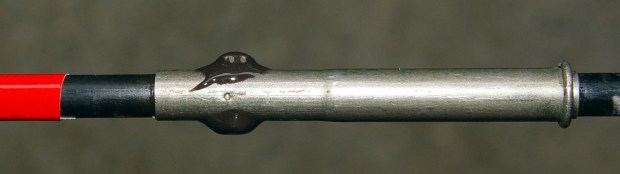

    BOB Yak Flag - reassembled ferrule
    BOB Yak Flag – reassembled ferrule

    While I had it on the bench, I replaced the somewhat shredded fluorescent orange tape just under the flag and added a strip of diagonally striped red-and-white retroreflective tape for an attractive barber-pole appearance.

    That should last for a little while longer…
