I picked up a horsehair dust brush from eBay as a lightweight substitute for the Electrolux aluminum ball, discovered that an adapter I’d already made fit perfectly, did the happy dance, and printed one for the brush. That worked perfectly for half a year, whereupon:

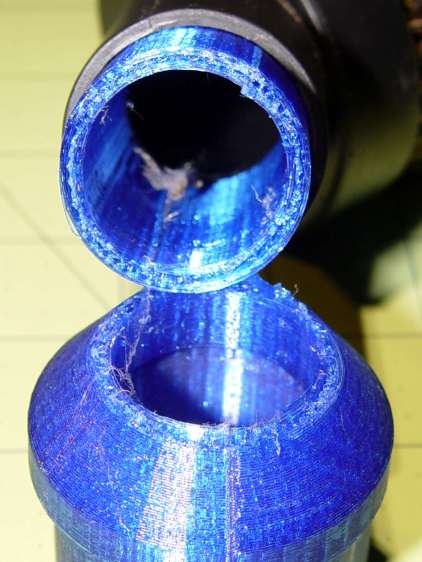

Dust Brush Adapter - broken parts — Dust Brush Adapter – broken parts

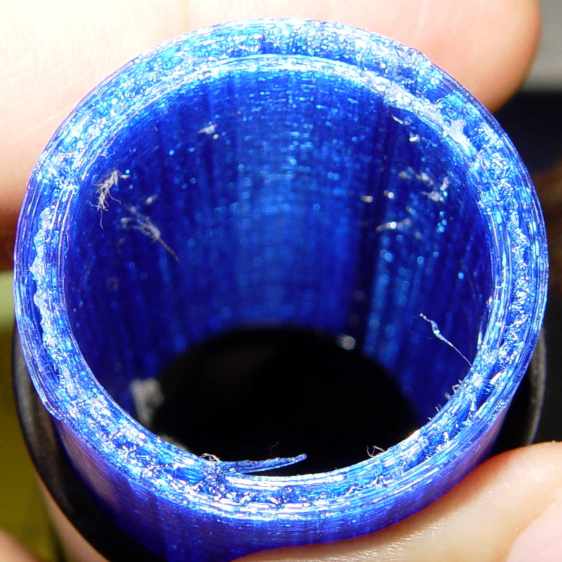

It broke about where I expected, along the layer lines at the cross section where the snout joins the fitting. You can see the three perimeter shells I hoped would strengthen the part:

Dust Brush Adapter - layer separation — Dust Brush Adapter – layer separation

That has the usual 15% 3D Honeycomb infill, although there’s not a lot area for infill.

There’s obviously a stress concentration there and making the wall somewhat thicker (to get more plastic-to-plastic area) might suffice. I’m not convinced the layer bonding would be good enough, even with more wall area, to resist the stress; that’s pretty much a textbook example of how & where 3D printed parts fail.

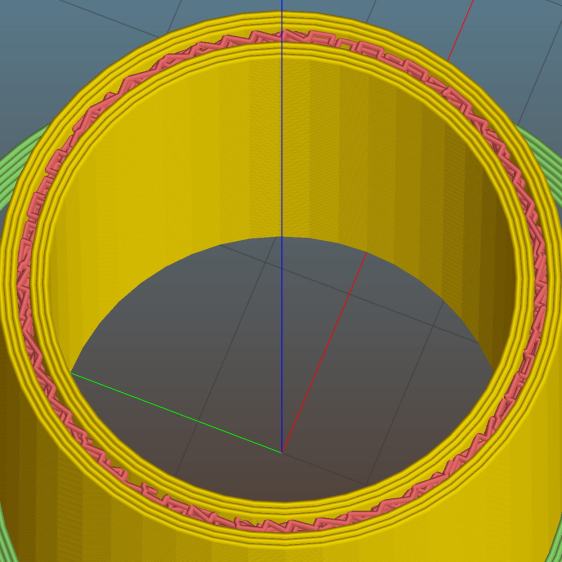

That cross section should look like this:

Dust Brush Adapter - Snout infill - Slic3r preview — Dust Brush Adapter – Snout infill – Slic3r preview

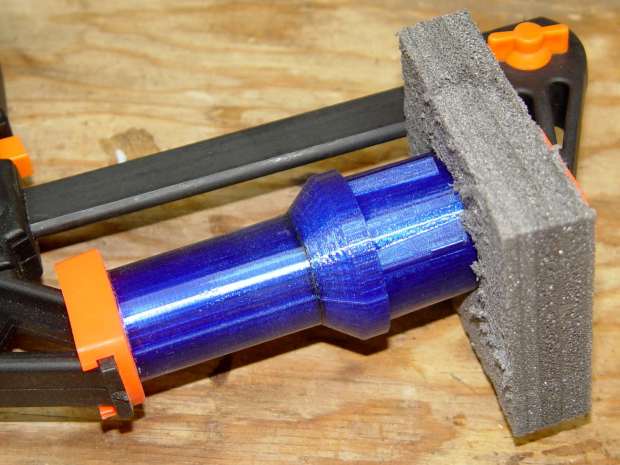

Anyhow, I buttered the snout’s broken end with JB Kwik epoxy, aligned the parts, and clamped them overnight:

Dust Brush Adapter - clamping — Dust Brush Adapter – clamping

The source code now has a separate solid model for the dust brush featuring a slightly shorter snout; if when the epoxy fails, we’ll see how that changes the results. I could add ribs and suchlike along the outside, none of which seem worth the effort right now. Fairing the joint between those two straight sections would achieve the same end, with even more effort, because OpenSCAD.

The OpenSCAD source code as a GitHub Gist:

	// Kenmore vacuum cleaner nozzle adapters
	// Ed Nisley KE4ZNU August 2016

	// Layout options

	Layout = "DustBrush"; // MaleFitting CoilWand FloorBrush CreviceTool ScrubbyTool LuxBrush DustBrush

	//- Extrusion parameters must match reality!
	// Print with +1 shells and 3 solid layers

	ThreadThick = 0.25;
	ThreadWidth = 0.40;

	HoleWindage = 0.2;

	function IntegerMultiple(Size,Unit) = Unit * ceil(Size / Unit);

	Protrusion = 0.1; // make holes end cleanly

	//———————-
	// Dimensions

	ID1 = 0; // for tapered tubes
	ID2 = 1;
	OD1 = 2;
	OD2 = 3;
	LENGTH = 4;

	OEMTube = [35.0,35.0,41.7,40.5,30.0]; // main fitting tube
	EndStop = [OEMTube[ID1],OEMTube[ID2],47.5,47.5,6.5]; // flange at end of main tube

	FittingOAL = OEMTube[LENGTH] + EndStop[LENGTH];

	$fn = 12*4;

	//———————-
	// Useful routines

	module PolyCyl(Dia,Height,ForceSides=0) { // based on nophead's polyholes

	Sides = (ForceSides != 0) ? ForceSides : (ceil(Dia) + 2);
	FixDia = Dia / cos(180/Sides);
	cylinder(r=(FixDia + HoleWindage)/2,h=Height,$fn=Sides);
	}


	//——————-
	// Male fitting on end of Kenmore tools
	// This slides into the end of the handle or wand and latches firmly in place

	module MaleFitting() {

	Latch = [40,11.5,5.0]; // rectangle latch opening
	EntryAngle = 45; // latch entry ramp
	EntrySides = 16;
	EntryHeight = 15.0; // lower edge on inside of fitting

	KeyRadius = 1.0;

	translate([0,0,6.5])
	difference() {
	union() {
	cylinder(d1=OEMTube[OD1],d2=OEMTube[OD2],h=OEMTube[LENGTH]); // main tube

	hull() // insertion guide
	for (i=[-(6.0/2 – KeyRadius),(6.0/2 – KeyRadius)],
	j=[-(28.0/2 – KeyRadius),(28.0/2 – KeyRadius)],
	k=[-(26.0/2 – KeyRadius),(26.0/2 – KeyRadius)])
	translate([(i – (OEMTube[ID1]/2 + OEMTube[OD1]/2)/2 + 6.0/2),j,(k + 26.0/2 – 1.0)])
	sphere(r=KeyRadius,$fn=8);

	translate([0,0,-EndStop[LENGTH]]) // wand tube butts against this
	cylinder(d=EndStop[OD1],h=EndStop[LENGTH] + Protrusion);
	}

	translate([0,0,-OEMTube[LENGTH]]) // main bore
	cylinder(d=OEMTube[ID1],h=2OEMTube[LENGTH] + 2Protrusion);

	translate([0,-11.5/2,23.0 – 5.0]) // latch opening
	cube(Latch);

	translate([OEMTube[ID1]/2 + EntryHeight/tan(90-EntryAngle),0,0]) // latch ramp
	translate([(Latch[1]/cos(180/EntrySides))cos(EntryAngle)/2,0,(Latch[1]/cos(180/EntrySides))sin(EntryAngle)/2])
	rotate([0,-EntryAngle,0])
	intersection() {
	rotate(180/EntrySides)
	PolyCyl(Latch[1],Latch[0],EntrySides);
	translate([-(2*Latch[0])/2,0,-Protrusion])
	cube(2*Latch[0],center=true);
	}
	}
	}

	//——————-
	// Refrigerator evaporator coil wand

	module CoilWand() {

	union() {
	translate([0,0,50.0])
	rotate([180,0,0])
	difference() {
	cylinder(d1=EndStop[OD1],d2=42.0,h=50.0);
	translate([0,0,-Protrusion])
	cylinder(d1=35.0,d2=35.8,h=100);
	}
	translate([0,0,50.0 – Protrusion])
	MaleFitting();
	}
	}


	//——————-
	// Samsung floor brush

	module FloorBrush() {

	union() {
	translate([0,0,60.0])
	rotate([180,0,0])
	difference() {
	union() {
	cylinder(d1=EndStop[OD1],d2=32.4,h=10.0);
	translate([0,0,10.0 – Protrusion])
	cylinder(d1=32.4,d2=30.7,h=50.0 + Protrusion);
	}
	translate([0,0,-Protrusion])
	cylinder(d1=28.0,d2=24.0,h=100);
	}
	translate([0,0,60.0 – Protrusion])
	MaleFitting();
	}
	}


	//——————-
	// Crevice tool

	module CreviceTool() {

	union() {
	translate([0,0,60.0])
	rotate([180,0,0])
	difference() {
	union() {
	cylinder(d1=EndStop[OD1],d2=32.0,h=10.0);
	translate([0,0,10.0 – Protrusion])
	cylinder(d1=32.0,d2=30.4,h=50.0 + Protrusion);
	}
	translate([0,0,-Protrusion])
	cylinder(d1=28.0,d2=24.0,h=100);
	}
	translate([0,0,60.0 – Protrusion])
	MaleFitting();
	}
	}

	//——————-
	// Mystery brush

	module ScrubbyTool() {

	union() {
	translate([0,0,60.0])
	rotate([180,0,0])
	difference() {
	union() {
	cylinder(d1=EndStop[OD1],d2=31.8,h=10.0);
	translate([0,0,10.0 – Protrusion])
	cylinder(d1=31.8,d2=31.0,h=50.0 + Protrusion);
	}
	translate([0,0,-Protrusion])
	cylinder(d1=26.0,d2=24.0,h=100);
	}
	translate([0,0,60.0 – Protrusion])
	MaleFitting();
	}
	}

	//——————-
	// eBay horsehair dusting brush

	module DustBrush() {

	union() {
	translate([0,0,40.0])
	rotate([180,0,0])
	difference() {
	union() {
	cylinder(d1=EndStop[OD1],d2=31.8,h=10.0);
	translate([0,0,10.0 – Protrusion])
	cylinder(d1=31.6,d2=31.8,h=30.0 + Protrusion);
	}
	translate([0,0,-Protrusion])
	cylinder(d1=26.0,d2=24.0,h=100);
	}
	translate([0,0,40.0 – Protrusion])
	MaleFitting();
	}
	}


	//——————-
	// Electrolux brush ball

	module LuxBrush() {

	union() {
	translate([0,0,30.0])
	rotate([180,0,0])
	difference() {
	union() {
	cylinder(d1=EndStop[OD1],d2=30.8,h=10.0);
	translate([0,0,10.0 – Protrusion])
	cylinder(d1=30.8,d2=30.0,h=20.0 + Protrusion);
	}
	translate([0,0,-Protrusion])
	cylinder(d1=25.0,d2=23.0,h=30 + 2*Protrusion);
	}
	translate([0,0,30.0 – Protrusion])
	MaleFitting();
	}
	}



	//———————-
	// Build it!

	if (Layout == "MaleFitting")
	MaleFitting();

	if (Layout == "CoilWand")
	CoilWand();

	if (Layout == "FloorBrush")
	FloorBrush();

	if (Layout == "CreviceTool")
	CreviceTool();

	if (Layout == "DustBrush")
	DustBrush();

	if (Layout == "ScrubbyTool")
	ScrubbyTool();

	if (Layout == "LuxBrush")
	LuxBrush();

view raw Kenmore Wand Bushings.scad hosted with ❤ by GitHub
