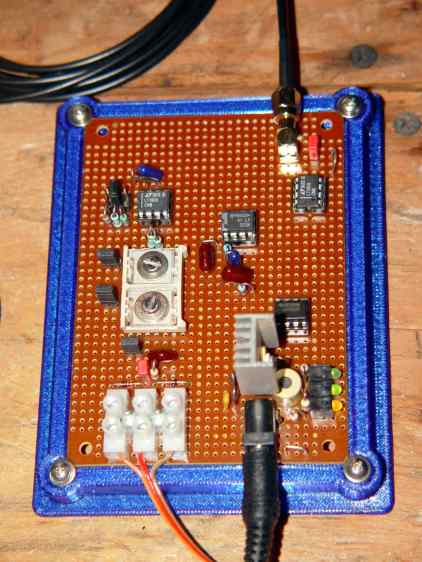

A cleaned up version of my trusty circuit board holder now keeps the 60 kHz preamp off what passes for a floor in the attic:

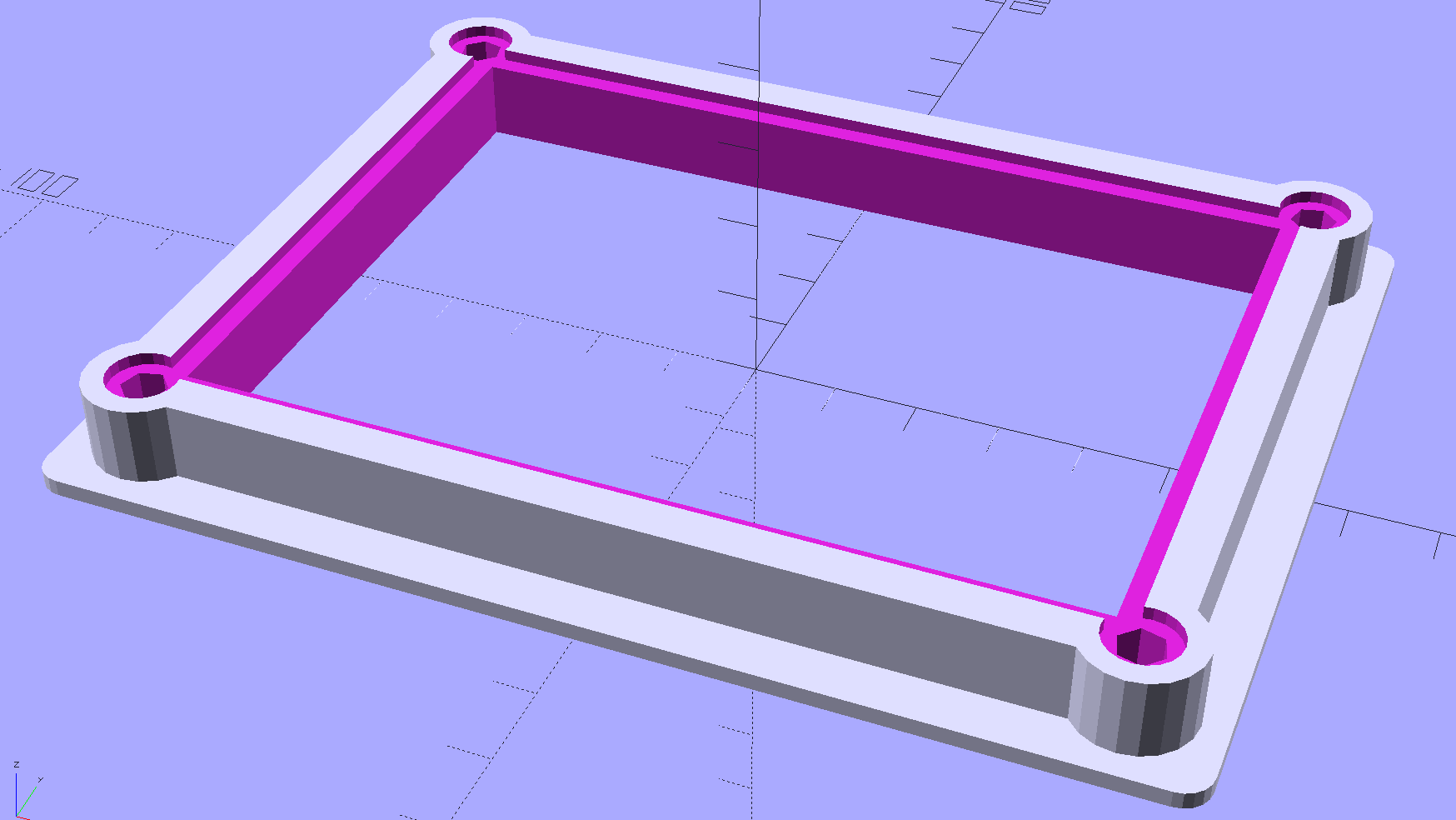

The solid model became slightly taller than before, due to a serious tangle of wiring below the board, with a narrower flange that fits just as well in the benchtop gripper:

Proto Board - 80x110 — Proto Board – 80×110

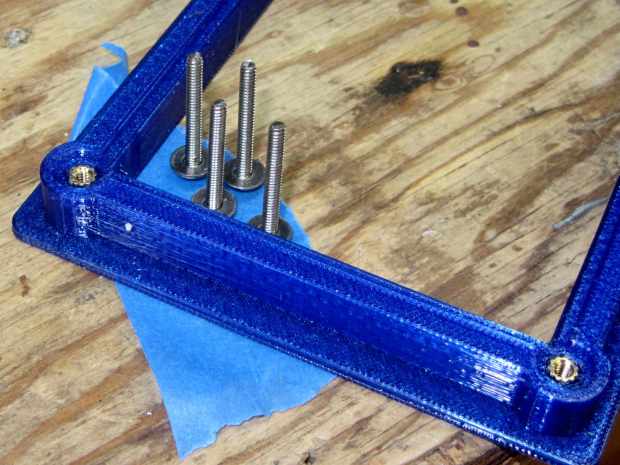

Tidy brass inserts epoxied in the corners replace the previous raw screw holes in the plastic:

Proto Board Holder - 4-40 inserts and screws — Proto Board Holder – 4-40 inserts and screws

The screws standing on their heads have washers epoxied in place, although that’s certainly not necessary; the dab of left-over epoxy called out for something. The screws got cut down to 7 mm after curing.

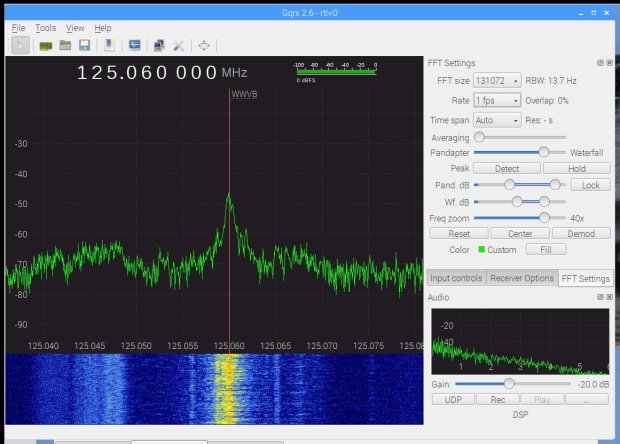

The preamp attaches to a lumpy circle of loop antenna hung from the rafters and returns reasonable results:

WWVB - morning - 2017-01-16 — WWVB – morning – 2017-01-16

The OpenSCAD source code as a GitHub Gist:

	// Test support frame for proto boards
	// Ed Nisley KE4ZNU – Jan 2017

	ClampFlange = true;

	Channel = false;

	//- Extrusion parameters – must match reality!

	ThreadThick = 0.25;
	ThreadWidth = 0.40;

	function IntegerMultiple(Size,Unit) = Unit * ceil(Size / Unit);

	Protrusion = 0.1;

	HoleWindage = 0.2;

	//- Screw sizes

	inch = 25.4;

	Tap4_40 = 0.089 * inch;
	Clear4_40 = 0.110 * inch;
	Head4_40 = 0.211 * inch;
	Head4_40Thick = 0.065 * inch;
	Nut4_40Dia = 0.228 * inch;
	Nut4_40Thick = 0.086 * inch;
	Washer4_40OD = 0.270 * inch;
	Washer4_40ID = 0.123 * inch;

	ID = 0;
	OD = 1;
	LENGTH = 2;

	Insert = [3.9,4.6,5.8];

	//- PCB sizes

	PCBSize = [110.0,80.0,1.5];
	PCBShelf = 2.0;

	Clearance = 2*[ThreadWidth,ThreadWidth,0];

	WallThick = 5.0;
	FrameHeight = 10.0;

	ScrewOffset = 0.0 + Clear4_40/2;

	ScrewSites = [[-1,1],[-1,1]]; // -1/0/+1 = left/mid/right and bottom/mid/top

	OAHeight = FrameHeight + Clearance[2] + PCBSize[2];

	FlangeExtension = 3.0;
	FlangeThick = IntegerMultiple(2.0,ThreadThick);
	Flange = PCBSize
	+ 2*[ScrewOffset,ScrewOffset,0]
	+ 2*[Washer4_40OD,Washer4_40OD,0]
	+ [2FlangeExtension,2FlangeExtension,(FlangeThick – PCBSize[2])]
	;

	echo("Flange: ",Flange);
	NumSides = 4*5;

	WireChannel = [Flange[0],15.0,3.0 + PCBSize[2]];
	WireChannelOffset = [Flange[0]/2,25.0,(FrameHeight + PCBSize[2] – WireChannel[2]/2)];

	//- Adjust hole diameter to make the size come out right

	module PolyCyl(Dia,Height,ForceSides=0) { // based on nophead's polyholes

	Sides = (ForceSides != 0) ? ForceSides : (ceil(Dia) + 2);

	FixDia = Dia / cos(180/Sides);

	cylinder(r=(FixDia + HoleWindage)/2,h=Height,$fn=Sides);
	}

	//- Build it

	difference() {
	union() { // body block
	translate([0,0,OAHeight/2])
	cube(PCBSize + Clearance + [2WallThick,2WallThick,FrameHeight],center=true);

	for (x=[-1,1], y=[-1,1]) { // screw bosses
	translate([x*(PCBSize[0]/2 + ScrewOffset),
	y*(PCBSize[1]/2 + ScrewOffset),
	0])
	cylinder(r=Washer4_40OD,h=OAHeight,$fn=NumSides);
	}

	if (ClampFlange) // flange for work holder
	linear_extrude(height=Flange[2])
	hull()
	for (i=[-1,1], j=[-1,1]) {
	translate([i(Flange[0]/2 – Washer4_40OD/2),j(Flange[1]/2 – Washer4_40OD/2)])
	circle(d=Washer4_40OD,$fn=NumSides);
	}
	}

	for (x=[-1,1], y=[-1,1]) { // screw position indexes

	translate([x*(PCBSize[0]/2 + ScrewOffset),
	y*(PCBSize[1]/2 + ScrewOffset),
	-Protrusion])
	rotate(xy180/(2*6))
	PolyCyl(Clear4_40,(OAHeight + 2*Protrusion),6); // screw clearance holes

	translate([x*(PCBSize[0]/2 + ScrewOffset),
	y*(PCBSize[1]/2 + ScrewOffset),
	OAHeight – PCBSize[2] – Insert[LENGTH]])
	rotate(xy180/(2*6))
	PolyCyl(Insert[OD],Insert[LENGTH] + Protrusion,6); // inserts

	translate([x*(PCBSize[0]/2 + ScrewOffset),
	y*(PCBSize[1]/2 + ScrewOffset),
	OAHeight – PCBSize[2]])
	PolyCyl(1.2*Washer4_40OD,(PCBSize[2] + Protrusion),NumSides); // washers
	}

	translate([0,0,OAHeight/2]) // through hole below PCB
	cube(PCBSize – 2[PCBShelf,PCBShelf,0] + [0,0,2OAHeight],center=true);

	translate([0,0,(OAHeight – (PCBSize[2] + Clearance[2])/2 + Protrusion/2)]) // PCB pocket on top
	cube(PCBSize + Clearance + [0,0,Protrusion],center=true);

	if (Channel)
	translate(WireChannelOffset) // opening for wires from bottom side
	cube(WireChannel + [0,0,Protrusion],center=true);
	}

view raw Proto Board Holder.scad hosted with ❤ by GitHub
