Given that I no longer trust any of the knockoff Neopixels, I wired the remaining PCB panel into a single hellish test fixture:

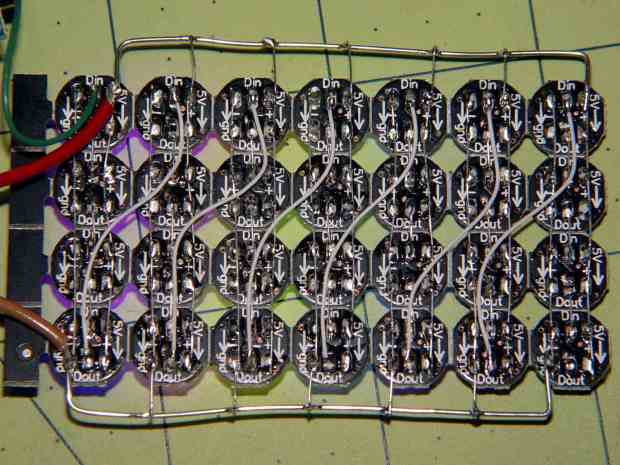

WS2812 4x7 LED test fixture - wiring — WS2812 4×7 LED test fixture – wiring

The 22 AWG wires deliver +5 V and Common, with good old-school Wire-Wrap wire passing to the four LEDs betweem them. The data daisy chain snakes through the entire array.

It seems only fitting to use a knockoff Arduino Nano as the controller:

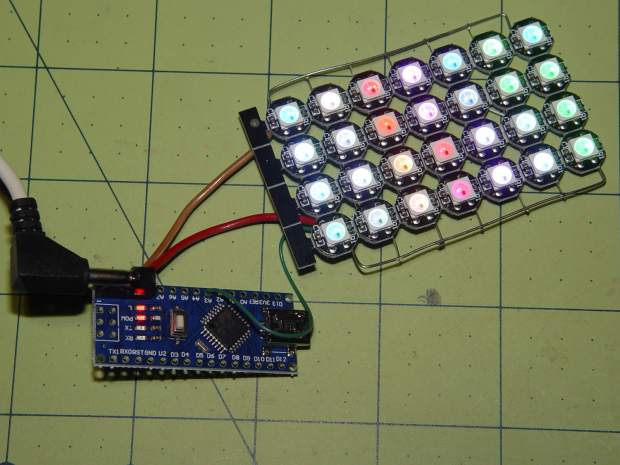

WS2812 4x7 LED test fixture - front — WS2812 4×7 LED test fixture – front

The code descends from an early version of the vacuum tube lights, gutted of all the randomizing and fancy features. It updates the LEDs every 20 ms and, with only 100 points per cycle, the colors tick along fast enough reassure you (well, me) that the thing is doing something: the pattern takes about 20 seconds from one end of the string to the other.

At full throttle the whole array draws 1.68 A = 60 mA × 28 with all LEDs at full white, which happens only during the initial lamp test and browns out the supply (literally: the blue LEDs fade out first and produce an amber glow). The cheap 5 V 500 mA power supply definitely can’t power the entire array at full brightness.

The power supply current waveform looks fairly choppy, with peaks at the 400 Hz PWM frequency:

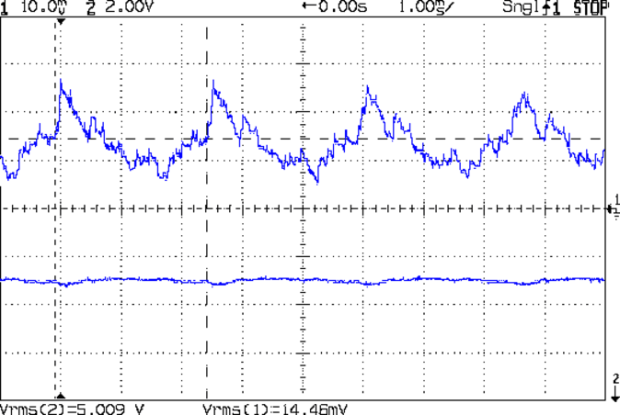

WS2812 4x7 array - 200 mA VCC — WS2812 4×7 array – 200 mA VCC

With the Tek current probe set at 200 mA/div, the upper trace shows 290 mA RMS. That’s at MaxPWM = 127, which reduces the average current but doesn’t affect the peaks. At full brightness the average current should be around 600 mA, a tad more than the supply can provide, but maybe it’ll survive; the bottom trace shows a nice average, but the minimum hits 4.6 V during peak current.

Assuming that perversity will be conserved as usual, none of the LEDs will fail for as long as I’m willing to let them cook.

The Arduino source code as a GitHub Gist:

	// WS2812 LED array exerciser
	// Ed Nisley – KE4ANU – February 2017

	#include <Adafruit_NeoPixel.h>

	//———-
	// Pin assignments

	const byte PIN_NEO = A3; // DO – data out to first Neopixel

	const byte PIN_HEARTBEAT = 13; // DO – Arduino LED

	//———-
	// Constants

	#define UPDATEINTERVAL 20ul
	const unsigned long UpdateMS = UPDATEINTERVAL – 1ul; // update LEDs only this many ms apart minus loop() overhead

	// number of steps per cycle, before applying prime factors
	#define RESOLUTION 100

	// phase difference between LEDs for slowest color
	#define BASEPHASE (PI/16.0)

	// LEDs in each row
	#define NUMCOLS 4

	// number of rows
	#define NUMROWS 7

	#define NUMPIXELS (NUMCOLS * NUMROWS)

	#define PINDEX(row,col) (row*NUMCOLS + col)

	//———-
	// Globals

	// instantiate the Neopixel buffer array

	Adafruit_NeoPixel strip = Adafruit_NeoPixel(NUMPIXELS, PIN_NEO, NEO_GRB + NEO_KHZ800);

	uint32_t FullWhite = strip.Color(255,255,255);
	uint32_t FullOff = strip.Color(0,0,0);

	struct pixcolor_t {
	byte Prime;
	unsigned int NumSteps;
	unsigned int Step;
	float StepSize;
	float TubePhase;
	byte MaxPWM;
	};

	// colors in each LED
	enum pixcolors {RED, GREEN, BLUE, PIXELSIZE};

	struct pixcolor_t Pixels[PIXELSIZE]; // all the data for each pixel color intensity

	unsigned long MillisNow;
	unsigned long MillisThen;

	//– Figure PWM based on current state

	byte StepColor(byte Color, float Phi) {

	byte Value;

	Value = (Pixels[Color].MaxPWM / 2.0) * (1.0 + sin(Pixels[Color].Step * Pixels[Color].StepSize + Phi));

	// Value = (Value) ? Value : Pixels[Color].MaxPWM; // flash at dimmest points
	// printf("C: %d Phi: %d Value: %d\r\n",Color,(int)(Phi*180.0/PI),Value);

	return Value;
	}


	//– Helper routine for printf()

	int s_putc(char c, FILE *t) {
	Serial.write(c);
	}

	//——————
	// Set the mood

	void setup() {

	pinMode(PIN_HEARTBEAT,OUTPUT);
	digitalWrite(PIN_HEARTBEAT,LOW); // show we arrived

	Serial.begin(57600);
	fdevopen(&s_putc,0); // set up serial output for printf()

	printf("WS2812 array exerciser\r\nEd Nisley – KE4ZNU – February 2017\r\n");

	/// set up Neopixels

	strip.begin();
	strip.show();

	// lamp test: run a brilliant white dot along the length of the strip

	printf("Lamp test: walking white\r\n");

	strip.setPixelColor(0,FullWhite);
	strip.show();
	delay(250);

	for (int i=1; i<NUMPIXELS; i++) {
	digitalWrite(PIN_HEARTBEAT,HIGH);
	strip.setPixelColor(i-1,FullOff);
	strip.setPixelColor(i,FullWhite);
	strip.show();
	digitalWrite(PIN_HEARTBEAT,LOW);
	delay(250);
	}

	strip.setPixelColor(NUMPIXELS – 1,FullOff);
	strip.show();
	delay(250);

	// fill the array, row by row

	printf(" … fill\r\n");

	for (int i=0; i < NUMROWS; i++) { // for each row
	digitalWrite(PIN_HEARTBEAT,HIGH);
	for (int j=0; j < NUMCOLS; j++) {
	strip.setPixelColor(PINDEX(i,j),FullWhite);
	strip.show();
	delay(100);
	}
	digitalWrite(PIN_HEARTBEAT,LOW);
	}

	// clear to black, column by column

	printf(" … clear\r\n");

	for (int j=NUMCOLS-1; j>=0; j–) { // for each column
	digitalWrite(PIN_HEARTBEAT,HIGH);
	for (int i=NUMROWS-1; i>=0; i–) {
	strip.setPixelColor(PINDEX(i,j),FullOff);
	strip.show();
	delay(100);
	}
	digitalWrite(PIN_HEARTBEAT,LOW);
	}

	delay(1000);

	// set up the color generators

	MillisNow = MillisThen = millis();
	printf("First random number: %ld\r\n",random(10));

	Pixels[RED].Prime = 11;
	Pixels[GREEN].Prime = 7;
	Pixels[BLUE].Prime = 5;
	printf("Primes: (%d,%d,%d)\r\n",Pixels[RED].Prime,Pixels[GREEN].Prime,Pixels[BLUE].Prime);

	unsigned int PixelSteps = (unsigned int) ((BASEPHASE / TWO_PI) *
	RESOLUTION * (unsigned int) max(max(Pixels[RED].Prime,Pixels[GREEN].Prime),Pixels[BLUE].Prime));
	printf("Pixel phase offset: %d deg = %d steps\r\n",(int)(BASEPHASE*(360.0/TWO_PI)),PixelSteps);

	Pixels[RED].MaxPWM = 127;
	Pixels[GREEN].MaxPWM = 127;
	Pixels[BLUE].MaxPWM = 127;

	for (byte c=0; c < PIXELSIZE; c++) {
	Pixels[c].NumSteps = RESOLUTION * (unsigned int) Pixels[c].Prime;
	Pixels[c].Step = (3*Pixels[c].NumSteps)/4;
	Pixels[c].StepSize = TWO_PI / Pixels[c].NumSteps; // in radians per step
	Pixels[c].TubePhase = PixelSteps * Pixels[c].StepSize; // radians per tube

	printf("c: %d Steps: %5d Init: %5d",c,Pixels[c].NumSteps,Pixels[c].Step);
	printf(" PWM: %3d Phi %3d deg\r\n",Pixels[c].MaxPWM,(int)(Pixels[c].TubePhase*(360.0/TWO_PI)));
	}


	}

	//——————
	// Run the mood

	void loop() {

	MillisNow = millis();
	if ((MillisNow – MillisThen) > UpdateMS) {
	digitalWrite(PIN_HEARTBEAT,HIGH);

	unsigned int AllSteps = 0;
	for (byte c=0; c < PIXELSIZE; c++) { // step to next increment in each color
	if (++Pixels[c].Step >= Pixels[c].NumSteps) {
	Pixels[c].Step = 0;
	printf("Color %d steps %5d at %8ld delta %ld ms\r\n",c,Pixels[c].NumSteps,MillisNow,(MillisNow – MillisThen));
	}
	AllSteps += Pixels[c].Step; // will be zero only when all wrap at once
	}

	if (0 == AllSteps) {
	printf("Grand cycle at: %ld\r\n",MillisNow);
	}

	for (int k=0; k < NUMPIXELS; k++) { // for each pixel
	byte Value[PIXELSIZE];
	for (byte c=0; c < PIXELSIZE; c++) { // … for each color
	Value[c] = StepColor(c,-k*Pixels[c].TubePhase); // figure new PWM value
	// Value[c] = (c == RED && Value[c] == 0) ? Pixels[c].MaxPWM : Value[c]; // flash highlight for tracking
	}
	uint32_t UniColor = strip.Color(Value[RED],Value[GREEN],Value[BLUE]);
	strip.setPixelColor(k,UniColor);
	}
	strip.show();

	MillisThen = MillisNow;
	digitalWrite(PIN_HEARTBEAT,LOW);
	}

	}
