These spots might come in handy as status indicators and tiny mode control buttons:

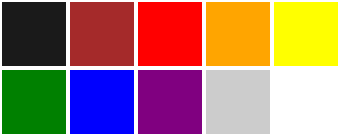

The montage is 800% of the actual 8×8 pixel size that’s appropriate for the Adafruit TFT LCD.
They’re generated from the standard colors, with the “black” patch being a dark gray so it doesn’t vanish:
# create resistor-coded color spots # Ed Nisley - KE4ZNU # January 2015 SZ=8x8 convert -size $SZ canvas:gray10 -type truecolor Res0.bmp convert -size $SZ canvas:brown -type truecolor Res1.bmp convert -size $SZ canvas:red -type truecolor Res2.bmp convert -size $SZ canvas:orange -type truecolor Res3.bmp convert -size $SZ canvas:yellow -type truecolor Res4.bmp convert -size $SZ canvas:green -type truecolor Res5.bmp convert -size $SZ canvas:blue -type truecolor Res6.bmp convert -size $SZ canvas:purple -type truecolor Res7.bmp convert -size $SZ canvas:gray80 -type truecolor Res8.bmp convert -size $SZ canvas:white -type truecolor Res9.bmp montage Res*bmp -tile 5x -geometry +2+2 -resize 800% Res.png
For a pure indicator, it’d be easier to slap a spot on the screen with the Adafruit GFX library’s fillRect() function. If you’re setting up a generic button handler, then button bitmap images make more sense.
