  • Arduino vs. ATMega168 Chip Pinouts

    The Arduino pin names are silkscreened right on the board, but sometimes you must know the corresponding ATMega168 pin name. I printed out The Fine Manual and penciled in the Arduino names, but that’s getting smudgy.

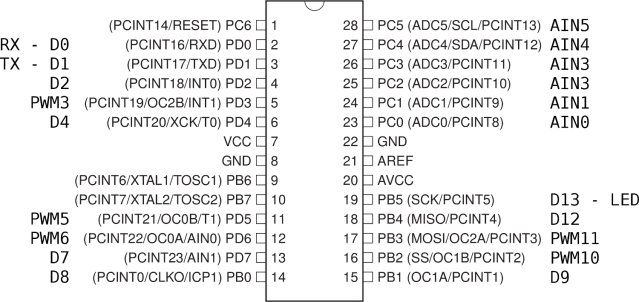

    Herewith, the ATmega168 pinout with neatly printed Arduino pin names.

    Arduino vs ATMega168 chip pinouts
    Arduino vs ATMega168 chip pinouts

    [Update:Turns out there’s an Official Version.]

    Sometimes, you also must know the relation between hardware Timers and PWM output pins:

    OC0A PWM6 PWM3 OC2B
    OC0B PWM5 PWM5 OC0B
    OC1A PWM9 PWM6 OC0A
    OC1B PWM10 PWM9 OC1A
    OC2A PWM11 PWM10 OC1B
    OC2B PWM3 PWM11 OC2A
