  • CNC Platform Corner Clip Fixture

    This is a classic case of investing more time and effort creating the fixture than machining the parts.

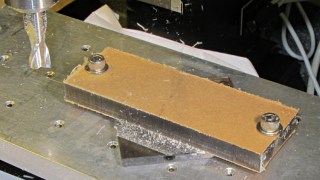

    Start by squaring up the block, which came from the end of a random chunk of smoke gray polycarbonate, with two 10-32 holes matching the tooling plate hole spacing:

    Corner Clip Fixture - squaring
    Corner Clip Fixture – squaring

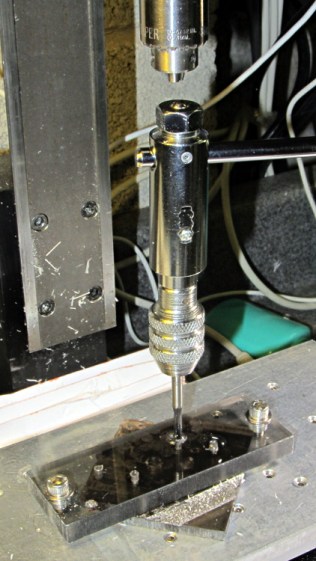

    Then drill-and-tap four holes:

    Corner Clip Fixture - tapping
    Corner Clip Fixture – tapping

    The left station will be for drilling the blanks clamped under a sacrificial sheet, so those screw holes aren’t used for anything other than clearance; the top millimeter will get chewed up pretty quickly. The screws in the right station will clamp a stack of drilled blanks under a cover plate. If I went into production, I could see using both stations for both functions, but …

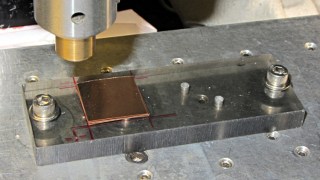

    There’s a locating pip in the front left corner that works perfectly with laser alignment:

    Corner Clip Fixture - aligning
    Corner Clip Fixture – aligning

    The blank sheets show where they’d be located for drilling, minus the sacrificial sheet and its clamps that you’ll see below.

    The G54 coordinate system origin sits at the locating pip. The G-Code then slaps a G55 origin at each of the two stations in turn to simplify their coordinates, with offsets from M54:

    • Drilling = (+5,+5)
    • Milling = (+40,+5)

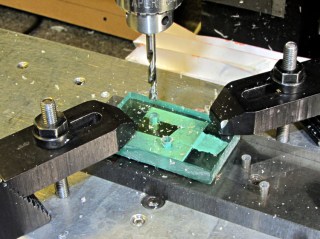

    With all that in hand: stack, clamp, and drill some blanks:

    Corner Clip Fixture - drilling
    Corner Clip Fixture – drilling

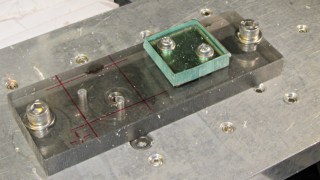

    I tried milling a single drilled blank with a sacrificial plastic top plate:

    Corner Clip Fixture - first milling setup
    Corner Clip Fixture – first milling setup

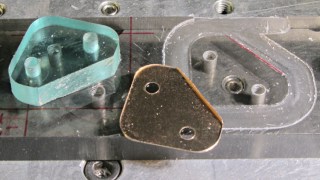

    But that didn’t work well. I don’t know if this was due to an inept combination of climb milling, using the wrong speed / feed / material / cutter, and just poor style, but the edges of the blank mashed against the clamp plate and curled, instead of cutting cleanly:

    Corner Clip Fixture - rounded-over milled edges
    Corner Clip Fixture – rounded-over milled edges

    So I made a pair of aluminum plates to clamp both sides of the blanks, then milled another stack:

    M2 platform clips - milling edges
    M2 platform clips – milling edgesM2 platform clips – milling edges

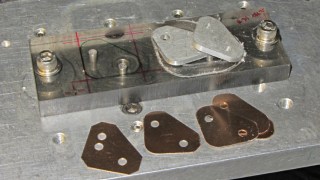

    That worked quite well, although the top and bottom clips needed some slight attention from a riffler file and I did break the edges on all the clips. This shows four new clips along with a hand-cut prototype:

    Corner Clip Fixture - end result
    Corner Clip Fixture – end result

    So I made a dozen more clips, picked the best eight for two sets, sent one set to Dan, installed the other, and … now I have a bunch of spares.

    I suppose I should sell clip sets on Etsy / eBay to all the other M2 owners, but I have no idea how to price ’em. If you want some fancy corner clips, send whatever you think they’re worth … [grin]
