  • Monthly Science: Mystery Chip

    Dragorn of Kismet gave me a handful of identical mystery chips that might date back to the 1980s. They’re surprisingly large and covered with contacts:

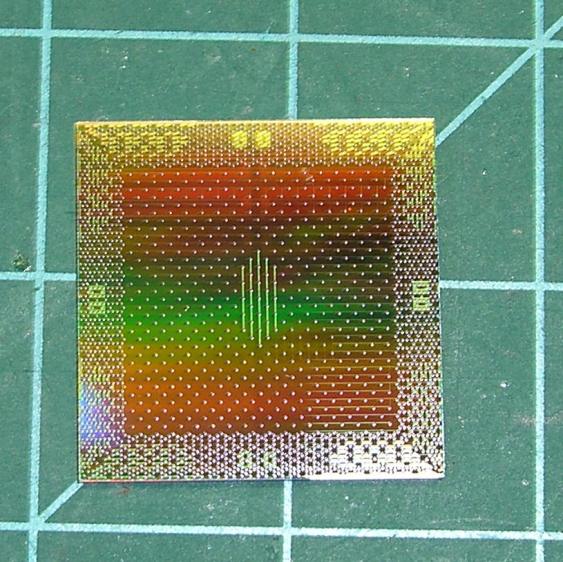

    Mystery IC - overview
    Mystery IC – overview

    There are no logos or identification anywhere on the chip. The back side is blank silicon.

    The visible patterns don’t suggest anything obvious:

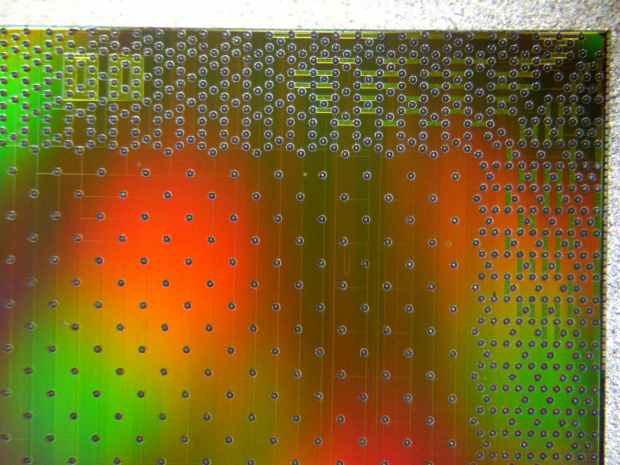

    Mystery IC - detail 1
    Mystery IC – detail 1

    The metallization layers aren’t particularly intricate:

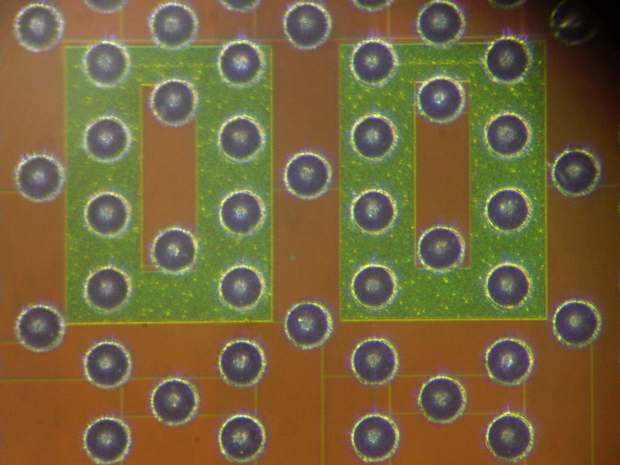

    Mystery IC - detail 2
    Mystery IC – detail 2

    Surely there’s something tucked under the top metallization; I have neither the materials nor inclination to dissolve the thing one layer at a time.

    I gave a sampling to our Larval Engineer, who says she may turn them into fancy jewelry. I’m sure the solder bumps contain lead, but …
