An old friend asked for a copy of the Smithsonian’s Apollo 11 Command Module. I started with a tiny 1:80 version to check feasibility:

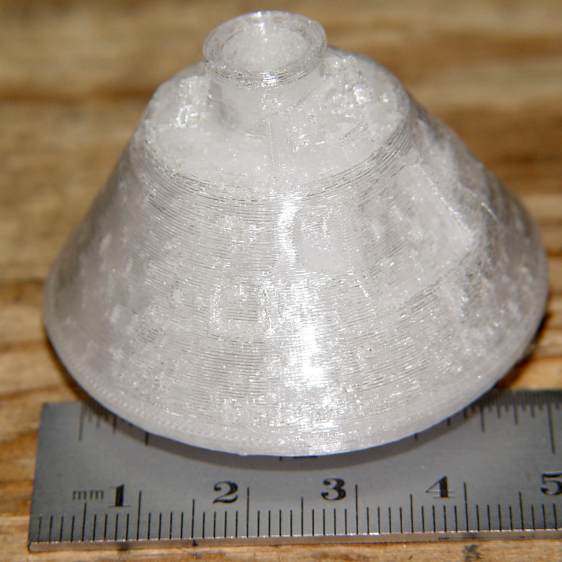

Apollo 11 CM - 1-80 scale — Apollo 11 CM – 1-80 scale

It’s obviously not printable in one piece without a ton of support, so I chopped off the heatsink and printed the parts separately in the obvious orientation:

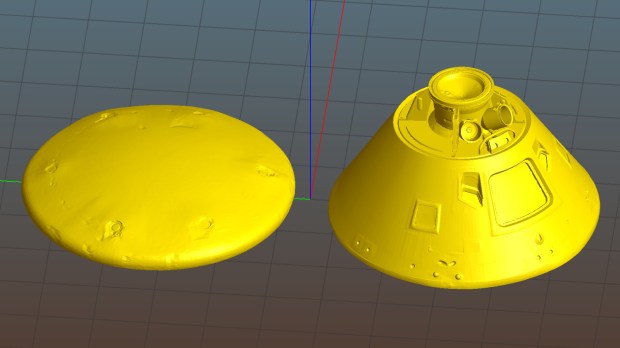

Apollo 11 CM - 1-80 scale - split - Slic3r preview — Apollo 11 CM – 1-80 scale – split – Slic3r preview

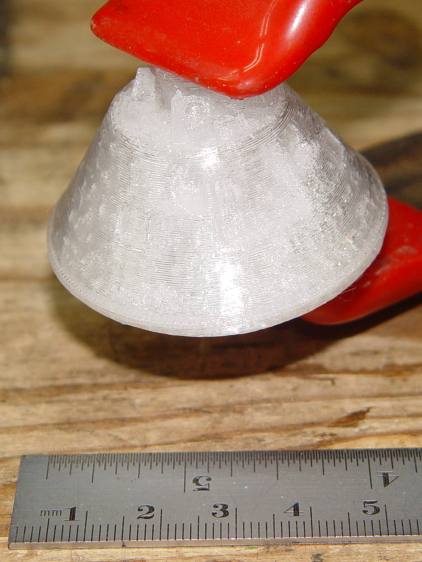

And glued them back together:

Apollo 11 CM - clamping — Apollo 11 CM – clamping

That worked well enough, even without locating pins, to give me confidence that it’d come out all right.

There’s plenty of gimcrackery surrounding the upper airlock:

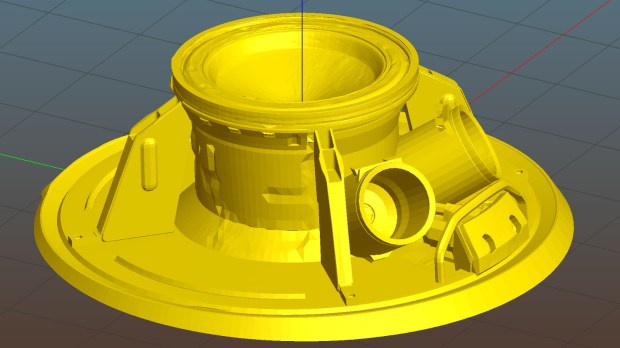

Apollo 11 CM - 1-40 scale - top - Slic3r preview — Apollo 11 CM – 1-40 scale – top – Slic3r preview

Most of which simply vanished at 1:80 scale:

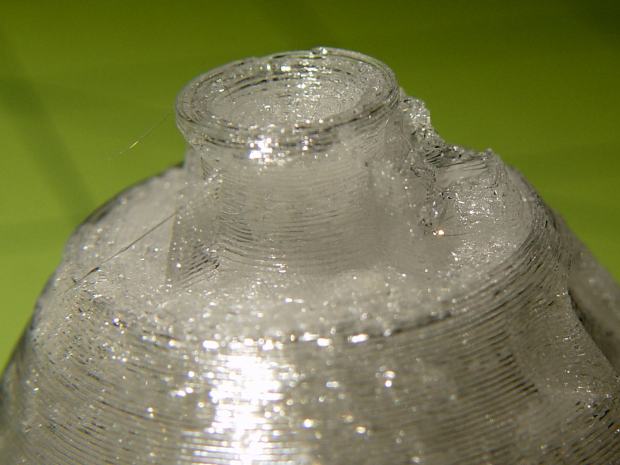

Apollo 11 CM - 1-80 scale - top detail — Apollo 11 CM – 1-80 scale – top detail

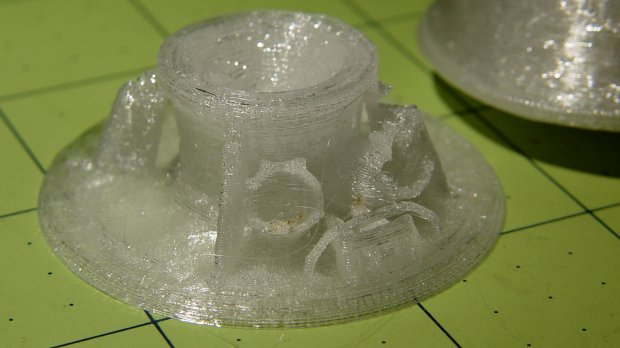

I made another cut just below the top of the capsule and ran off a 1:40 scale version that came out somewhat better, but it was still ugly:

Apollo 11 CM - 1-40 scale - mortar detail — Apollo 11 CM – 1-40 scale – mortar detail

Much to my astonishment, the grab rail over the side hatch, between the two parachute motars, came out well every time.

The giant 1:20 scale version would require something over 24 hours of printing, so I went with 1:30 in three pieces:

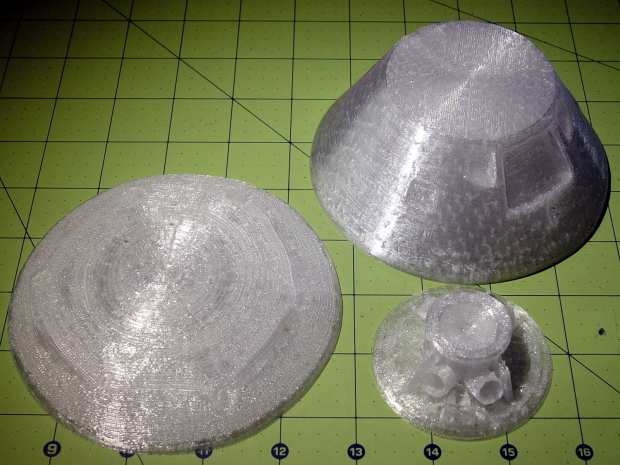

Apollo 11 CM - 1-30 scale - sections — Apollo 11 CM – 1-30 scale – sections

The top had pretty good detail:

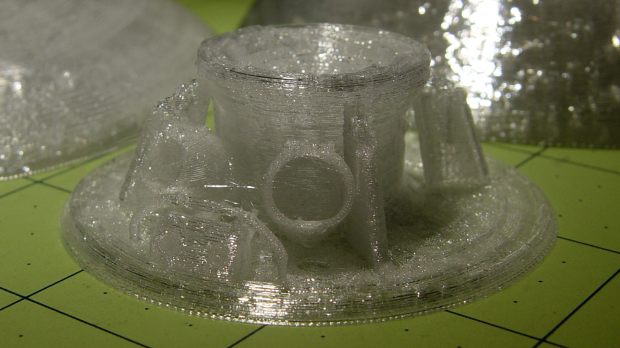

Apollo 11 CM - 1-30 scale - top section - 1 — Apollo 11 CM – 1-30 scale – top section – 1

Another view:

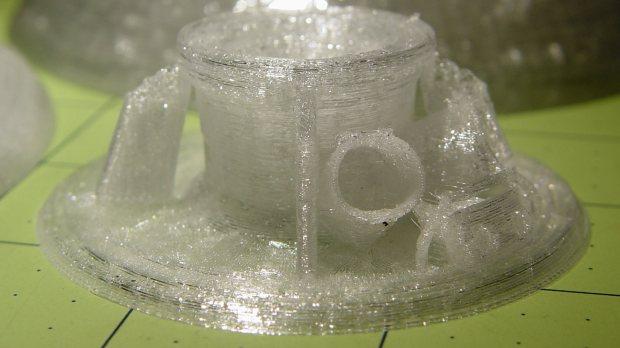

Apollo 11 CM - 1-30 scale - top section - 2 — Apollo 11 CM – 1-30 scale – top section – 2

Gluing the parts together made it ready for cleanup / finishing / painting:

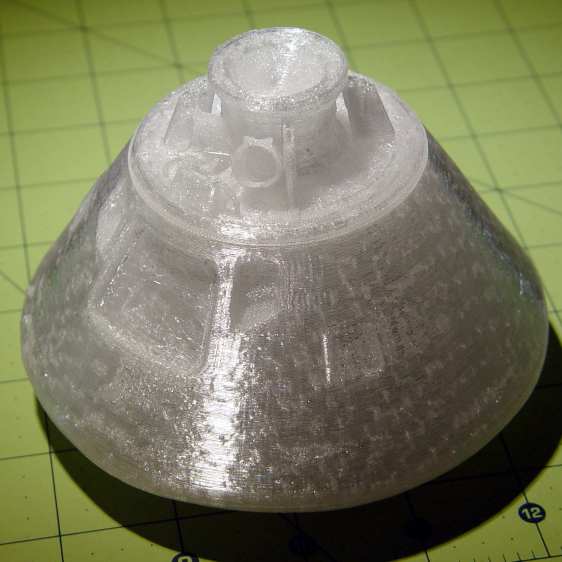

Apollo 11 CM - 1-30 scale - assembled — Apollo 11 CM – 1-30 scale – assembled

Which he’s better at than I ever will be…

Natural PETG probably isn’t the right plastic for that kind of model, but it’s what I had on hand.

Enjoy!
