Those solder joints and finicky little wires seem much too fragile on their own:

LF Loop Antenna - complete joint — LF Loop Antenna – complete joint

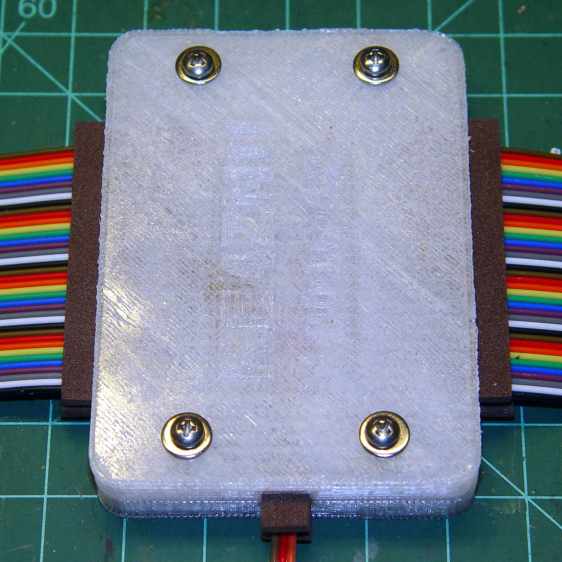

This should help:

Loop Antenna Splice - assembled — Loop Antenna Splice – assembled

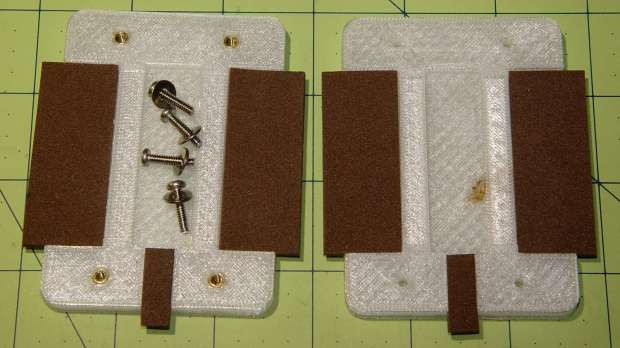

Foam blocks hold the ribbon cable in place and provide a bit of strain relief around the hard plastic edge:

Loop Antenna Splice - hardware — Loop Antenna Splice – hardware

The brass inserts in the bottom block (on the left) got epoxied in place, because they must provide quite a bit of force to clamp the foam. Their larger knurled end sits flush with the outside surface and the smaller end has one thread thickness of clearance below the inner surface.

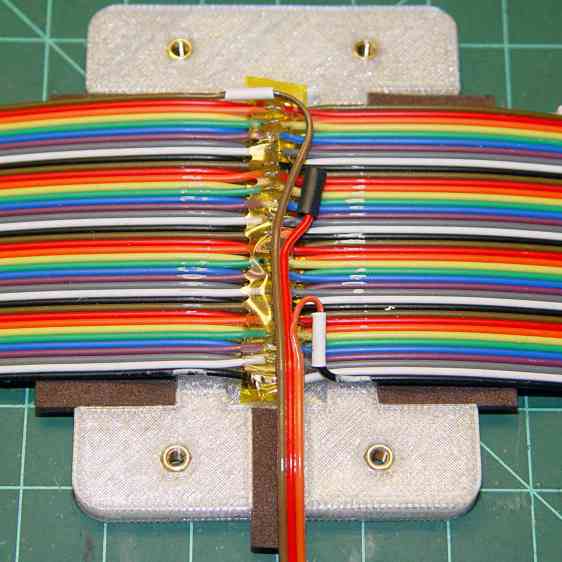

A last look at the wiring:

Loop Antenna Splice - wiring — Loop Antenna Splice – wiring

I think the preamp must sit at some distance from the antenna to prevent feedback, but that remains to be seen.

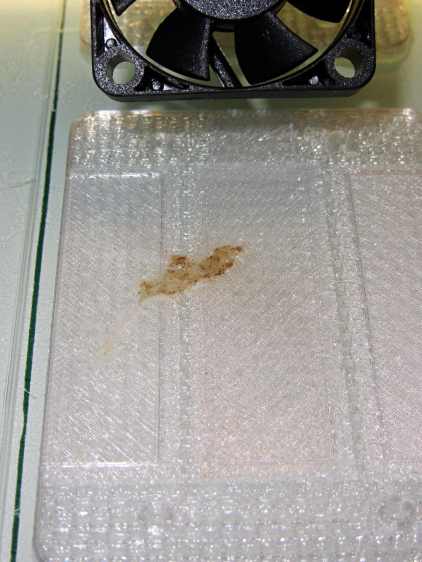

The M2’s nozzle accumulated a huge blob of PETG that turned into a giant smear:

Loop Antenna Splice - PETG booger — Loop Antenna Splice – PETG booger

Fortunately, it’s on the inside where nobody will ever see it. If you know where to look, it’s barely visible from the outside.

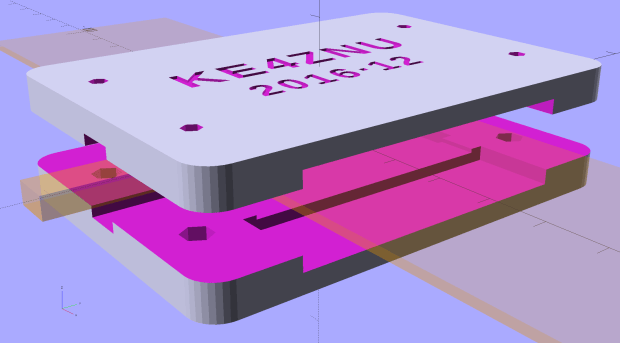

The solid model shows off the structure a bit better:

Loop Antenna Splice - show view — Loop Antenna Splice – show view

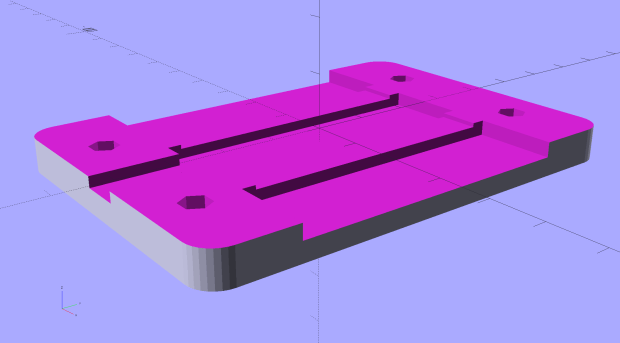

The inside view:

Loop Antenna Splice - bottom — Loop Antenna Splice – bottom

The OpenSCAD source code as a GitHub Gist:

	// Ribbon cable loop antenna splice
	// Ed Nisley KE4ZNU December 2016

	Layout = "Text";

	//- Extrusion parameters must match reality!

	ThreadThick = 0.25;
	ThreadWidth = 0.40;

	HoleWindage = 0.2;

	Protrusion = 0.1; // make holes end cleanly

	inch = 25.4;

	function IntegerMultiple(Size,Unit) = Unit * ceil(Size / Unit);

	//———-
	// Dimensions

	Cable = [200,48.0,1.5]; // X = longer than anything else

	Splice = [15.0,53.0,5.0]; // epoxy blob around joints

	Foam = [15.0,Splice[1],2.0];
	CornerRadius = 5.0;

	ID = 0;
	OD = 1;
	LENGTH = 2;

	Insert = [3.9,4.6 – 0.1,5.8]; // 4-40 knurled brass insert

	Screw = [2.7,5.5,2.0]; // OD = head LENGTH = head thickness
	Washer = [3.0,8.0,0.8];

	BlockOA = [60.0, // convenient length
	Splice[1] + 4*Washer[OD], // clearance around washer on top
	2(Insert[LENGTH] + 2ThreadThick)]; // insert sets both thicknesses

	NumScrews = 2; // screws along each side of cable
	ScrewOC = [BlockOA[0] / NumScrews,
	BlockOA[1] – 2*Washer[OD],
	2*BlockOA[2] // ensure complete holes
	];

	TextThick = 3*ThreadThick; // depth of text into surface
	TextFit = HoleWindage/2; // clearance around text polygons

	//———————-
	// Useful routines

	module PolyCyl(Dia,Height,ForceSides=0) { // based on nophead's polyholes
	Sides = (ForceSides != 0) ? ForceSides : (ceil(Dia) + 2);
	FixDia = Dia / cos(180/Sides);
	cylinder(d=(FixDia + HoleWindage),h=Height,$fn=Sides);
	}

	//—–
	// Blocky model of cable + splice + wire tap for subtraction

	module Antenna() {
	union() {
	cube(Cable,center=true);
	cube(Splice,center=true);
	for (i=[-1,1])
	translate([0,-Splice[1]/2,0])
	cube([Splice[0]/2,Splice[1],2*Foam[2]],center=true);
	}
	}

	// Outside shape of splice Block, less screw clearance

	module SpliceBlock() {
	difference() {
	hull()
	for (i=[-1,1], j=[-1,1])
	translate([i(BlockOA[0]/2 – CornerRadius),j(BlockOA[1]/2 – CornerRadius),-BlockOA[2]/2])
	cylinder(r=CornerRadius,h=BlockOA[2],$fn=4*8);
	for (i = [0:NumScrews – 1], j=[-1,1])
	translate([-BlockOA[0]/2 + ScrewOC[0]/2 + iScrewOC[0],jScrewOC[1]/2,-(BlockOA[2]/2 + Protrusion)])
	PolyCyl(Screw[ID],BlockOA[2] + 2*Protrusion,6);
	}
	}

	// Splice block less cable

	module ShapedBlock() {
	difference() {
	SpliceBlock();
	Antenna();
	}
	}

	// Bottom

	module BottomPlate() {
	difference() {
	ShapedBlock();
	translate([0,0,BlockOA[2]/2])
	cube(BlockOA + 2*[Protrusion,Protrusion,0],center=true);
	Antenna(Splice);
	for (i = [0:NumScrews – 1], j=[-1,1])
	translate([-BlockOA[0]/2 + ScrewOC[0]/2 + iScrewOC[0],jScrewOC[1]/2,-(BlockOA[2]/2 + Protrusion)])
	PolyCyl(Insert[OD],2*Insert[LENGTH],6);
	for (i=[-1,1])
	translate([i*((BlockOA[0] – Foam[0] + Protrusion)/2),0,(BlockOA[2]/2 – Cable[2]/2 – Foam[2])])
	cube([Foam[0] + Protrusion,Foam[1],BlockOA[2]],center=true);
	}
	}

	// Top

	module TopPlate() {
	difference() {
	ShapedBlock();
	translate([0,0,-BlockOA[2]/2])
	cube(BlockOA + 2*[Protrusion,Protrusion,0],center=true);
	Antenna(Splice);
	for (i=[-1,1])
	translate([i*((BlockOA[0] – Foam[0] + Protrusion)/2),0,-(BlockOA[2]/2 – Cable[2]/2 – Foam[2])])
	cube([Foam[0] + Protrusion,Foam[1],BlockOA[2]],center=true);
	rotate(90) {
	translate([0,6,BlockOA[2]/2 – TextThick])
	TextHack("KE4ZNU",8,0.0,1.15,TextThick + Protrusion);
	translate([0,-6,BlockOA[2]/2 – TextThick])
	TextHack("2016·12",6,0.0,1.20,TextThick + Protrusion);
	}
	}
	}

	module TextHack(Text="sample",Size=10,Offset=0.0,Space=1.0,Thick=ThreadThick) {
	linear_extrude(height=Thick,convexity=10)
	offset(r=Offset)
	text(Text,font=":bold",size=Size,spacing=Space,halign="center",valign="center");
	}


	//———-
	// Build them

	if (Layout == "Antenna")
	Antenna();

	if (Layout == "SpliceBlock")
	SpliceBlock();

	if (Layout == "ShapedBlock")
	ShapedBlock();

	if (Layout == "Bottom")
	BottomPlate();

	if (Layout == "Top")
	TopPlate();

	if (Layout == "Text") {
	translate([0,6,0])
	TextHack("KE4ZNU",8,-TextFit,1.15,TextThick);
	translate([0,-6,0])
	TextHack("2016·12",6,-TextFit,1.20,TextThick);
	}

	if (Layout == "Show") {
	translate([0,0,5])
	TopPlate();
	translate([0,0,-5])
	BottomPlate();
	color("Orange",0.2)
	Antenna();
	}

	if (Layout == "Build") {
	translate([0,-0.6*BlockOA[1],BlockOA[2]/2])
	rotate([180,0,0])
	TopPlate();
	translate([0,0.6*BlockOA[1],BlockOA[2]/2])
	BottomPlate();
	}

view raw Loop Antenna Splice.scad hosted with ❤ by GitHub
