  • BLDC Fan RPM vs. PWM Duty Cycle

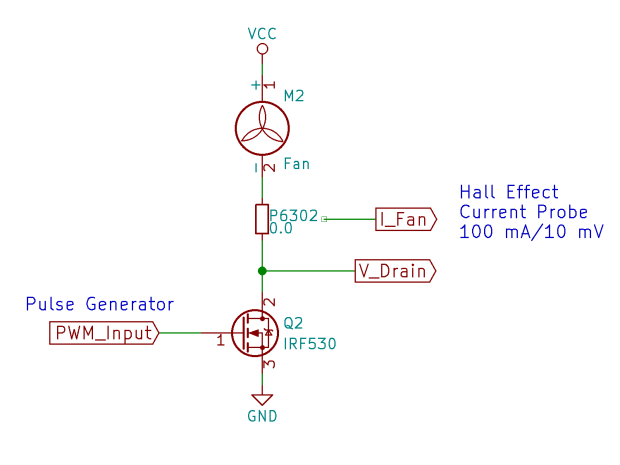

    A simpleminded MOSFET circuit provides PWM drive for the BLDC blower:

    BLDC Fan PWM Test Fixture - schematic
    BLDC Fan PWM Test Fixture – schematic

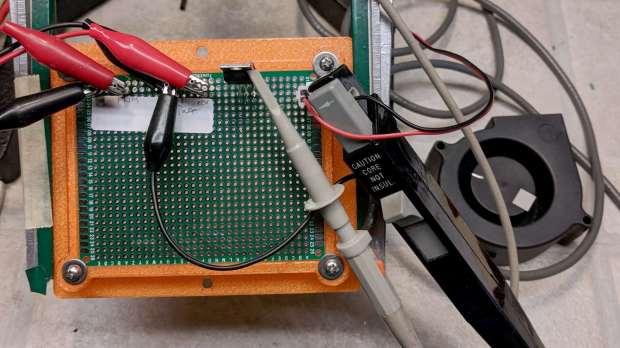

    The Tek P6302 current probe looms much larger in real life than in the schematic:

    BLDC fan PWM Test Fixture
    BLDC fan PWM Test Fixture

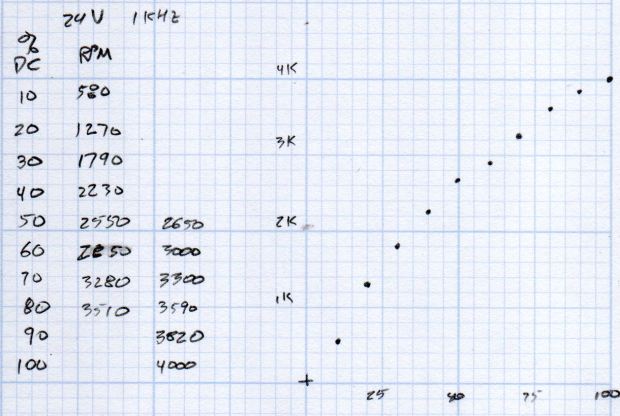

    A quick dataset shows the RPM variation against PWM duty cycle:

    BLDC Blower - RPM vs PWM - doodles
    BLDC Blower – RPM vs PWM – doodles

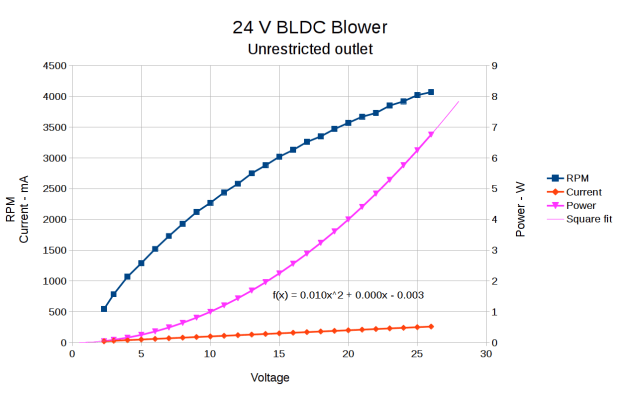

    Unsurprisingly, the RPM curve resembles the earlier results against a variable DC supply voltage:

    BLDC Blower - RPM I P vs V
    BLDC Blower – RPM I P vs V

    Capturing the current waveform is stalled behind another project, but it has exactly the voltage spikes you’d expect from forcibly switching an inductive load.
