The New Hotness

A cousin asked if my 3D printer could replace some figures gone missing from their old Fireball Island game board, a classic apparently coming out in a new & improved version.

Fortunately, solid models exist on Thingiverse:

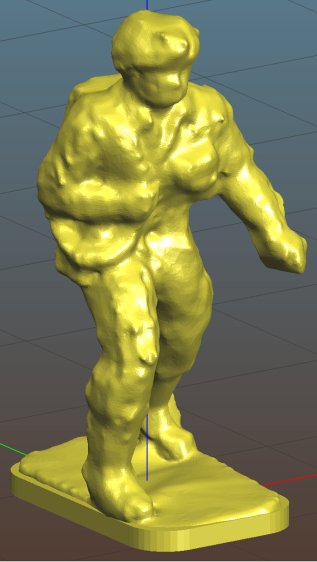

Fireball Island figure - Thingiverse 536867 — Fireball Island figure – Thingiverse 536867

Unfortunately, the left arm requires support, which Slic3r supplies with great exuberance:

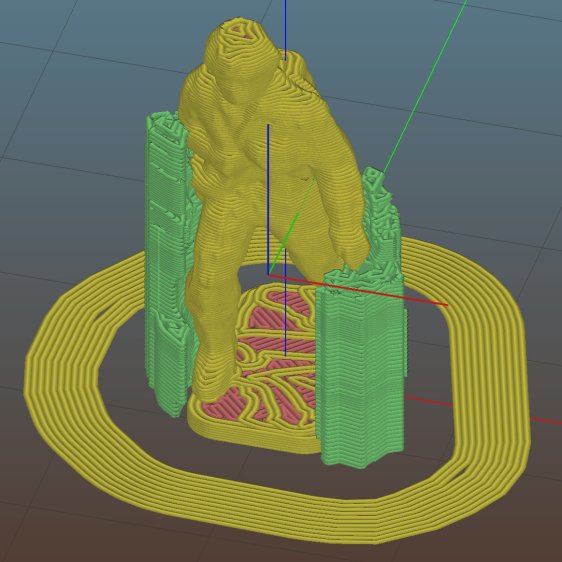

Fireball Island figure - Slic3r support — Fireball Island figure – Slic3r support

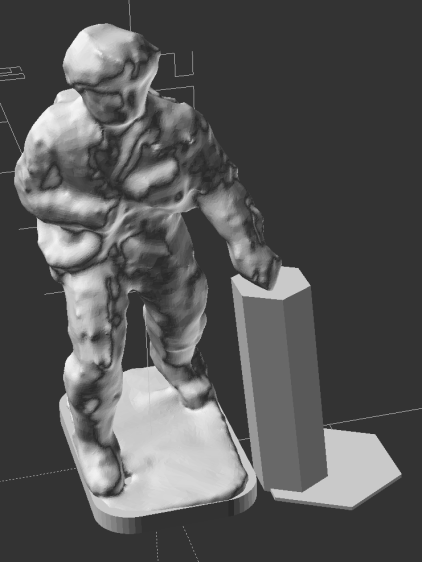

The vast tower on the figure’s right side (our left) seemed completely unnecessary, not to mention I have no enthusiasm for the peril inherent in chopping away so much plastic, so I replaced it with a simple in-model pillar:

The pillar leans from an adhesion-enhancing lily pad and ends one layer below the left hand, with all dimensions and angles chosen on the fly to make the answer come out right.

Works like a champ:

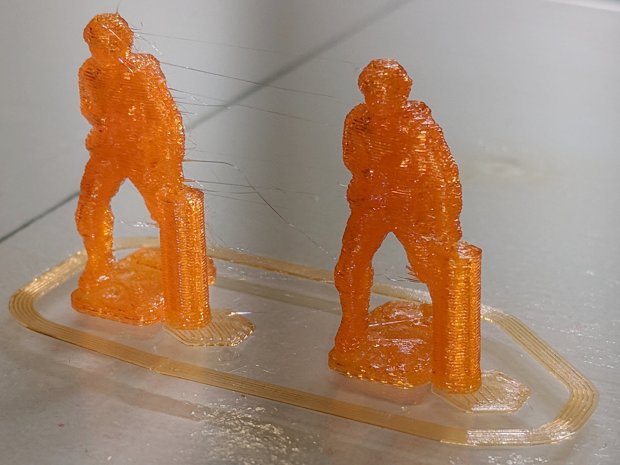

Fireball Island Figures - orange - on platform — Fireball Island Figures – orange – on platform

The dark band down the middle comes from the Pixel’s shutter.

They emerged with some PETG hair, the removal of which I left as an end-user experience.

I mailed a small box containing figures printed in my (limited!) palette of four colors, some spares Just In Case™, and a few QC rejects showing the necessity of lily pads.

Game on!

The OpenSCAD source code as a GitHub Gist:

	// Adding support under Fireball Island figure arm

	import("/mnt/bulkdata/Project Files/Thing-O-Matic/Fireball Island/Fireball Island figure – 100k.stl", convexity=5);

	translate([6.5,-4.0,0]) {
	intersection(){
	translate([-10/2,-10/2,0])
	cube([10,10,11.6],center=false);
	rotate([0,-5.0,0])
	rotate(180/6)
	cylinder(d=4.0,h=30,$fn=6,center=true);
	}

	translate([8/4,0,0])
	rotate(180/6)
	cylinder(d=8,h=0.2,$fn=6);
	}

view raw Figure Support Mods.scad hosted with ❤ by GitHub
