My attempt to use a HP 7475A plotter as a vinyl cutter failed due to its 19 g pen load limit:

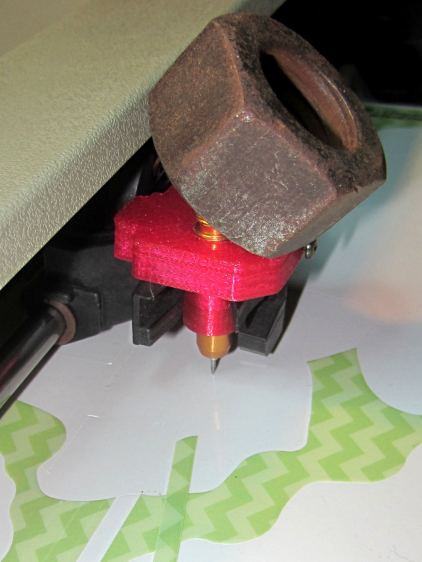

HP 7475A knife stabilizer - big nut weight — HP 7475A knife stabilizer – big nut weight

The MPCNC, however, can apply plenty of downforce, so I tinkered up a quick-and-dirty adapter to put the drag knife “pen” body into the MPCNC’s standard DW660 router holder:

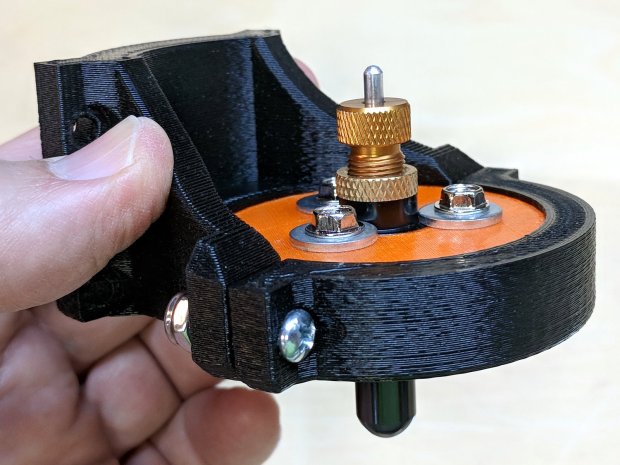

MPCNC - DW660 adapter drag knife holder - fixed position — MPCNC – DW660 adapter drag knife holder – fixed position

That’s using the DW660 adapter upside-down to get the business end of the knife closer to the platform. The solid model descends from the linear-bearing Sakura pen holder by ruthless pruning.

It didn’t work well at all, because you really need a spring for some vertical compliance and control over the downforce pressure.

Back to the Comfy Chair:

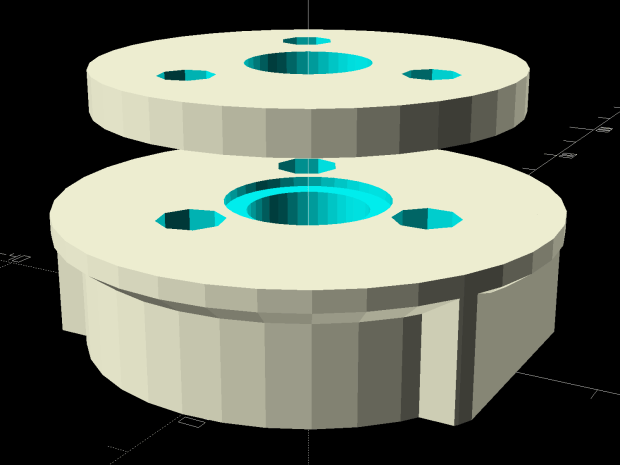

Drag Knife Holder - DW660 Mount - solid model — Drag Knife Holder – DW660 Mount – solid model

A trio of the lightest springs from a 200 piece assortment (in the front left compartment) pushes the upper plate downward against the drag knife’s flange:

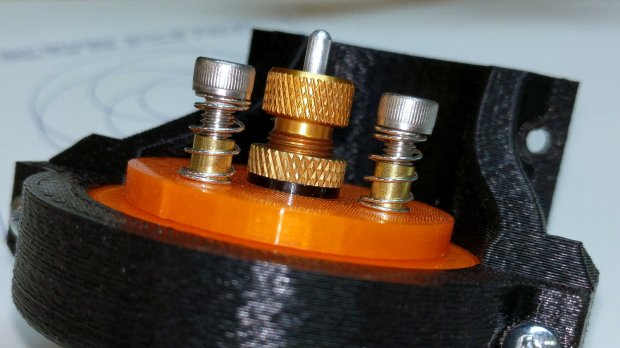

MPCNC - DW660 adapter drag knife holder - spring loaded — MPCNC – DW660 adapter drag knife holder – spring loaded

There’s a bit more going on than may be obvious at first glance.

The screws slide in brass tubing press-fit into the upper plate, because otherwise their threads hang up on the usual 3D printed layers inside the (drilled-out) holes. Smaller free-floating brass tubing snippets inside the springs keep them away from the screw threads; the gap between the top of the tubing and the screw head limits the vertical compliance to 3 mm. The screws thread into brass inserts epoxied into the bottom disk, with a dab of low-strength Loctite for stay-put adjustment.

I bored the orange PETG disk to a nice slip fit around the knife body:

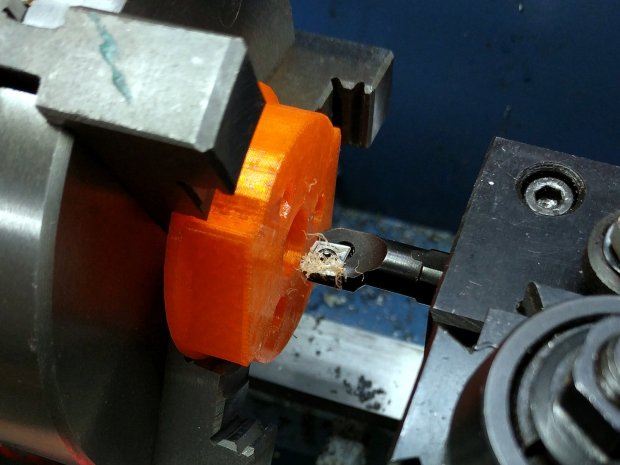

DW660 drag knife holder - boring body — DW660 drag knife holder – boring body

The upper plate also required fitting:

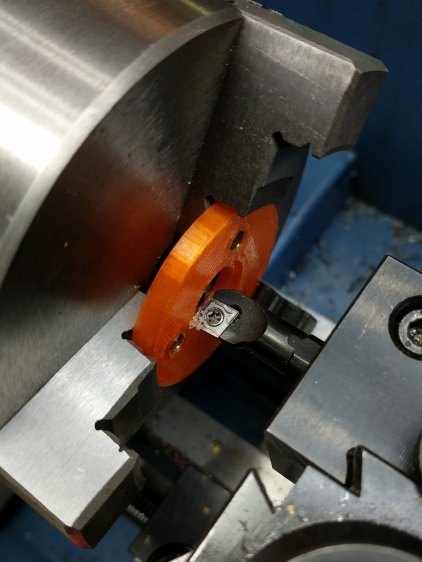

DW660 drag knife holder - boring plate — DW660 drag knife holder – boring plate

A few iterations produced reasonably smooth motion over a few millimeters, but it’s definitely not a low-friction / low-stiction drag knife holder. It ought to be good for some proof-of-concept vinyl cutting, though.

The OpenSCAD source code as a GitHub Gist:

	// Drag Knife Holder for DW660 Mount
	// Ed Nisley KE4ZNU – 2018-09-26

	Layout = "Show"; // Build, Show, Puck, Mount, Plate

	/* [Extrusion] */

	ThreadThick = 0.25; // [0.20, 0.25]
	ThreadWidth = 0.40; // [0.40]

	/* [Hidden] */

	Protrusion = 0.1; // [0.01, 0.1]

	HoleWindage = 0.2;

	inch = 25.4;

	function IntegerMultiple(Size,Unit) = Unit * ceil(Size / Unit);

	ID = 0;
	OD = 1;
	LENGTH = 2;

	//- Adjust hole diameter to make the size come out right

	module PolyCyl(Dia,Height,ForceSides=0) { // based on nophead's polyholes
	Sides = (ForceSides != 0) ? ForceSides : (ceil(Dia) + 2);
	FixDia = Dia / cos(180/Sides);
	cylinder(r=(FixDia + HoleWindage)/2,h=Height,$fn=Sides);
	}

	//- Dimensions

	KnifeBody = [12.0,16.0,2.0]; // body flange — resembles HP plotter pen

	WallThick = 3.0; // minimum thickness / width

	Screw = [4.0,8.5,8.0]; // holding it all together, OD = washer

	Insert = [4.0,6.0,10.0]; // brass insert

	Plate = [KnifeBody[ID],KnifeBody[OD] + 3*Screw[OD],4.0]; // spring reaction plate
	PlateGuide = [4.0,4.8,Plate[LENGTH]]; // … guide tubes

	NumScrews = 3;

	ScrewBCD = 2*(KnifeBody[OD]/2 + Screw[OD]/2 + 0.5);

	NumSides = 9*4; // cylinder facets (multiple of 3 for lathe trimming)

	// Basic shape of DW660 snout fitting into the holder
	// Lip goes upward to lock into MPCNC mount

	Snout = [44.6,50.0,9.6]; // LENGTH = ID height
	Lip = 4.0; // height of lip at end of snout
	PuckOAL = Snout[LENGTH] + Lip; // total height

	Key = [Snout[ID],25.7,PuckOAL]; // rectangular key

	module DW660Puck() {

	translate([0,0,PuckOAL])
	rotate([180,0,0]) {
	cylinder(d=Snout[OD],h=Lip/2,$fn=NumSides);
	translate([0,0,Lip/2])
	cylinder(d1=Snout[OD],d2=Snout[ID],h=Lip/2,$fn=NumSides);
	cylinder(d=Snout[ID],h=PuckOAL,$fn=NumSides);
	intersection() {
	translate([0,0,0*Lip + Key.z/2])
	cube(Key,center=true);
	cylinder(d=Snout[OD],h=Lip + Key.z,$fn=NumSides);
	}
	}
	}

	module MountBase() {

	difference() {
	DW660Puck();

	translate([0,0,-Protrusion]) // knife holder body
	PolyCyl(KnifeBody[ID],2*PuckOAL,NumSides);

	translate([0,0,PuckOAL – KnifeBody[LENGTH]/2]) // … half of flange, loose fit
	PolyCyl(KnifeBody[OD] + 2*HoleWindage,KnifeBody[LENGTH],NumSides);

	for (i=[0:NumScrews – 1]) // clamp screws
	rotate(i*360/NumScrews)
	translate([ScrewBCD/2,0,-Protrusion])
	rotate(180/8)
	PolyCyl(Insert[OD],2*PuckOAL,8);
	}
	}

	module SpringPlate() {
	difference() {
	cylinder(d=Plate[OD],h=Plate[LENGTH],$fn=NumSides);

	translate([0,0,-Protrusion]) // knife holder body
	PolyCyl(KnifeBody[ID],2*PuckOAL,NumSides);

	translate([0,0,Plate[LENGTH] – KnifeBody[LENGTH]/2]) // … half of flange, snug fit
	PolyCyl(KnifeBody[OD],KnifeBody[LENGTH],NumSides);

	for (i=[0:NumScrews – 1]) // clamp screws
	rotate(i*360/NumScrews)
	translate([ScrewBCD/2,0,-Protrusion])
	rotate(180/8)
	PolyCyl(PlateGuide[OD],2*PuckOAL,8);
	}
	}

	//—–
	// Build it

	if (Layout == "Puck")
	DW660Puck();

	if (Layout == "Plate")
	SpringPlate();

	if (Layout == "Mount")
	MountBase();

	if (Layout == "Show") {
	MountBase();
	translate([0,0,2*PuckOAL])
	rotate([180,0,0])
	SpringPlate();
	}

	if (Layout == "Build") {
	translate([0,Snout[OD]/2,0])
	MountBase();
	translate([0,-Snout[OD]/2,0])
	SpringPlate();
	}

view raw Drag Knife Holder – DW660 Mount.scad hosted with ❤ by GitHub
