  • Squidwrench Electronics Workshop: Session 6 Whiteboards

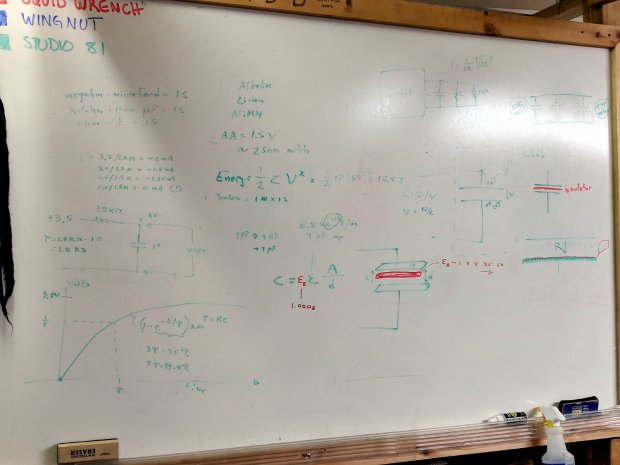

    Coverage of capacitors as charge-storage devices, rather than filters:

    Session 6 - Whiteboard 1 - overview
    Session 6 – Whiteboard 1 – overview

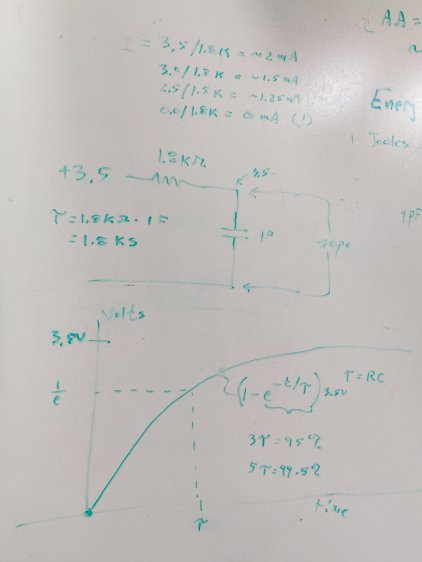

    We avoided all the calculus and derivations, taking the exponential waveform as a given for RC circuits:

    Session 6 - Whiteboard 1 - exponential detail
    Session 6 – Whiteboard 1 – exponential detail

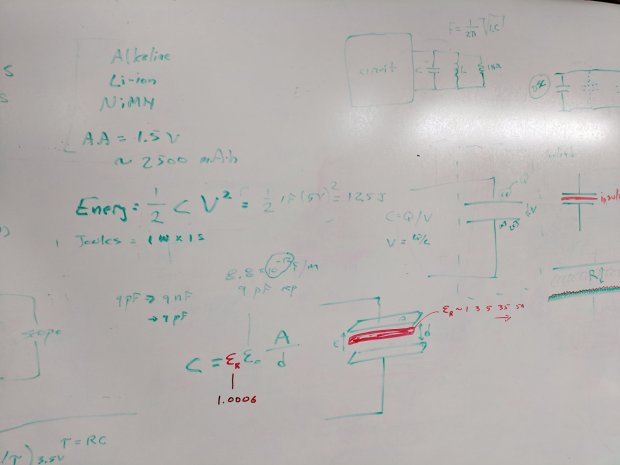

    Discussions of dielectrics, plate spacing / area, and suchlike:

    Session 6 - Whiteboard 1 - dielectric permittivity
    Session 6 – Whiteboard 1 – dielectric permittivity

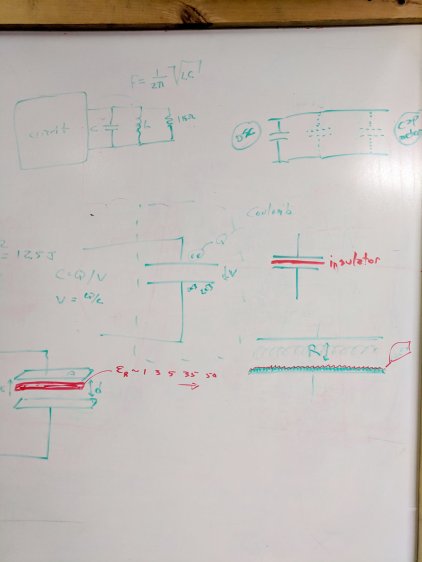

    Some handwaving discussion of construction, electrolytic capacitor innards, and The Plague:

    Session 6 - Whiteboard 1 - cap construction
    Session 6 – Whiteboard 1 – cap construction

    A 1 F cap charged through a 1.8 kΩ resistor during most of the session to show what an 1800 s time constant looked like. Nope, it never quite got to the 3.5 V from the power supply, even when we all decided it was time to shut down!
