Squidwrench Electronics Workshop: Session 4

Ex post facto notes from the fourth Squidwrench Electronics Workshop.

We finally talk about (bipolar, NPN) transistors as current-controlled current sources / sinks, ruthlessly restricted to DC operating conditions.

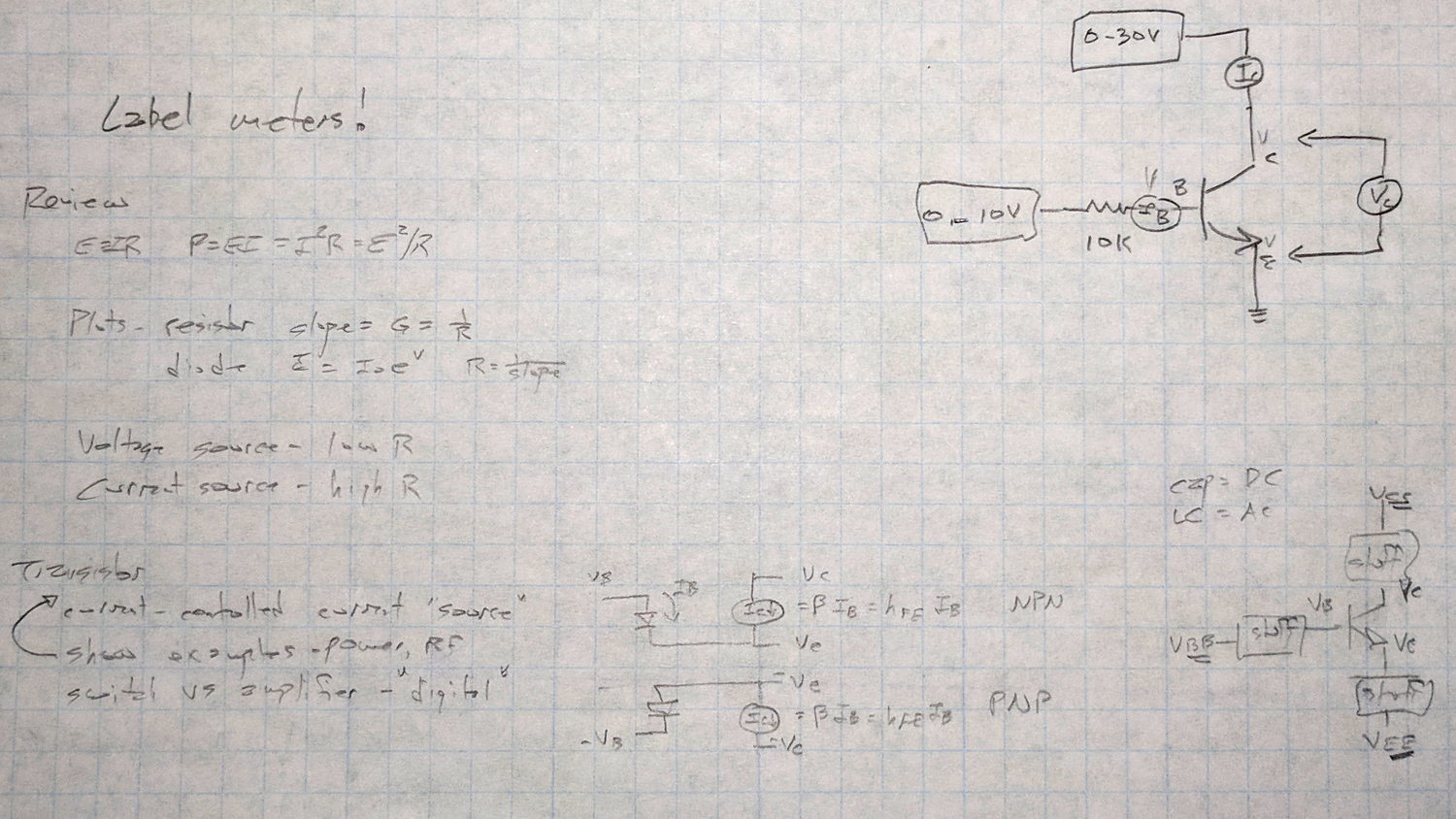

Scribbled notes of things to cover, contrast-stretched to be slightly more readable:

Session 4 - plan reminder

Session 4 – plan reminder

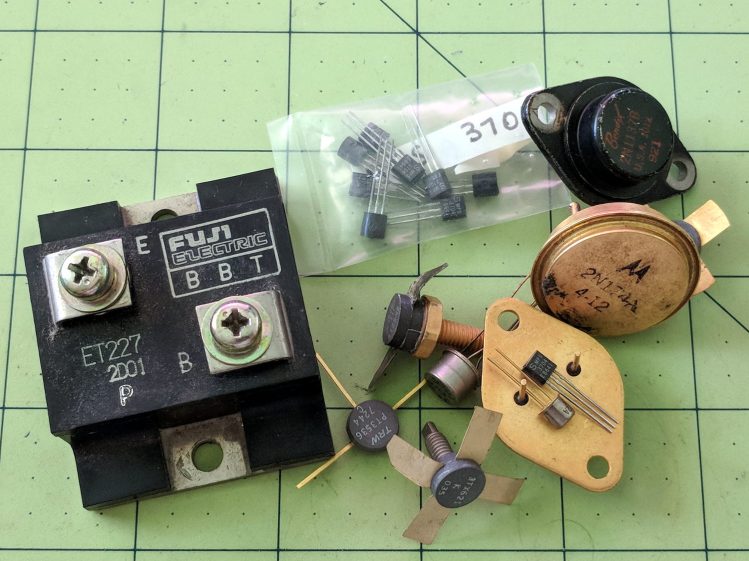

A bag o’ samples:

Session 4 - transistor samples

Session 4 – transistor samples

Nomenclature, regret expressed as to conventional vs electron current flow, schematic pictures vs. reality, why different packages. All six possible pinouts loose in the wild: always check datasheet and confirm device pin polarity.

Not all TO-92 packages contain transistors: voltage regulators, references, AM receivers, dual diodes, you name it, you’ll find it. When you order a million of something, you can get whatever you want.

The Squidwrench junk box parts drawers contain some genuine Mil-Spec 2N2222 transistors in genuine TO-18 metal cans, packed in individual containers labeled with their warranty expiration date. They still make ’em like that, just not for the likes of mere mortals such as I.

Reading data sheets and tamping down optimism: (large print) max voltage and max current ratings always limited by (small print) max power dissipation. Safe Operating Area bounded by datasheet limits, power becomes graceful curve on linear scales = straight line on log-log scales. Handwaving description of secondary breakdown issues, story about killing those ET227 bricks.

DC current gain β = hFE, font flourish catastrophes, uppercase subscripts = DC vs. lowercase = AC, temperature dependence, process dependence, expected spread = don’t count on any particular values.

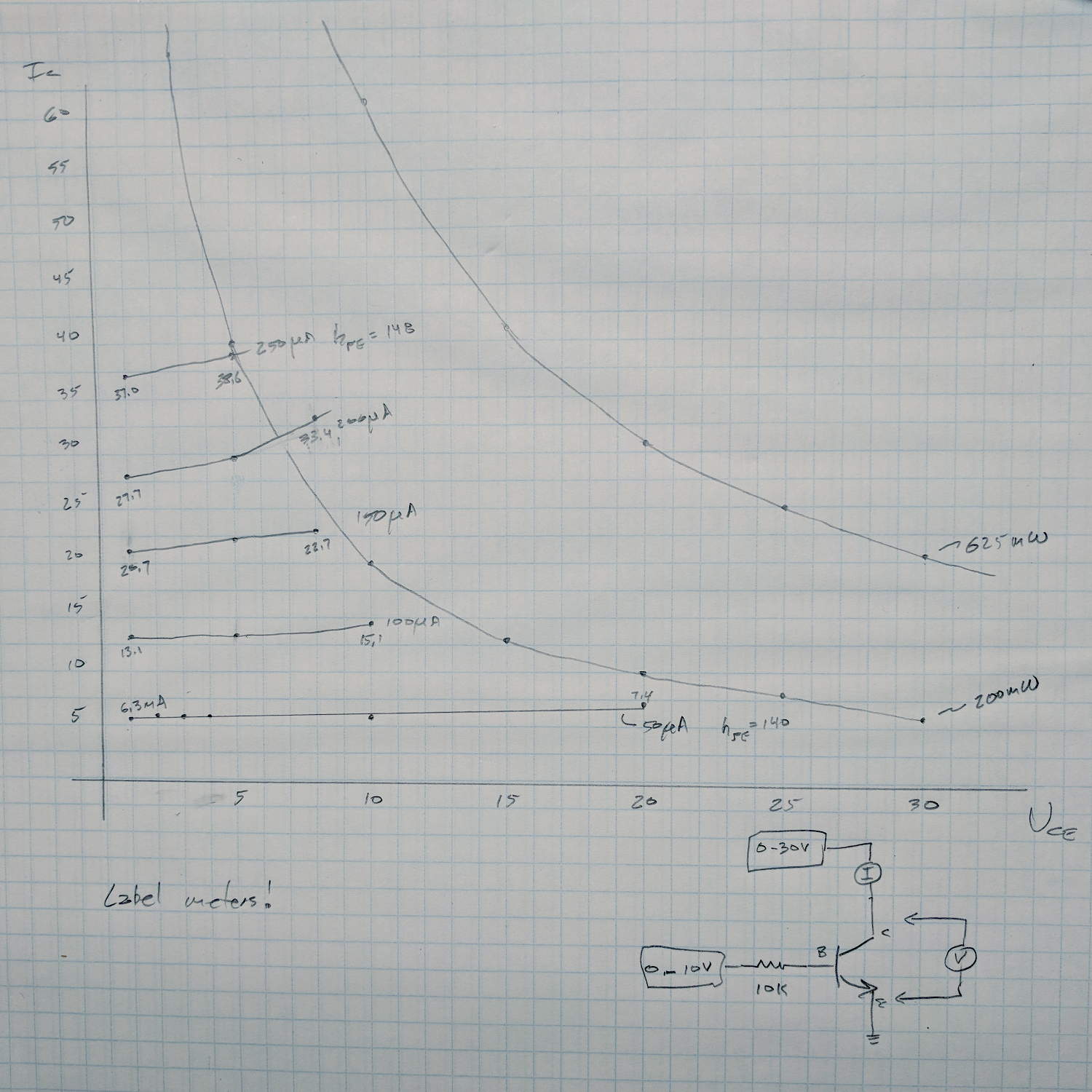

Just to show what the results should look like, I measured an MPS3704 by hand before class:

MPS3704 transistor I vs V plots

MPS3704 transistor I vs V plots

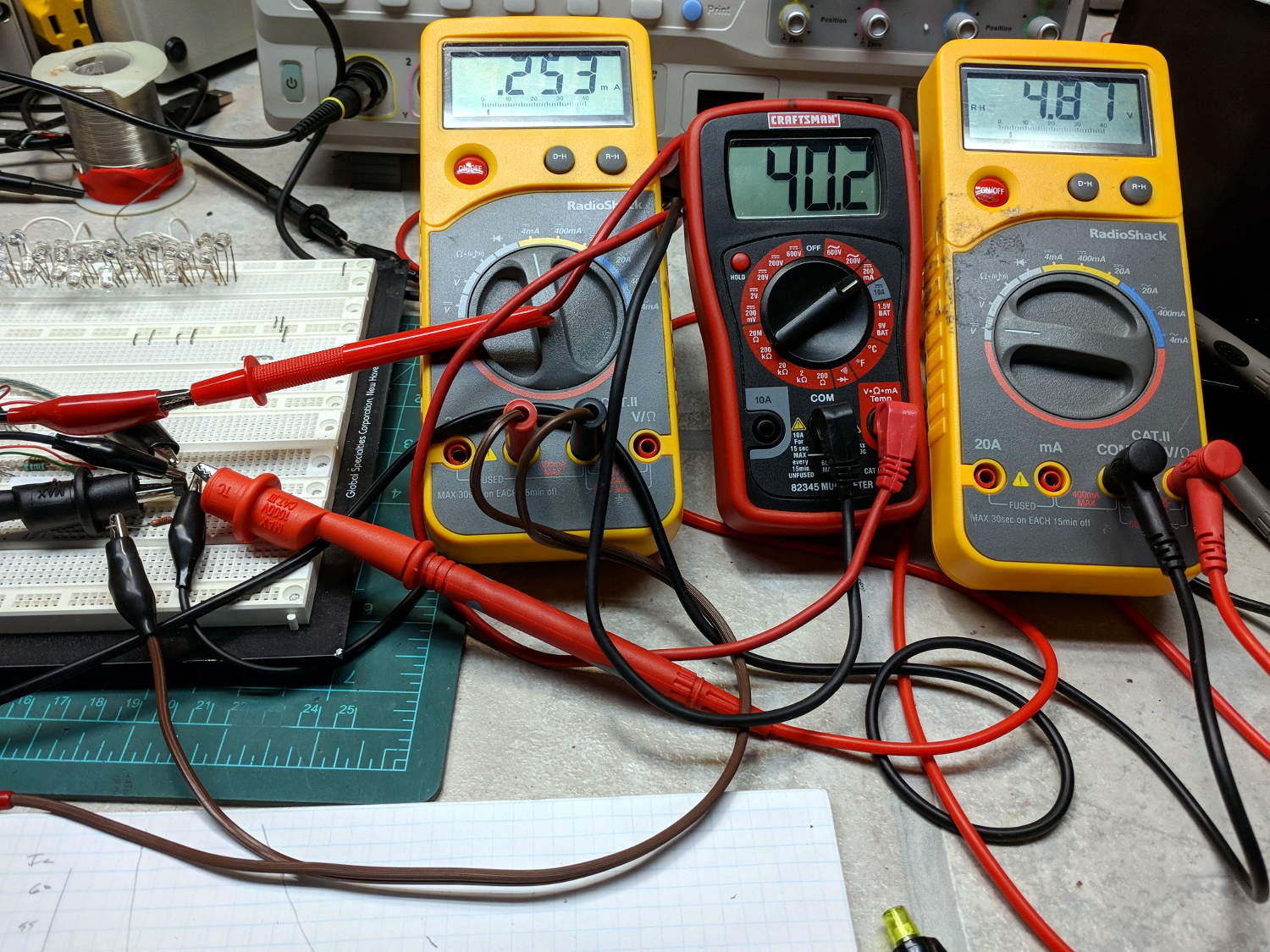

Which required two power supplies and three meters:

Session 4 - transistor measurement meters

Session 4 – transistor measurement meters

Which, in turn, prompted me to festoon the class meters with conspicuous masking tape labels!

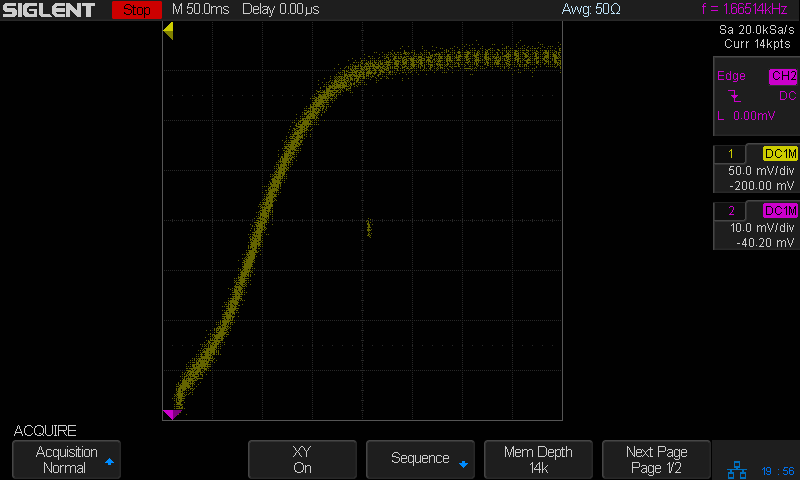

Seen a bit closer to the origin, with a fixed 100 μA base current and the scope’s arbitrary function generator producing a voltage ramp:

MPS3704 - 100uA base 2mA-div IC 50mV-div VC

MPS3704 – 100uA base 2mA-div IC 50mV-div VC

Obviously, you’ll want automation when you do this more than once.

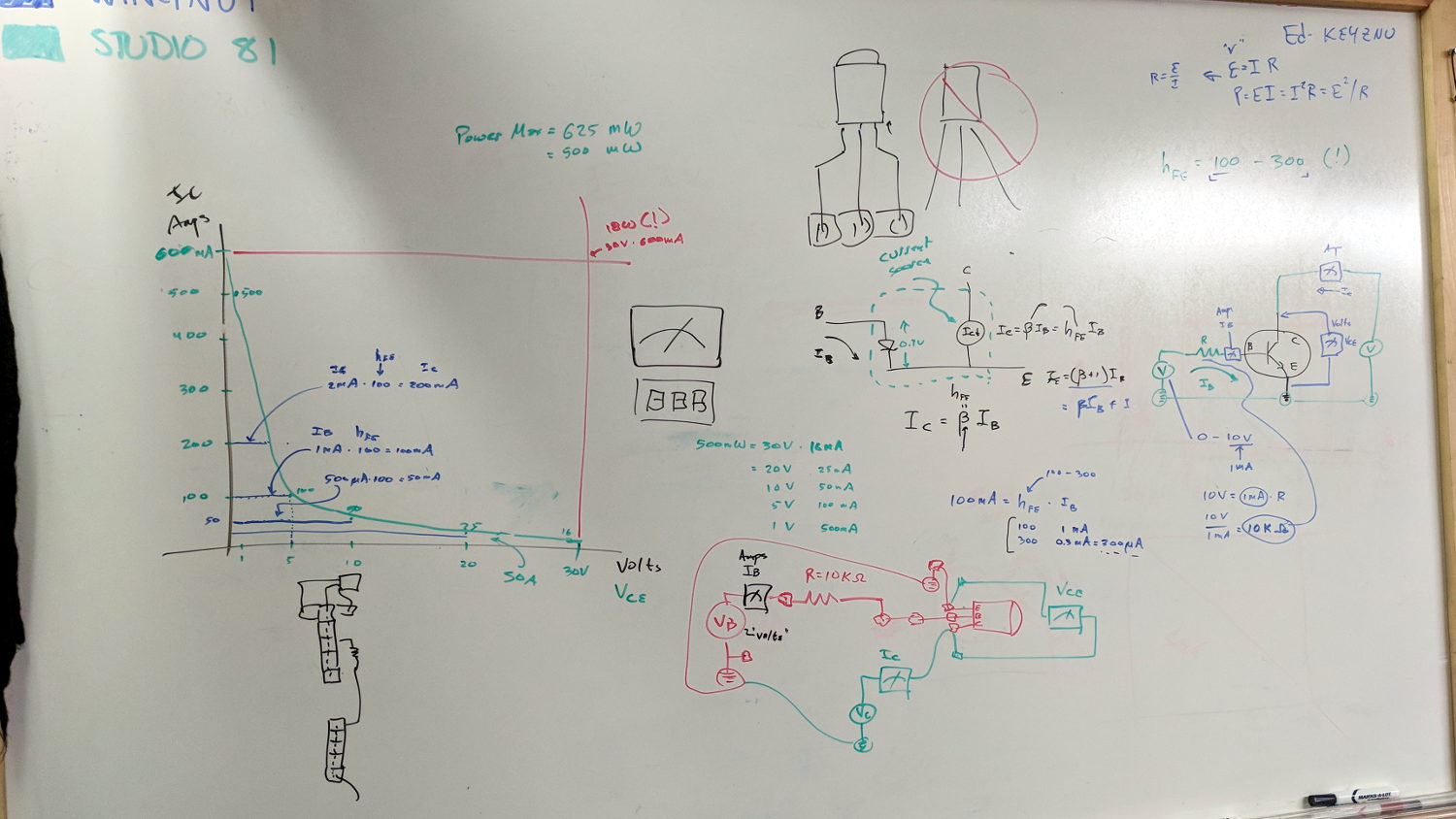

The whiteboard of introductory scribbles, with a plot of expected results:

Whiteboard - Session 4 - transistor I vs V plot

Whiteboard – Session 4 – transistor I vs V plot

Small values of collector voltage to remain within allowable power dissipation! Discussion of switching behavior: high current at low voltage, low current at high voltage, avoid crossing the non-SOA (pulse vs DC) expanse, another mention of secondary breakdown.

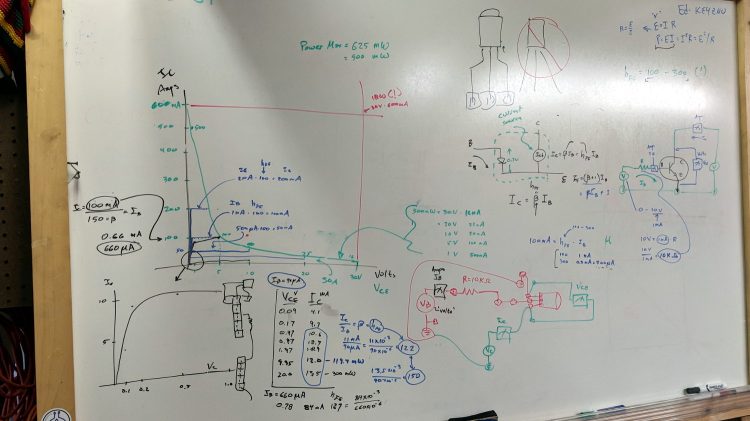

After painstakingly measuring another MPS3704, compute actual current gain(s) and power dissipation:

Whiteboard - Session 4 - transistor measurements

Whiteboard – Session 4 – transistor measurements

With data in hand, we carefully increased the collector voltage with constant base current, ventured slowly into the non-SOA, and eventually measured the same base current producing no collector current at all. No smoke, much to the disappointment of all parties.

The benefit of actually measuring a (sacrificial) transistor cannot be overstated. Lots of baling-wire setup, plenty of mistakes and fumbles, hard lessons in how difficult it is to get useful numbers.

A good time was had by all, despite the absence of non-SOA smoke …
