  • Nichicon SMD Electrolytic Capacitor Polarity

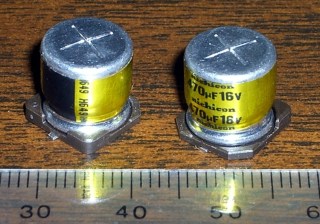

    Nichicon electrolytic capacitors
    Nichicon electrolytic capacitors

    This should be obvious, but isn’t. The black bar marks the negative terminal and the corner-cut side of the base marks the positive terminal.

    How much would it cost to put little hyphens down the middle of the black bar?

    The data sheet for a related, not identical, series of caps is there.
