The New Hotness

Although those pink clamp plates worked well enough, they did not provide, shall we say, a completely satisfactory user experience. I reprinted new sets in red while varying the extruder speed by 0.1 rev/min, with small tweaks to the overlap between the infill and the loop threads.

First, the big pictures with details scrawled on the back of the lower plate…

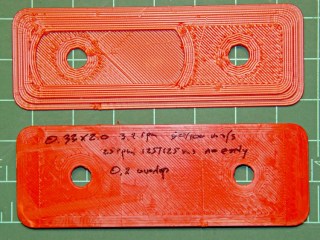

At 3.2 rpm, which is only slightly too fast:

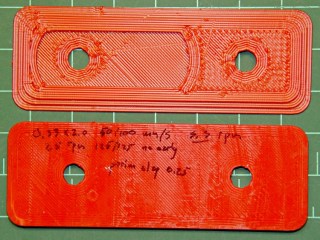

At 3.3 rpm, a bit overstuffed:

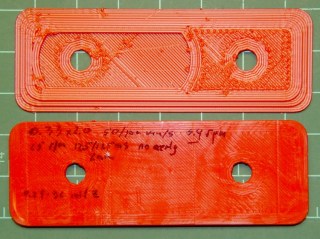

At 3.4 rpm, there’s obviously too much plastic:

Some closeups, in the same order…

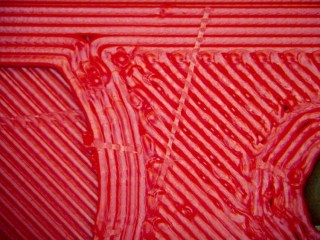

At 3.2 rpm with 0.20 overlap, it looks OK:

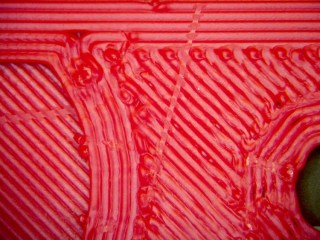

At 3.3 rpm with 0.25 overlap, which pretty much devours the inner loop thread:

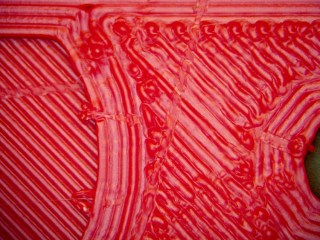

At 3.4 rpm with 0.25 overlap there’s serious overfill:

In all cases, the extruder left a track while exiting upward from near the middle of the images. Even at 3. 2 rpm there’s slightly too much plastic.

My ladies don’t care about the fine details. They prefer red to pink and the clamps hold the fairings firmly in place…
