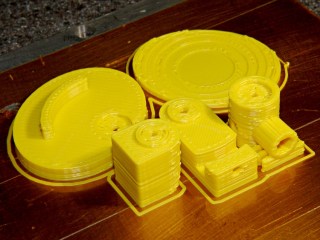

Printing went smoothly after two preliminary passes to work out the sizes and alignments; this is the second pass, which you can tell because the mirror shoulder has three supports instead of the two shown in the solid model:

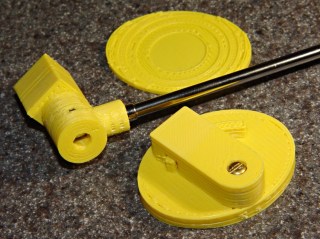

One view of the parts, with the mirror shaft in place:

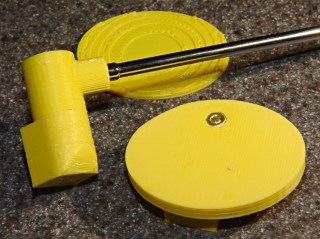

Another view, showing the bottom of the Elevation Plate with the recessed nut:

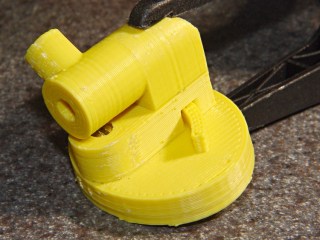

Assembling the two glue joints required an overnight clamping:

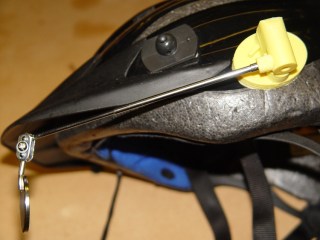

Then a layer of double-stick foam tape affixes it firmly to the helmet:

It’s a bit too big and way ugly, but works pretty much as expected.

Two lengths of heatshrink tubing now lock the mirror shaft sections in place; they tended to rotate slightly under normal vibration.

The OpenSCAD code and model have a few modifications from this object. The next one won’t have the third section of mirror shaft, which makes the shoulder and Az Mount smaller, and the Az Mount is 1 mm closer to the El Body. That shaves a few millimeters off the whole thing.

The mirror clamp out there on the end is much too large and has too many fiddly parts. I think a little printed doodad would work, but that’s in the nature of fine tuning.
