  • HT GPS+Voice: Battery Contacts

    For this version of the contacts (the old version is there) that make the GPS interface look like a standard Wouxun lithium battery, I left a bit more of the slot on the brass screw heads and increased the recess depth to compensate:

    HT-GPS Case - Battery contacts
    HT-GPS Case – Battery contacts

    The nuts all have fancy nickel plating, with washers & ring lugs silver-soldered in place:

    HT-GPS PCB - battery contact parts
    HT-GPS PCB – battery contact parts

    The trial fit looks OK:

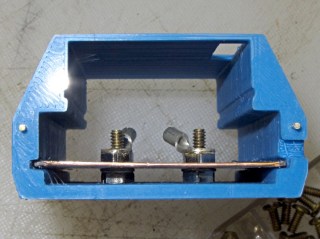

    HT-GPS Case - PCB and battery contacts - end view
    HT-GPS Case – PCB and battery contacts – end view

    I even found the cutest little flat 1/4 inch wrench that fits 4-40 nuts, so I can do a better job of crunching the PCB between the nuts. That excess screw length has got to go, too…
