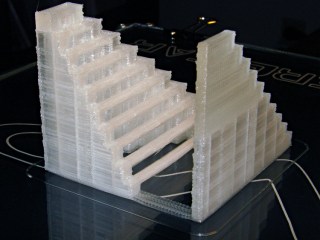

The overhang quality is on the low side of OK, but that’s without any particular configuration tweaking:

M2 - Overhang test - overhang view — M2 – Overhang test – overhang view

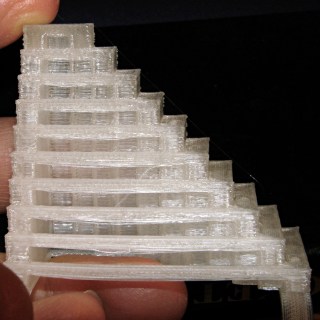

A few strands didn’t quite anchor to the far side of the overhang opening and hang down inside:

M2 - Overhang test - overhang detail — M2 – Overhang test – overhang detail

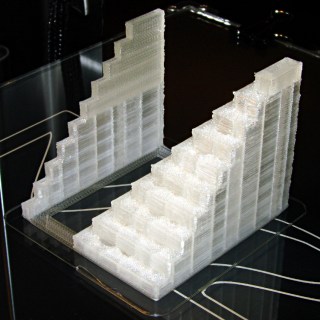

Curiously, the slab on the other side transitioned from the usual 0.10 honeycomb fill to completely solid about half way up:

M2 - Overhang test - slab view — M2 – Overhang test – slab view

As with all the other objects, there’s no stringing or oozing. Looks good to me!

The slic3r configuration, which doesn’t show the bridge speed of 100 mm/s:

; generated by Slic3r 0.9.8 on 2013-04-08 at 19:55:09

; layer_height = 0.25
; perimeters = 1
; top_solid_layers = 3
; bottom_solid_layers = 3
; fill_density = 0.10
; perimeter_speed = 100
; infill_speed = 200
; travel_speed = 500
; scale = 1
; nozzle_diameter = 0.35
; filament_diameter = 1.70
; extrusion_multiplier = 0.9
; perimeters extrusion width = 0.40mm
; infill extrusion width = 0.40mm
; first layer extrusion width = 0.39mm

The OpenSCAD source came directly from Starno’s object on Thingiverse.
