  • LED Sign Display Driver Glitch

    Spotted this while walking out for supper after a day at the CNC Workshop:

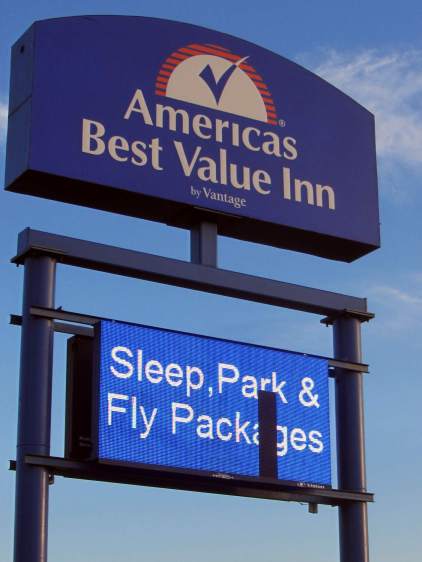

    Motel LED sign glitch - 1
    Motel LED sign glitch – 1

    Then it got worse:

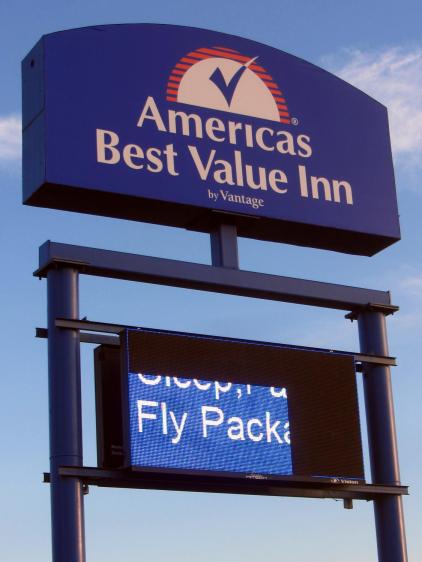

    Motel LED sign glitch - 2
    Motel LED sign glitch – 2

    The lower left block remained fixed throughout the glitzy scrolling / rolling / blinking updates in the sign’s repertoire:

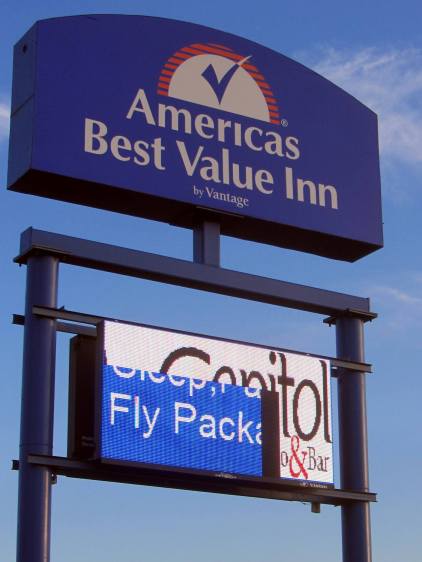

    Motel LED sign glitch - 3
    Motel LED sign glitch – 3

    The affected block is 64 pixels tall and, at a guess, 128 pixels wide. Looks like a module enable failure…
