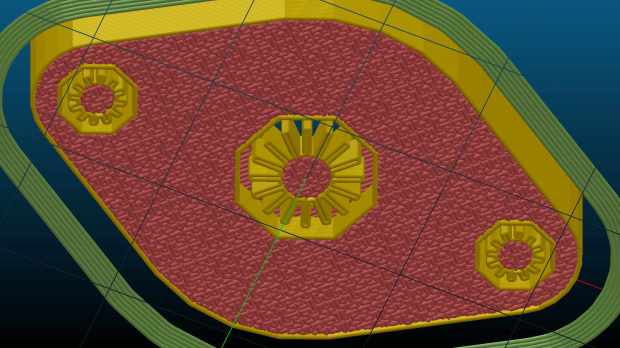

Replacing the hex nut traps with knurled insert cylinders slims the ends of the socket:

Noval Socket - knurled inserts - bottom - Slic3r preview — Noval Socket – knurled inserts – bottom – Slic3r preview

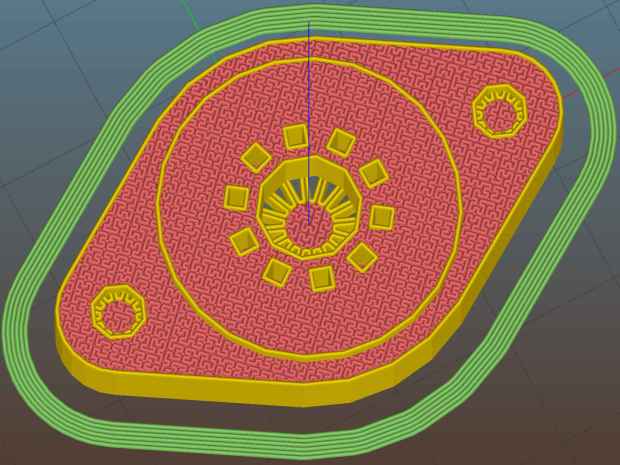

Making the raised part of the socket fit the 25 mm ID of a hard drive platter swells the midsection of the socket~~, but the platter won’t need any machining or punching~~:

Noval Socket - knurled inserts - top - Slic3r preview — Noval Socket – knurled inserts – top – Slic3r preview

The octal and duodecar sockets will require a punch to open up the platter hole and all sockets require two drilled clearance holes for the screws. Given that I’ll eventually do this on the Sherline, maybe milling the hole for the bigger tubes will be faster & easier than manually punching them.

I moved the screw centers to 35 mm (from the historically accurate 28 mm) to accommodate the larger center, not that anybody will ever notice, and enlarged the central hole to 7.5 mm (from 5.0 mm) to let more light into the tube base.

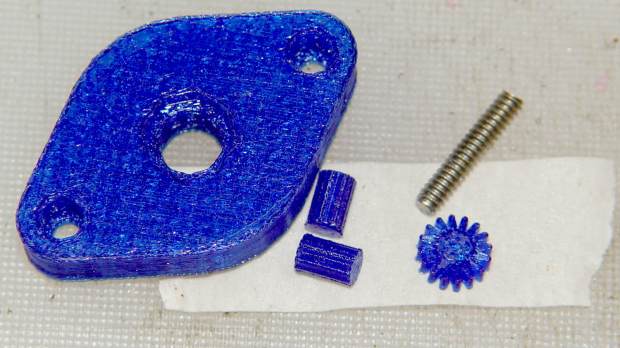

The support structures inside the (now much smaller) knurled insert cylinders might not be strictly necessary, but I left them in place to see how well they built. Which was perfectly, as it turns out, and they popped out with a slight push:

Noval socket - knurled inserts - support structures — Noval socket – knurled inserts – support structures

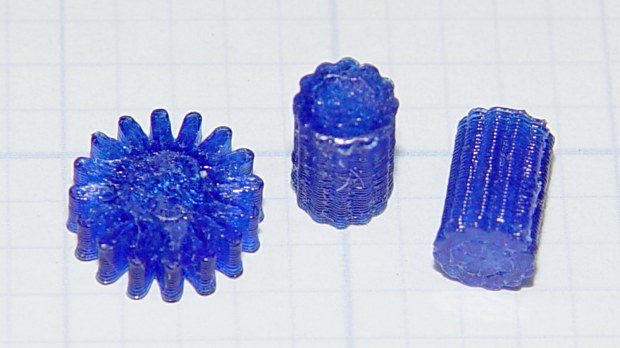

They’re just the cutest little things (those are 0.100 inch grid squares in the background):

Noval socket - support structures — Noval socket – support structures

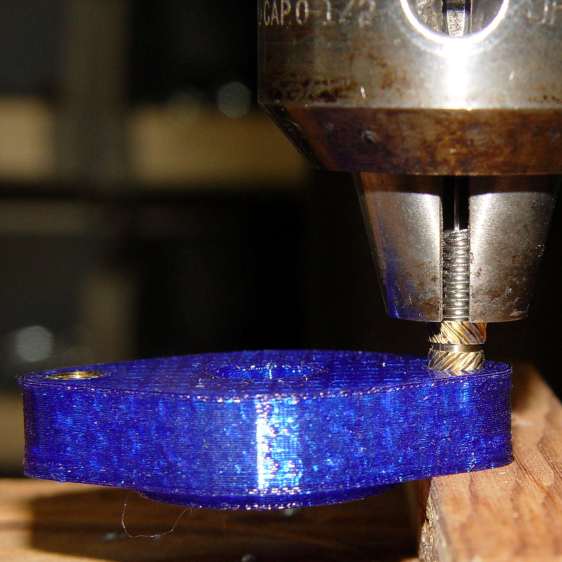

Anyhow, the knurled inserts pressed into their holes with a slight shove:

Noval socket - installing knurled insert — Noval socket – installing knurled insert

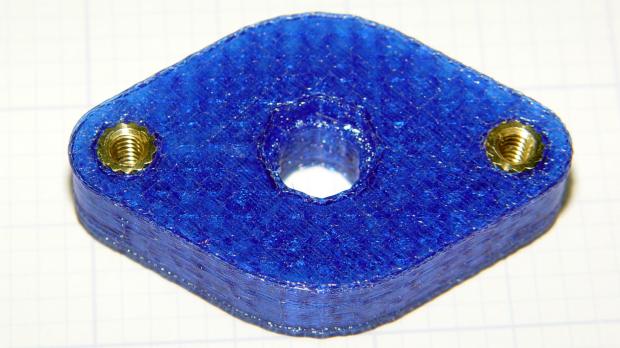

The chuck jaws were loose on the screw cutoff stud and stopped at the surface, putting the knurled inserts perfectly flush with the socket:

Noval socket - knurled inserts - installed — Noval socket – knurled inserts – installed

The surface looks very slightly distorted around the inserts, although it’s still smooth to the touch, and I think the PETG will slowly relax around the knurls. Even without heat or epoxy, they’re now impossible to pull out with any force I’m willing to apply to the screws threaded into them. Given that the platter screws will (be trying to) pull the inserts through the socket, I think a dry install will suffice for my simple needs.

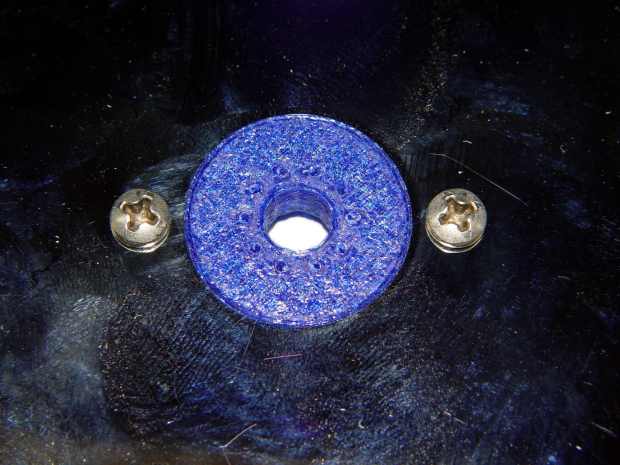

Match-mark, drill #27 6-32 clearance holes, and the screws drop right in:

Noval socket - installed — Noval socket – installed

Those stainless steel pan-head 6-32 screws seem a bit large in comparison with the socket. Perhaps I should use 4-40 screws, even though they’re not, ahem, historically accurate.

The tube pin holes get hand-reamed with a #53 drill = 1.5 mm. That’s a bit over the nominal 1.1 mm pin diameter, but seems to provide both easy insertion and firm retention. For permanent installation, an adhesive would be in order.

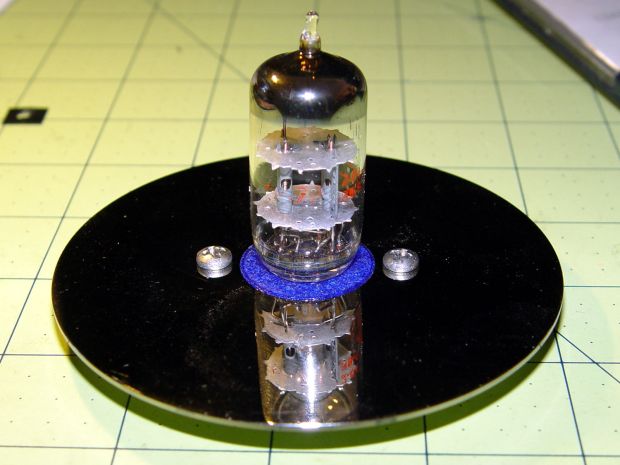

Buff off the fingerprints, stick the tube in place, and it looks pretty good:

Noval socket - tube on platter — Noval socket – tube on platter

Yeah, those screws are too big. Maybe a brace of black M3 socket head screws would look better, despite a complete lack of historicity.

Now to wire it up and ponder how to build a base.

The OpenSCAD source code as a GitHub Gist:

	// Vacuum Tube LED Lights
	// Ed Nisley KE4ZNU February 2016

	Layout = "Socket"; // Cap LampBase USBPort Socket(s) (Build)FinCap
	DefaultSocket = "Noval";

	Section = false; // cross-section the object

	Support = true;

	//- Extrusion parameters must match reality!

	ThreadThick = 0.25;
	ThreadWidth = 0.40;

	HoleWindage = 0.2;

	Protrusion = 0.1; // make holes end cleanly

	inch = 25.4;

	function IntegerMultiple(Size,Unit) = Unit * ceil(Size / Unit);

	//———————-
	// Dimensions
	// https://en.wikipedia.org/wiki/Tube_socket#Summary_of_Base_Details
	// punch & screw OC modified for drive platter chassis plate
	// platter = 25 mm ID

	T_NAME = 0; // common name
	T_NUMPINS = 1; // total, with no allowance for keying
	T_PINBCD = 2; // tube pin circle diameter
	T_PINOD = 3; // … diameter
	T_PINLEN = 4; // … length (overestimate)
	T_HOLEOD = 5; // nominal panel hole from various sources
	T_PUNCHOD = 6; // panel hole optimized for inch-size Greenlee punches
	T_TUBEOD = 7; // envelope or base diameter
	T_PIPEOD = 8; // light pipe from LED to tube base
	T_SCREWOC = 9; // mounting screw holes

	// Name pins BCD dia length hole punch env pipe screw
	TubeData = [
	["Mini7", 8, 9.53, 1.016, 7.0, 16.0, 25.0, 18.0, 5.0, 35.0], // punch 11/16, screw 22.5 OC
	["Octal", 8, 17.45, 2.36, 10.0, 36.2, (8 + 1)/8 * inch, 32.0, 11.5, 39.0],
	["Noval", 10, 11.89, 1.1016, 7.0, 22.0, 25.0 , 21.0, 7.5, 35.0], // punch 7/8, screw 28.0 OC
	["Duodecar", 13, 19.10, 1.05, 9.0, 32.0, (4 + 1)/4 * inch, 38.0, 12.5, 39.0], // aka Compactron
	];

	ID = 0;
	OD = 1;
	LENGTH = 2;

	Pixel = [7.0,10.0,3.0]; // ID = contact patch, OD = PCB dia, LENGTH = overall thickness

	Nut = [3.5,5.2,7.2]; // socket mounting nut recess — threaded insert
	NutSides = 8;

	BaseShim = 2*ThreadThick; // between pin holes and pixel top
	SocketFlange = 2.0; // rim around socket below punchout
	PanelThick = 1.5; // socket extension through punchout

	FinCutterOD = 1/8 * inch;
	FinCapSize = [(Pixel[OD] + 2FinCutterOD),30.0,(10.0 + 2Pixel[LENGTH])];


	//———————-
	// Useful routines

	module PolyCyl(Dia,Height,ForceSides=0) { // based on nophead's polyholes

	Sides = (ForceSides != 0) ? ForceSides : (ceil(Dia) + 2);

	FixDia = Dia / cos(180/Sides);

	cylinder(r=(FixDia + HoleWindage)/2,h=Height,$fn=Sides);
	}

	//———————-
	// Tube cap

	CapTube = [4.0,3/16 * inch,10.0]; // brass tube for flying lead to cap LED

	CapSize = [Pixel[ID],(Pixel[OD] + 3.0),(CapTube[OD] + 2*Pixel[LENGTH])];

	CapSides = 6*4;

	module Cap() {

	difference() {
	union() {
	cylinder(d=CapSize[OD],h=(CapSize[LENGTH]),$fn=CapSides); // main cap body
	translate([0,0,CapSize[LENGTH]]) // rounded top
	scale([1.0,1.0,0.65])
	sphere(d=CapSize[OD]/cos(180/CapSides),$fn=CapSides); // cos() fixes slight undersize vs cylinder
	cylinder(d1=(CapSize[OD] + 23ThreadWidth),d2=CapSize[OD],h=1.5*Pixel[LENGTH],$fn=CapSides); // skirt
	}

	translate([0,0,-Protrusion]) // bore for wiring to LED
	PolyCyl(CapSize[ID],(CapSize[LENGTH] + 3*ThreadThick + Protrusion),CapSides);

	translate([0,0,-Protrusion]) // PCB recess with clearance for tube dome
	PolyCyl(Pixel[OD],(1.5*Pixel[LENGTH] + Protrusion),CapSides);

	translate([0,0,(1.5*Pixel[LENGTH] – Protrusion)]) // small step + cone to retain PCB
	cylinder(d1=(Pixel[OD]/cos(180/CapSides)),d2=Pixel[ID],h=(Pixel[LENGTH] + Protrusion),$fn=CapSides);

	translate([0,0,(CapSize[LENGTH] – CapTube[OD]/(2*cos(180/8)))]) // hole for brass tube holding wire loom
	rotate([90,0,0]) rotate(180/8)
	PolyCyl(CapTube[OD],CapSize[OD],8);
	}

	}

	//———————-
	// Heatsink tube cap


	module FinCap() {

	CableOD = 3.5; // cable + braid diameter
	BulbOD = 3.75 * inch; // bulb OD; use 10 inches for flat

	echo(str("Fin Cutter: ",FinCutterOD));
	FinSides = 2*4;

	BulbRadius = BulbOD / 2;
	BulbDepth = BulbRadius – sqrt(pow(BulbRadius,2) – pow(FinCapSize[OD],2)/4);
	echo(str("Bulb OD: ",BulbOD," recess: ",BulbDepth));

	NumFins = floor(PIFinCapSize[ID] / (2FinCutterOD));
	FinAngle = 360 / NumFins;
	echo(str("NumFins: ",NumFins," angle: ",FinAngle," deg"));

	difference() {
	union() {
	cylinder(d=FinCapSize[ID],h=FinCapSize[LENGTH],$fn=2*NumFins); // main body

	for (i = [0:NumFins – 1]) // fins
	rotate(i * FinAngle)
	hull() {
	translate([FinCapSize[ID]/2,0,0])
	rotate(180/FinSides)
	cylinder(d=FinCutterOD,h=FinCapSize[LENGTH],$fn=FinSides);
	translate([(FinCapSize[OD] – FinCutterOD)/2,0,0])
	rotate(180/FinSides)
	cylinder(d=FinCutterOD,h=FinCapSize[LENGTH],$fn=FinSides);
	}

	rotate(FinAngle/2) // cable entry boss
	translate([FinCapSize[ID]/2,0,FinCapSize[LENGTH]/2])
	cube([FinCapSize[OD]/4,FinCapSize[OD]/4,FinCapSize[LENGTH]],center=true);
	}

	for (i = [1:NumFins – 1]) // fin inner gullets, omit cable entry side
	rotate(i * FinAngle + FinAngle/2) // joint isn't quite perfect, but OK
	translate([FinCapSize[ID]/2,0,-Protrusion])
	rotate(0*180/FinSides)
	cylinder(d=FinCutterOD/cos(180/FinSides),h=(FinCapSize[LENGTH] + 2*Protrusion),$fn=FinSides);

	translate([0,0,-Protrusion]) // PCB recess
	PolyCyl(Pixel[OD],(1.5*Pixel[LENGTH] + Protrusion),FinSides);

	PolyCyl(Pixel[ID],(FinCapSize[LENGTH] – 3*ThreadThick),FinSides); // bore for LED wiring

	translate([0,0,(FinCapSize[LENGTH] – 3ThreadThick – 2CableOD/(2*cos(180/8)))]) // cable inlet
	rotate(FinAngle/2) rotate([0,90,0]) rotate(180/8)
	PolyCyl(CableOD,FinCapSize[OD],8);

	if (BulbOD <= 10.0 * inch) // curve for top of bulb
	translate([0,0,-(BulbRadius – BulbDepth + 2*ThreadThick)]) // … slightly flatten tips
	sphere(d=BulbOD,$fn=16*FinSides);
	}

	}


	//———————-
	// Aperture for USB-to-serial adapter snout
	// These are all magic numbers, of course

	module USBPort() {

	translate([0,28.0])
	rotate([90,0,0])
	linear_extrude(height=28.0)
	polygon(points=[
	[0,0],
	[8.0,0],
	[8.0,4.0],
	// [4.0,4.0],
	[4.0,6.5],
	[-4.0,6.5],
	// [-4.0,4.0],
	[-8.0,4.0],
	[-8.0,0],
	]);
	}


	//———————-
	// Box for Leviton ceramic lamp base

	module LampBase() {

	Bottom = 3.0;
	Base = [4.0inch,4.5inch,20.0 + Bottom];
	Sides = 12*4;

	Retainer = [3.5,11.0,1.0]; // flat fiber washer holding lamp base screws in place

	StudSides = 8;
	StudOC = 3.5 * inch;
	Stud = [Nut[OD], // 6-32 tapped brass insert
	min(15.0,1.5*(Base[ID] – StudOC)/cos(180/StudSides)), // OD = big enough to merge with walls
	(Base[LENGTH] – Retainer[LENGTH])]; // leave room for retainer


	union() {
	difference() {
	rotate(180/Sides)
	cylinder(d=Base[OD],h=Base[LENGTH],$fn=Sides);
	rotate(180/Sides)
	translate([0,0,Bottom])
	cylinder(d=Base[ID],h=Base[LENGTH],$fn=Sides);
	translate([0,-Base[OD]/2,Bottom + 1.2]) // mount on double-sided foam tape
	rotate(0)
	USBPort();
	}
	for (i = [-1,1])
	translate([i*StudOC/2,0,0])
	rotate(180/StudSides)
	difference() {
	cylinder(d=Stud[OD],h=Stud[LENGTH],$fn=StudSides);
	translate([0,0,Bottom])
	PolyCyl(Stud[ID],(Stud[LENGTH] – (Bottom – Protrusion)),6);
	}
	}
	}

	//———————-
	// Tube Socket

	module Socket(Name = DefaultSocket) {

	NumSides = 6*4;

	Tube = search([Name],TubeData,1,0)[0];
	echo(str("Building ",TubeData[Tube][0]," socket"));
	echo(str(" Punch: ",TubeData[ID][T_PUNCHOD]," mm = ",TubeData[ID][T_PUNCHOD]/inch," inch"));
	echo(str(" Screws: ",TubeData[ID][T_SCREWOC]," mm =",TubeData[ID][T_SCREWOC]/inch," inch OC"));

	OAH = Pixel[LENGTH] + BaseShim + TubeData[Tube][T_PINLEN];
	BaseHeight = OAH – PanelThick;

	difference() {
	union() {
	linear_extrude(height=BaseHeight)
	hull() {
	circle(d=(TubeData[Tube][T_PUNCHOD] + 2*SocketFlange),$fn=NumSides);
	for (i=[-1,1])
	translate([i*TubeData[Tube][T_SCREWOC]/2,0])
	circle(d=2.0*Nut[OD],$fn=NumSides);
	}
	cylinder(d=TubeData[Tube][T_PUNCHOD],h=OAH,$fn=NumSides); // boss in chassis punch hole
	}

	for (i=[0:(TubeData[Tube][T_NUMPINS] – 1)]) // tube pins
	rotate(i*360/TubeData[Tube][T_NUMPINS])
	translate([TubeData[Tube][T_PINBCD]/2,0,(OAH – TubeData[Tube][T_PINLEN])])
	rotate(180/4)
	PolyCyl(TubeData[Tube][T_PINOD],(TubeData[Tube][T_PINLEN] + Protrusion),4);

	for (i=[-1,1]) // mounting screw holes & nut traps / threaded inserts
	translate([i*TubeData[Tube][T_SCREWOC]/2,0,-Protrusion]) {
	PolyCyl(Nut[OD],(Nut[LENGTH] + Protrusion),NutSides);
	PolyCyl(Nut[ID],(OAH + 2*Protrusion),NutSides);
	}

	translate([0,0,-Protrusion]) { // LED recess
	PolyCyl(Pixel[OD],(Pixel[LENGTH] + Protrusion),8);
	}

	translate([0,0,(Pixel[LENGTH] – Protrusion)]) { // light pipe
	rotate(180/TubeData[Tube][T_NUMPINS])
	PolyCyl(TubeData[Tube][T_PIPEOD],(OAH + 2*Protrusion),TubeData[Tube][T_NUMPINS]);
	}
	}

	// Totally ad-hoc support structures …

	if (Support) {
	color("Yellow") {
	for (i=[-1,1]) // nut traps
	translate([i*TubeData[Tube][T_SCREWOC]/2,0,(Nut[LENGTH] – ThreadThick)/2])
	for (a=[0:5])
	rotate(a*30 + 15)
	cube([2ThreadWidth,0.9Nut[OD],(Nut[LENGTH] – ThreadThick)],center=true);

	if (Pixel[OD] > TubeData[Tube][T_PIPEOD]) // support pipe only if needed
	translate([0,0,(Pixel[LENGTH] – ThreadThick)/2])
	for (a=[0:7])
	rotate(a*22.5)
	cube([2ThreadWidth,0.9Pixel[OD],(Pixel[LENGTH] – ThreadThick)],center=true);

	}
	}

	}

	//———————-
	// Build it

	if (Layout == "Cap") {
	if (Section)
	difference() {
	Cap();
	translate([-CapSize[OD],0,CapSize[LENGTH]])
	cube([2CapSize[OD],2CapSize[OD],3*CapSize[LENGTH]],center=true);
	}
	else
	Cap();
	}

	if (Layout == "FinCap") {
	if (Section) render(convexity=5)
	difference() {
	FinCap();
	// translate([0,-FinCapSize[OD],FinCapSize[LENGTH]])
	// cube([2FinCapSize[OD],2FinCapSize[OD],3*FinCapSize[LENGTH]],center=true);
	translate([-FinCapSize[OD],0,FinCapSize[LENGTH]])
	cube([2FinCapSize[OD],2FinCapSize[OD],3*FinCapSize[LENGTH]],center=true);
	}
	else
	FinCap();
	}

	if (Layout == "BuildFinCap")
	translate([0,0,FinCapSize[LENGTH]])
	rotate([180,0,0])
	FinCap();

	if (Layout == "LampBase")
	LampBase();

	if (Layout == "USBPort")
	USBPort();

	if (Layout == "Socket")
	if (Section) {
	difference() {
	Socket();
	translate([-100/2,0,-Protrusion])
	cube([100,50,50],center=false);
	}
	}
	else
	Socket();

	if (Layout == "Sockets") {
	translate([0,50,0])
	Socket("Mini7");
	translate([0,20,0])
	Socket("Octal");
	translate([0,-15,0])
	Socket("Duodecar");
	translate([0,-50,0])
	Socket("Noval");
	}

view raw Vacuum Tube Lights.scad hosted with ❤ by GitHub
