The New Hotness

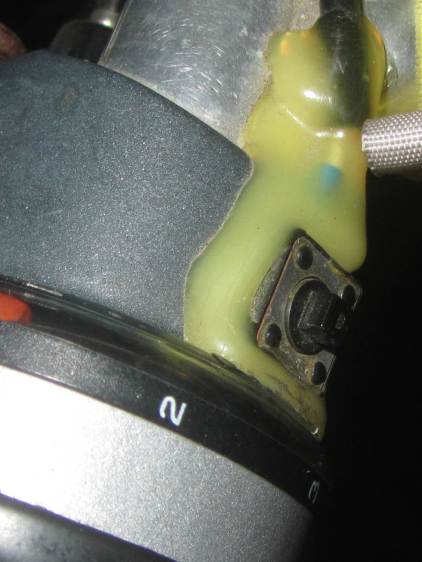

Long ago, Mary picked out a PTT switch with a raised, square post that provided a distinct shape and positive tactile feedback:

Time passes, she dinged her thumb in the garden, and asked for a more rounded button. I have some switches with rounded caps, but replacing the existing switch looked a lot like work, sooooo:

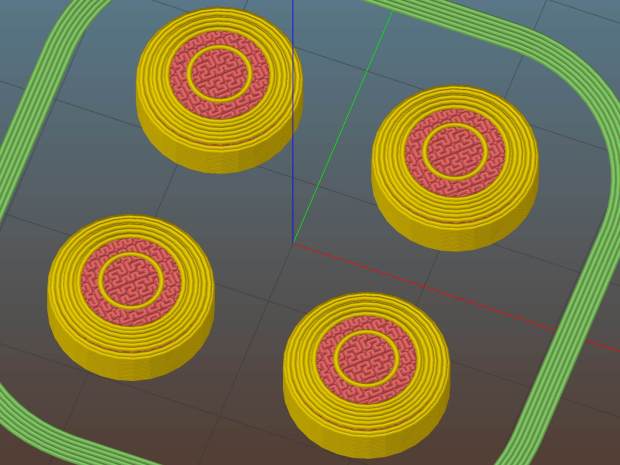

PTT Button Cap - Slic3r preview — PTT Button Cap – Slic3r preview

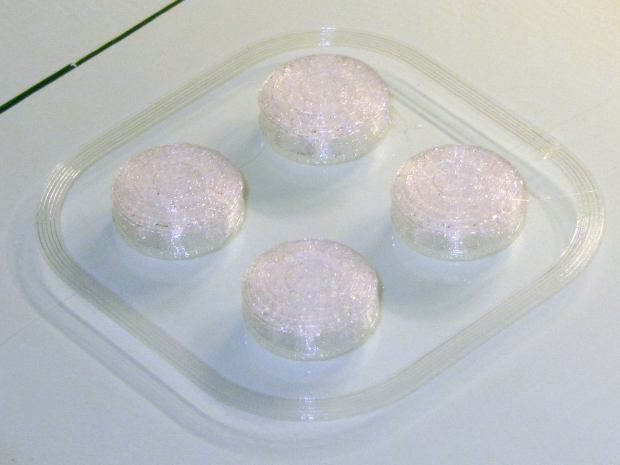

As with all small objects, building them four at a time gives the plastic in each one time to cool before slapping the next layer on top:

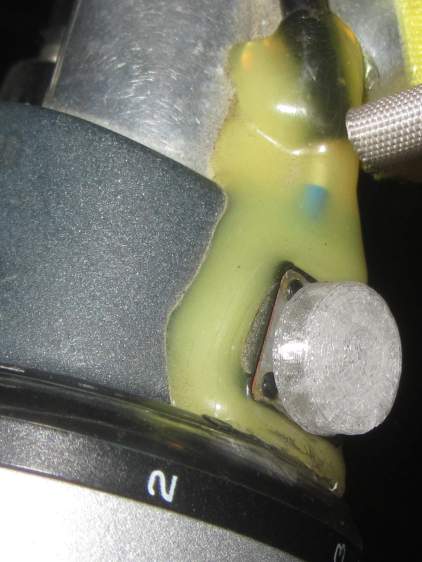

The hole in the cap is 0.2 mm oversize, which results in a snug press fit on the small ridges barely visible around the post in the first image:

Rather than compute the chord covering the surface, I just resized a sphere to twice the desired dome height (picked as 6 threads, just for convenience) and plunked it atop a cylinder. Remember to expand the sphere diameter by 1/cos(180/sides) to make it match the cylinder and force both to have the same number of sides.

If it falls off, I have three backups.

The OpenSCAD source code as a GitHub Gist:

	// PTT Button cap
	// Ed Nisley KE4ZNU – June 2016

	//- Extrusion parameters – must match reality!

	ThreadThick = 0.20;
	ThreadWidth = 0.40;

	Protrusion = 0.1;

	HoleWindage = 0.2;

	//——
	// Dimensions

	Post = [3.8,3.8,3.0];

	OD = 0;
	HEIGHT = 1;
	DOMEHEIGHT = 2;

	Button = [12,0+Post[2],6*ThreadThick];

	NumSides = 8*4;

	//———————-
	//- Build it

	difference() {
	union() {
	translate([0,0,Button[HEIGHT]])
	resize([0,0,2*Button[DOMEHEIGHT]])
	sphere(d=Button[OD]/cos(180/NumSides),$fn=NumSides);
	cylinder(d=Button[OD],h=Button[HEIGHT],$fn=NumSides);
	}

	translate([0,0,Post[2]/2 – Protrusion])
	cube(Post + [HoleWindage,HoleWindage,Protrusion],center=true);
	}

view raw PTT Button Cap.scad hosted with ❤ by GitHub
